RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
  • Nuevo
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro
RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro

RAM® Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro

RAM-101-SAM52CP-PTT1

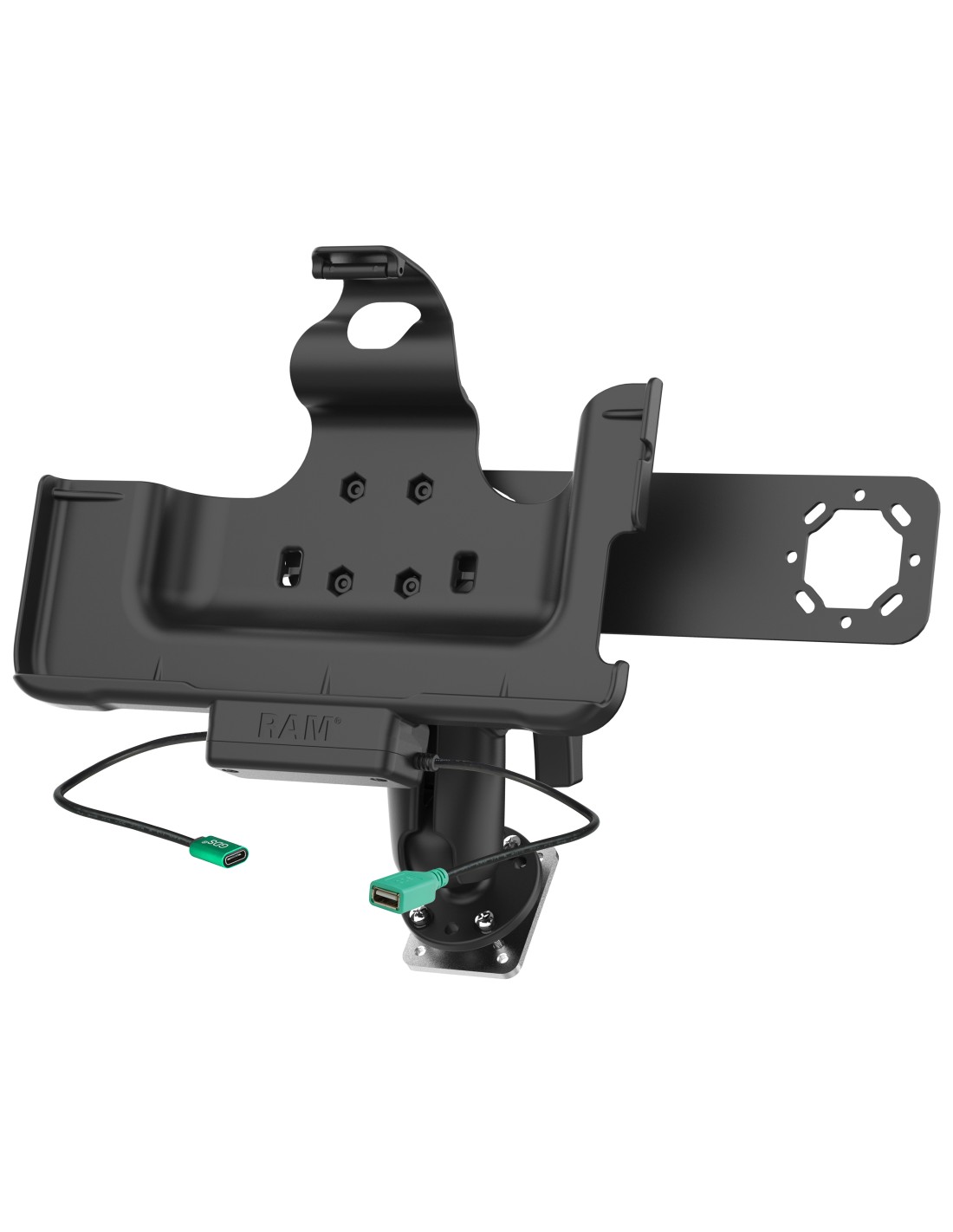

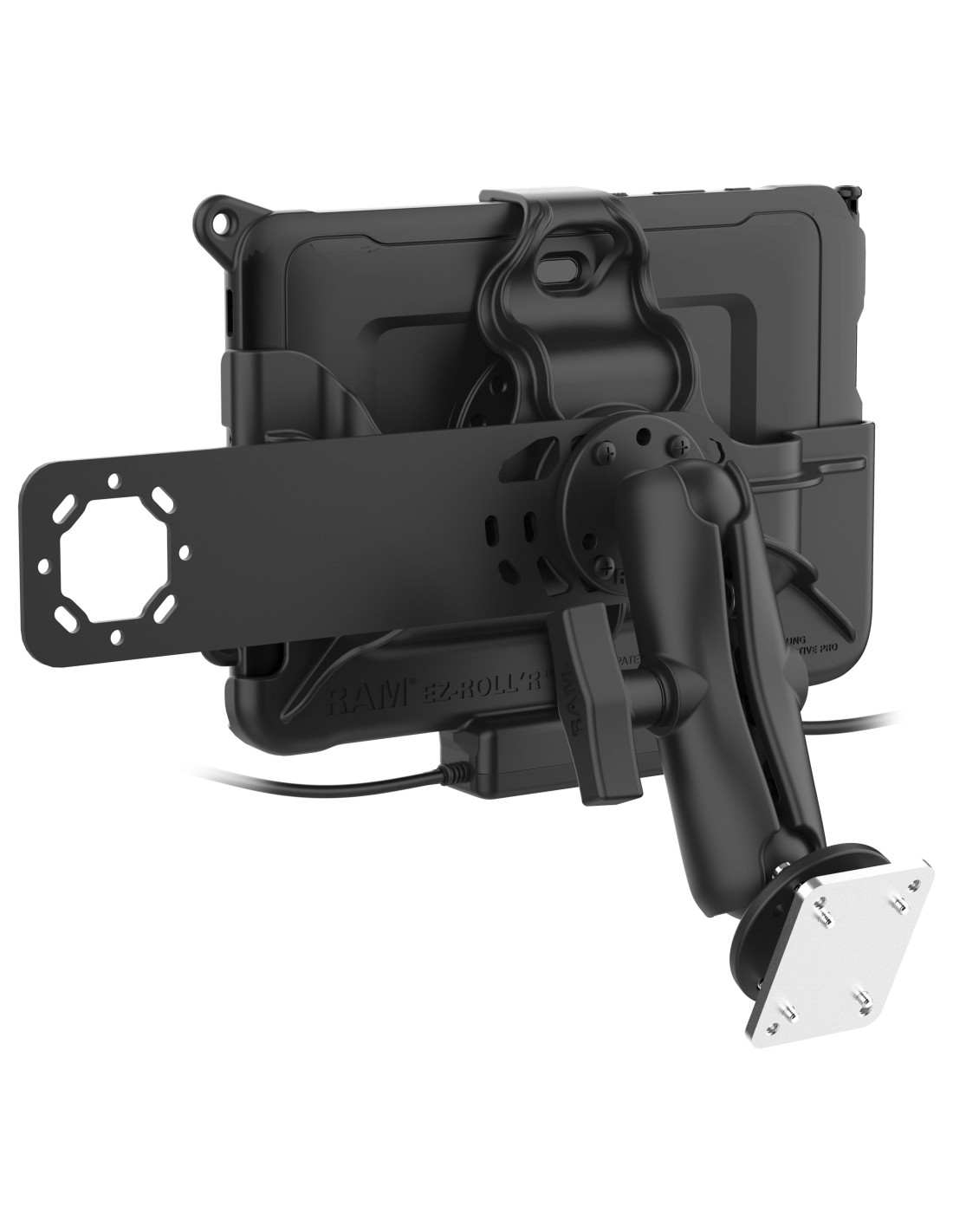

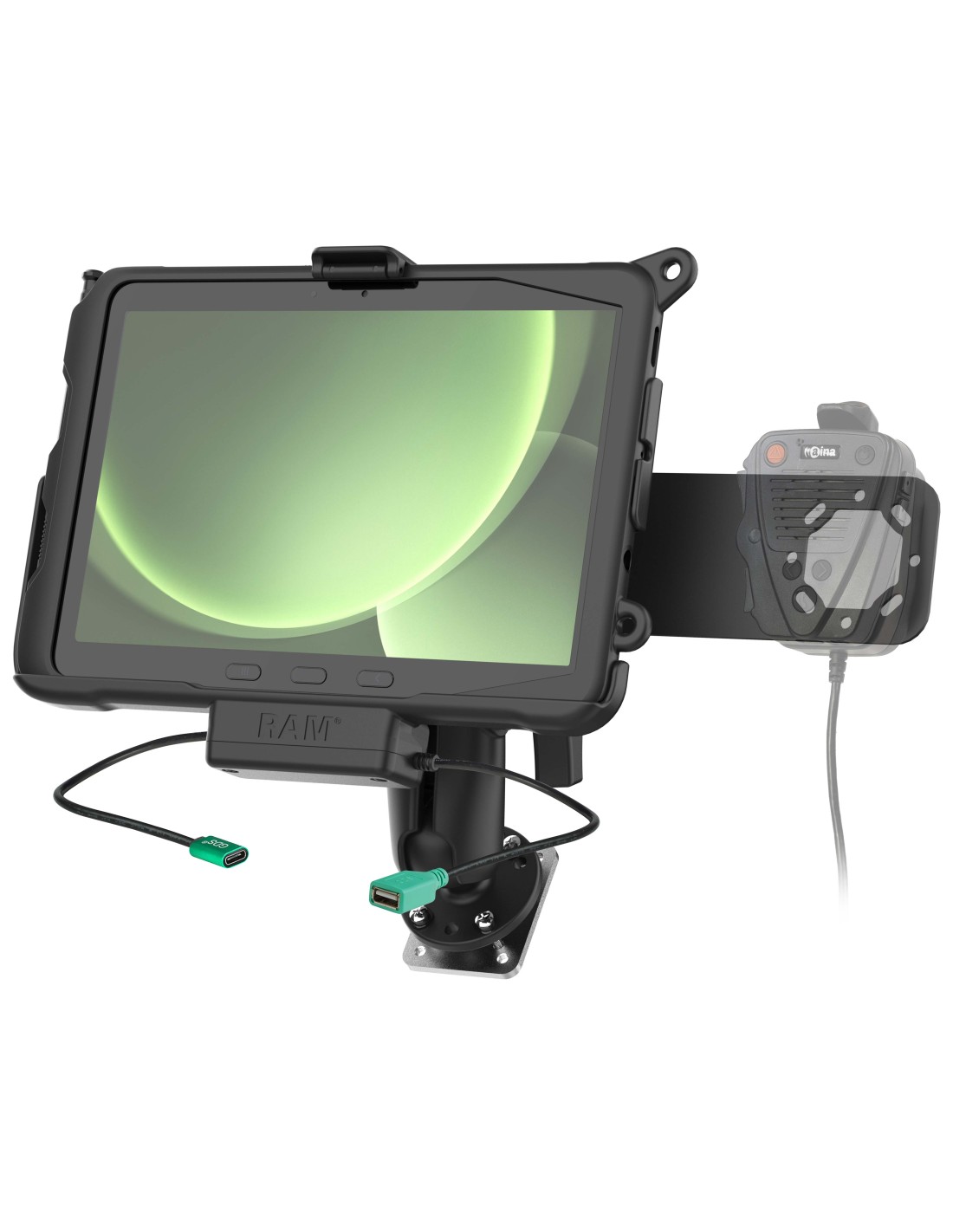

The RAM Aina PTT Voice Responder Vehicle Bundle for Samsung Tab Active4 Pro (RAM-101-SAM52CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the Samsung Tab Active4 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection and power from the hardwire charger, while the AINA Vehicle Charging Cradle connects via the dock's USB-A peripheral pigtail for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.

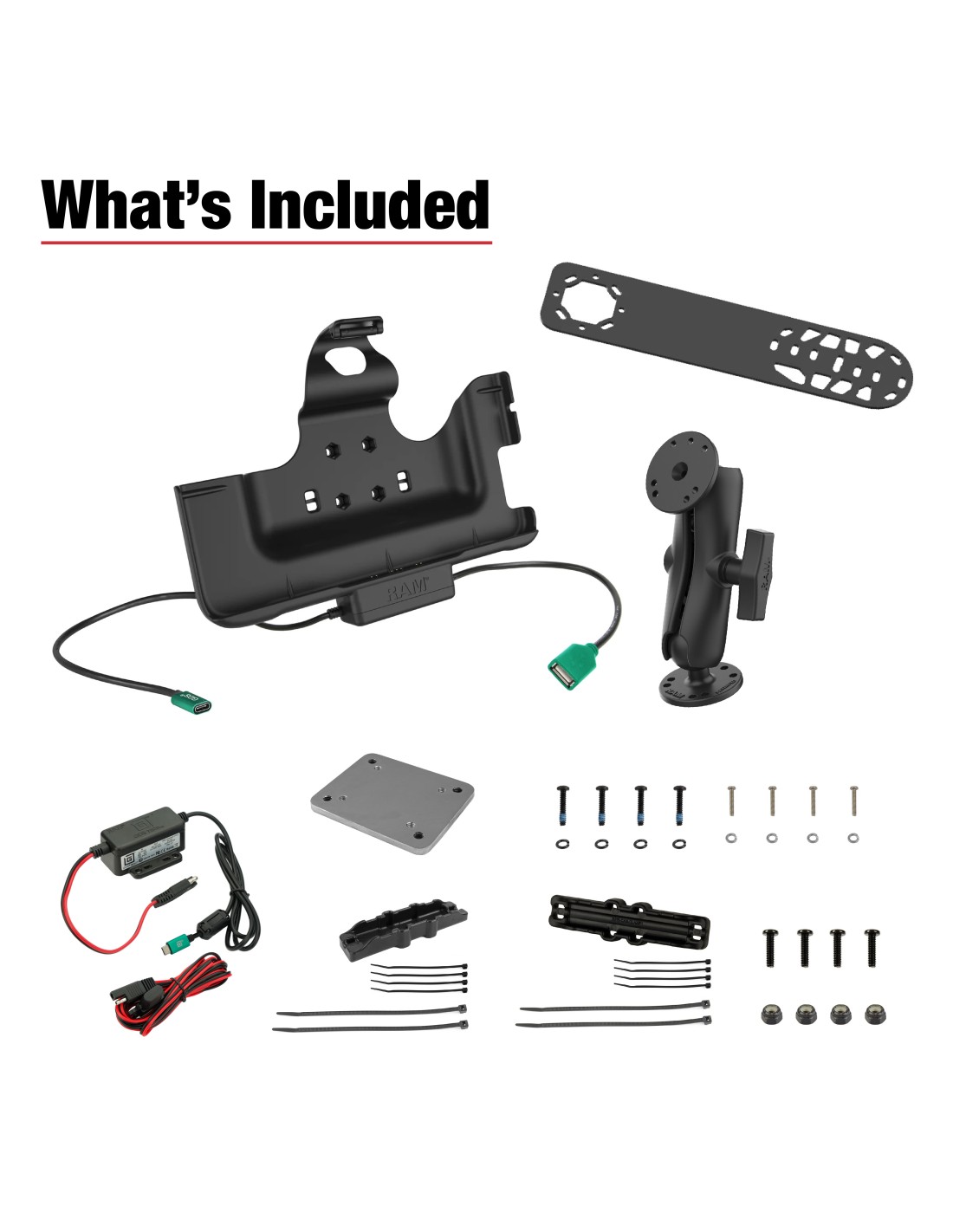

  • Bundle includes RAM® Powered Dock, microphone bracket, hardwire charger, and double ball mount with backing plate
  • Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power
  • AINA's Voice Responder RSM recommended for bluetooth PTT; connect AINA's charging vehicle cradle via dock's USB-A pigtail
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Components
RAM-101-225B2U
RAM-101-MIC2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-CLAMP2U
RAM-GDS-CHARGE-V7CU
RAM-HOL-SAM52CP-1AU
Product Type
Tablet Mounts
Ball Size
C Size (1.5")
Hardware Included
(2) USB Cable Clamps
Assembly Hardware
Dashboard Backing Plate with Hardware
Hardwire Charger
Microphone Bracket
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
250mm
Input Connector
USB Type-C Female
Materials
High strength composite
Marine-grade aluminum
Steel
Output Cable Length
250mm
Output Connector
USB 1.1 Type A
Output Current
500mA
Output Voltage
5.3-5.4VDC
Packaging Type
Box
Peripheral Output
500mAh
Power Output
5VDC
Product Weight
4.49 lb
Socket To Socket Length
4.66"
Transfer Speed
12Mbps
Device Compatibility
Samsung Galaxy Tab Active4 Pro
Samsung Galaxy Tab Active5 Pro
Samsung Galaxy Tab Active Pro
793442029936
