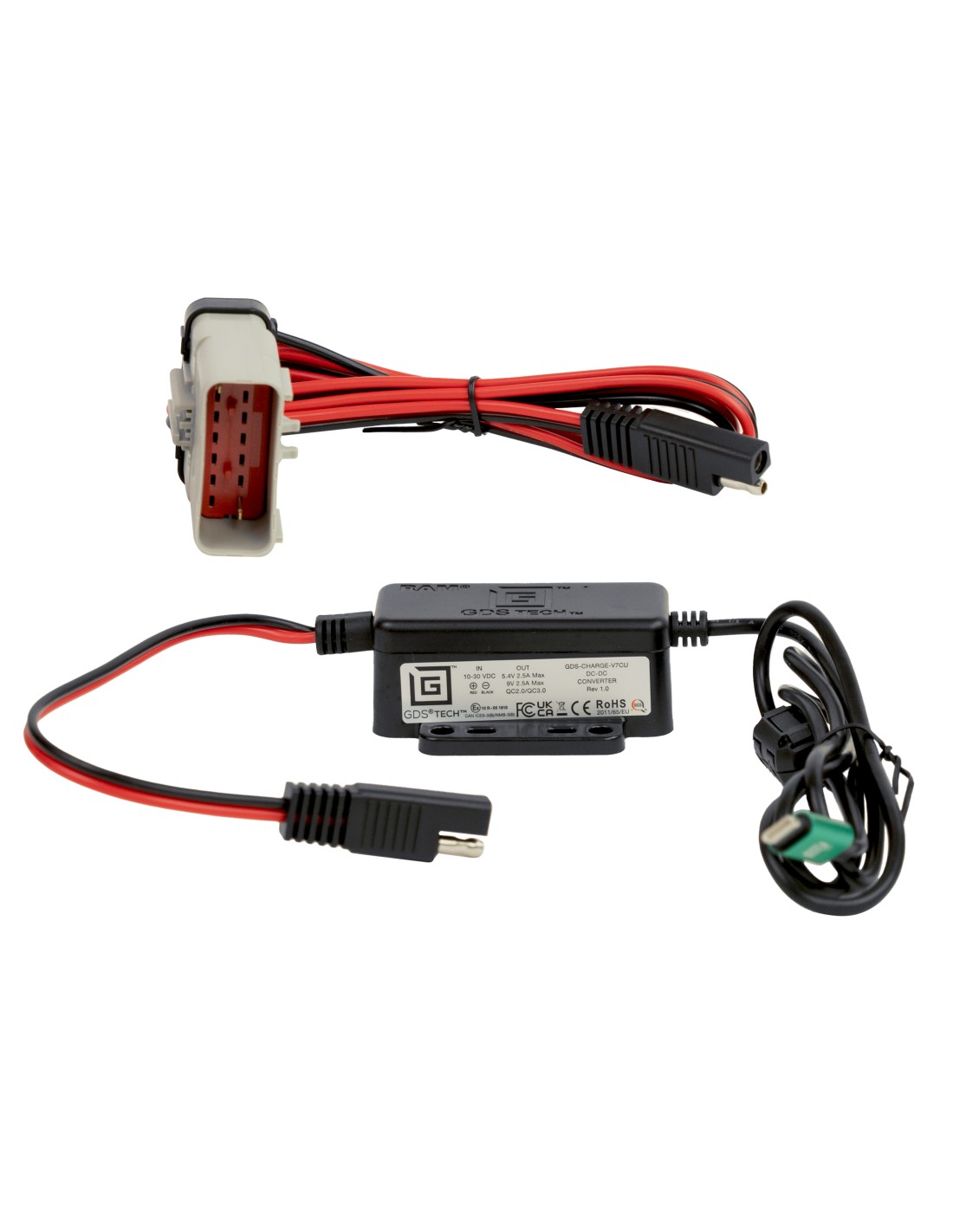

GDS® Modular 10-30V Charger with Male USB Type-C & RP1226 Connector

RAM-GDS-CHARGE-V7C-RP1226U


The GDS Modular 10-30V Charger with Male USB Type-C & RP1226 Connector (RAM-GDS-CHARGE-V7C-RP1226U) connects to a power source via RP1226 connector and provides power to any GDS vehicle solution. When it comes time to upgrade, the quick disconnect feature enables you to leave the RP1226 connector plugged in and attach the new charger components. Always Protected. Always Connected.

  • Modular charger features USB Type-C female connector
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® EcosystemT to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Product Line
GDS® ChargeT GDS® TechT
Product Type
Components
Certifications
CE Certification
E-Mark Certification
FCC Certification
RCM Certification
UL 62368-1 Certificaton
Input Cable Length
1 Meter
Input Connector
RP1226 Connector
Input Voltage
10-30VDC
Operating Temperature
-10°C to +70°C
Output Cable Length
1 Meter
Output Connector
USB Type-C Male
Output Current
2.5A max
Output Voltage
5.42-9VDC
Packaging Type
Poly Bag
Regulatory
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Storage Temperature
-40°C to +70°C
793442025778
