RAM® Fishfinder Deck Kit with Dual...

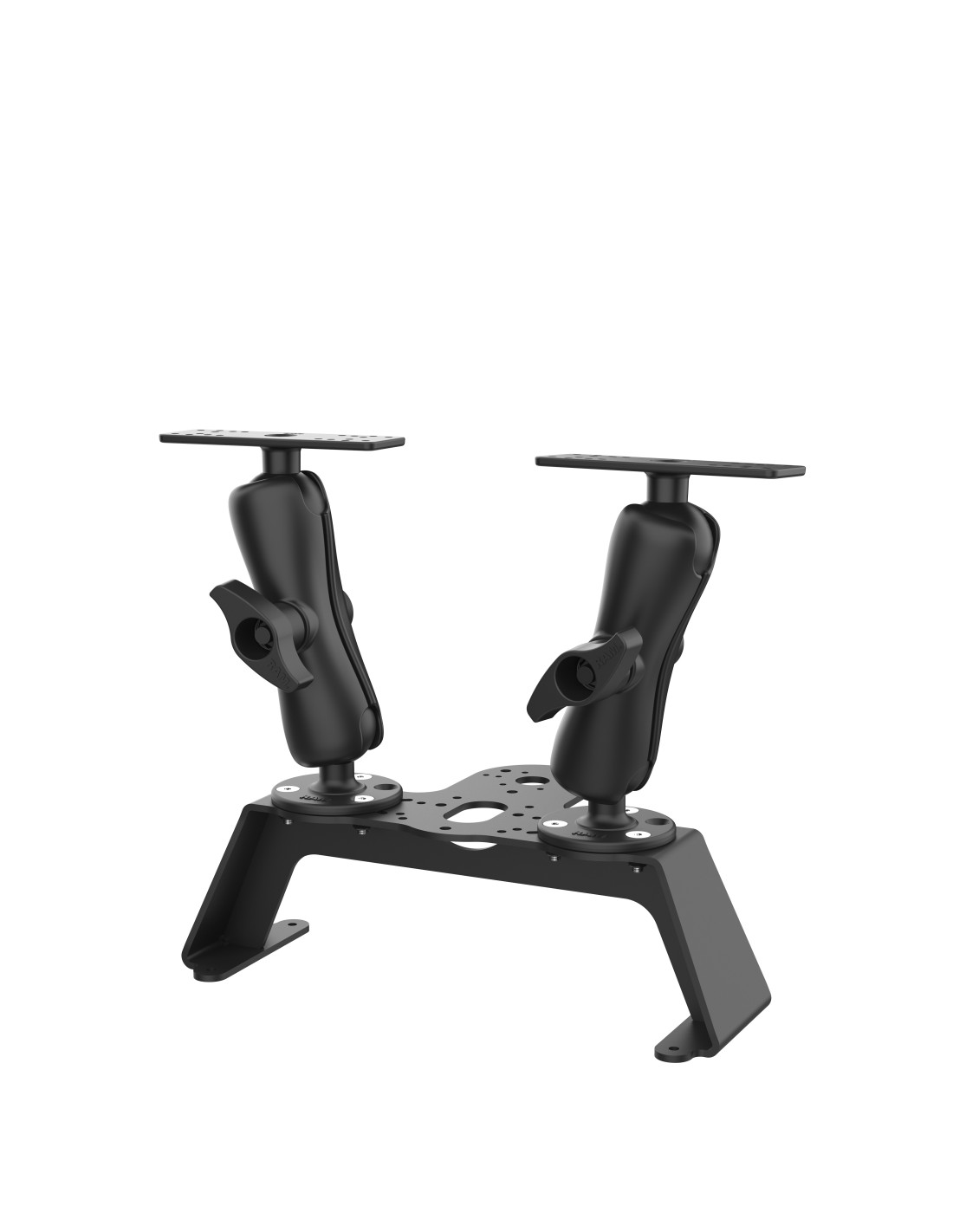

RAM® Fishfinder Deck Kit with Dual Marine Electronic Mount

RAM-FF1-D-115-2


The RAM Fishfinder Deck Kit with Dual Marine Electronic Mount (RAM-FF1-D-115-2) is a robust, powder-coated aluminum bracket configured with two D size fishfinder mounts that allows you to mount two fishfinders side-by-side. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, making it compatible with popular fishfinder brands like Garmin, Lowrance, and Humminbird. It also includes three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM Mounts D size bases. This solution comes with the RAM Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environmentslasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM components.

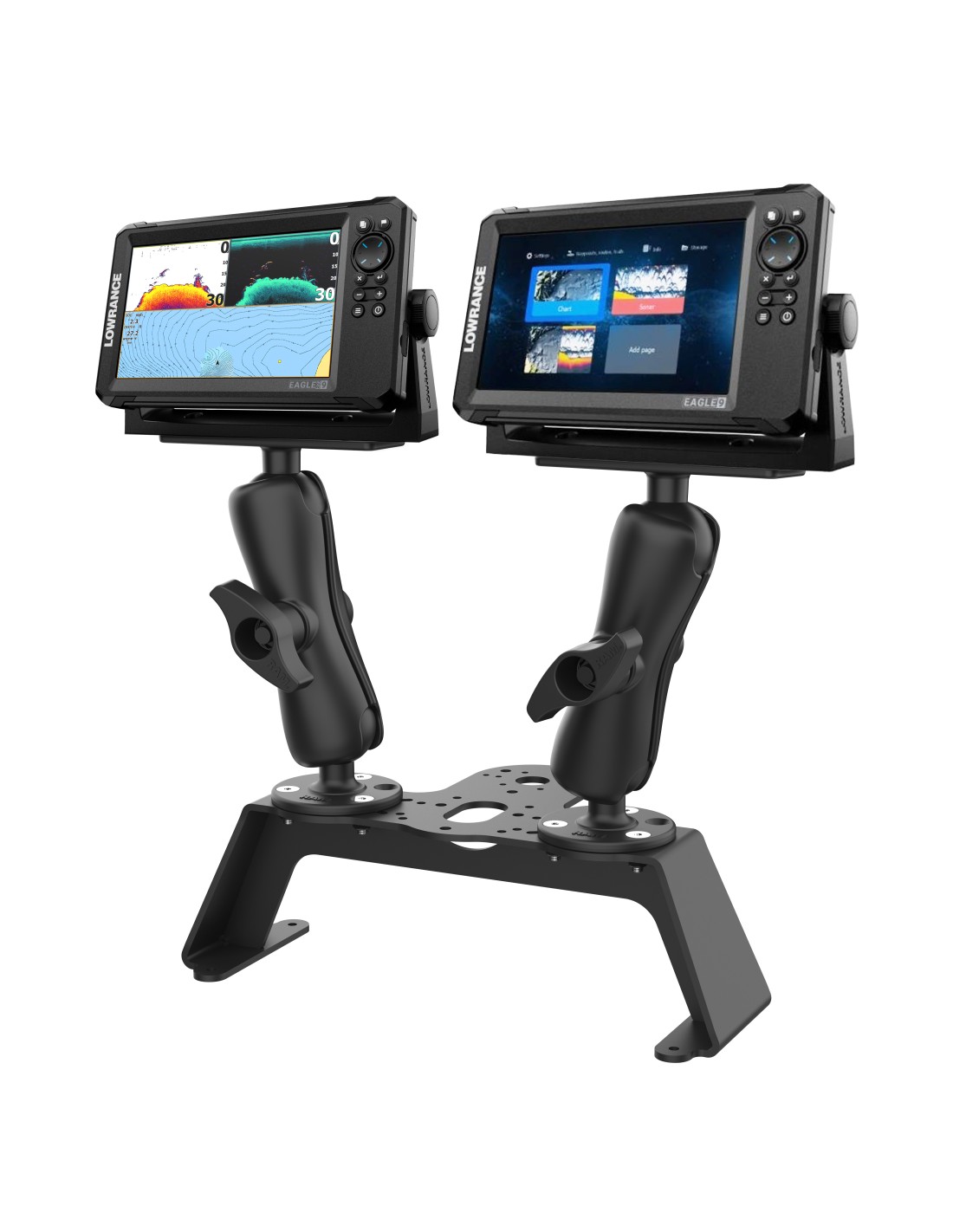

  • Supports up two fishfinders for maximum data intake; ideal for bow or rear-mounted fishfinder setups
  • Compatible with Garmin®, Lowrance®, and Humminbird® mounting patterns
  • Includes AMPS and tri-hole patterns for RAM® D size bases
  • Marine-grade aluminum construction with powder-coated finish
  • Back by a Lifetime Warranty

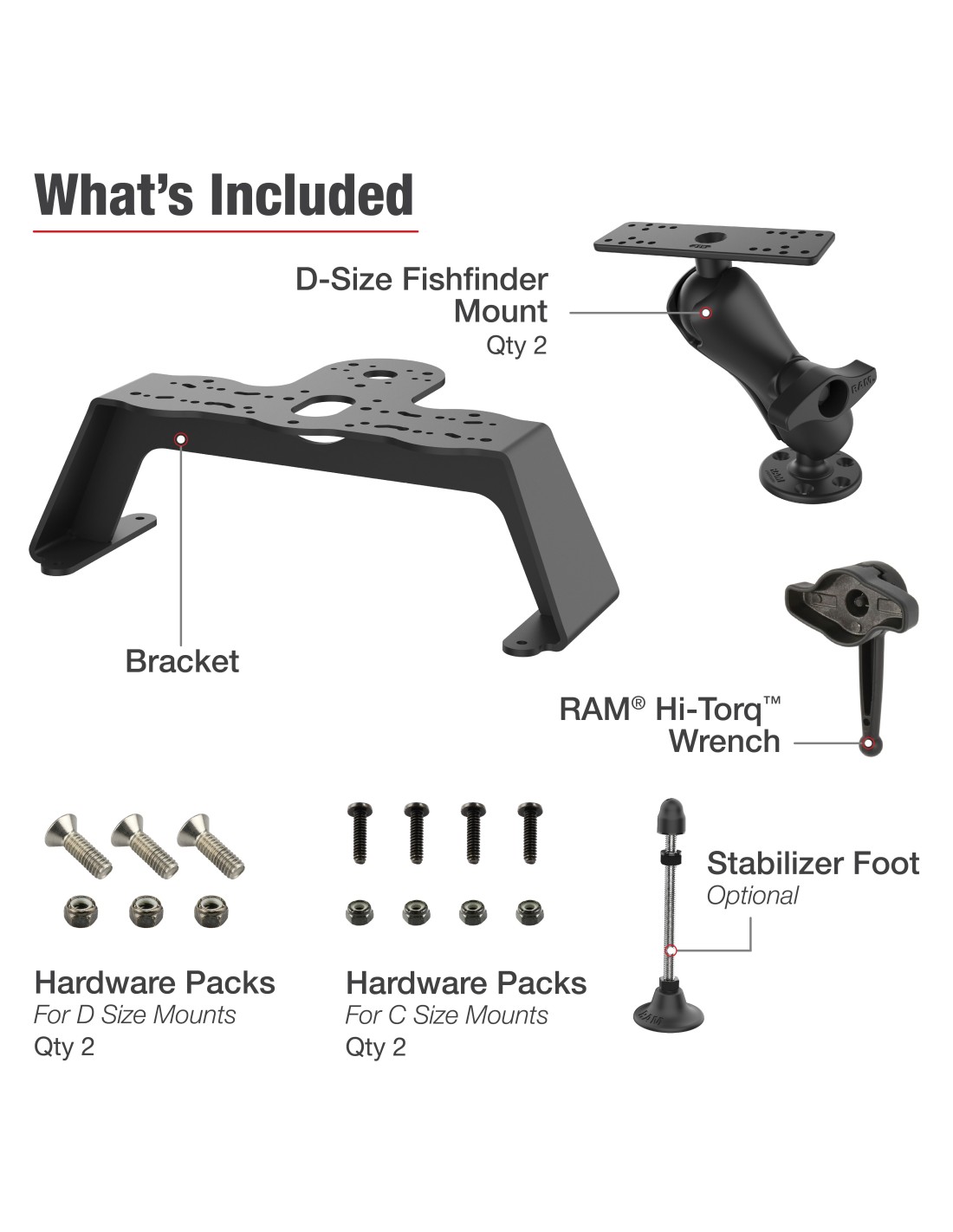

Components
RAM-D-115
RAM-FF1U
RAM-KNOB9HU
Product Line
Hi-TorqT
Product Type
Fishfinder Mounts
Ball Size
D Size (2.25")
Hardware Included
(1) RAM® Hi-TorqT Wrench
Mounting Hardware

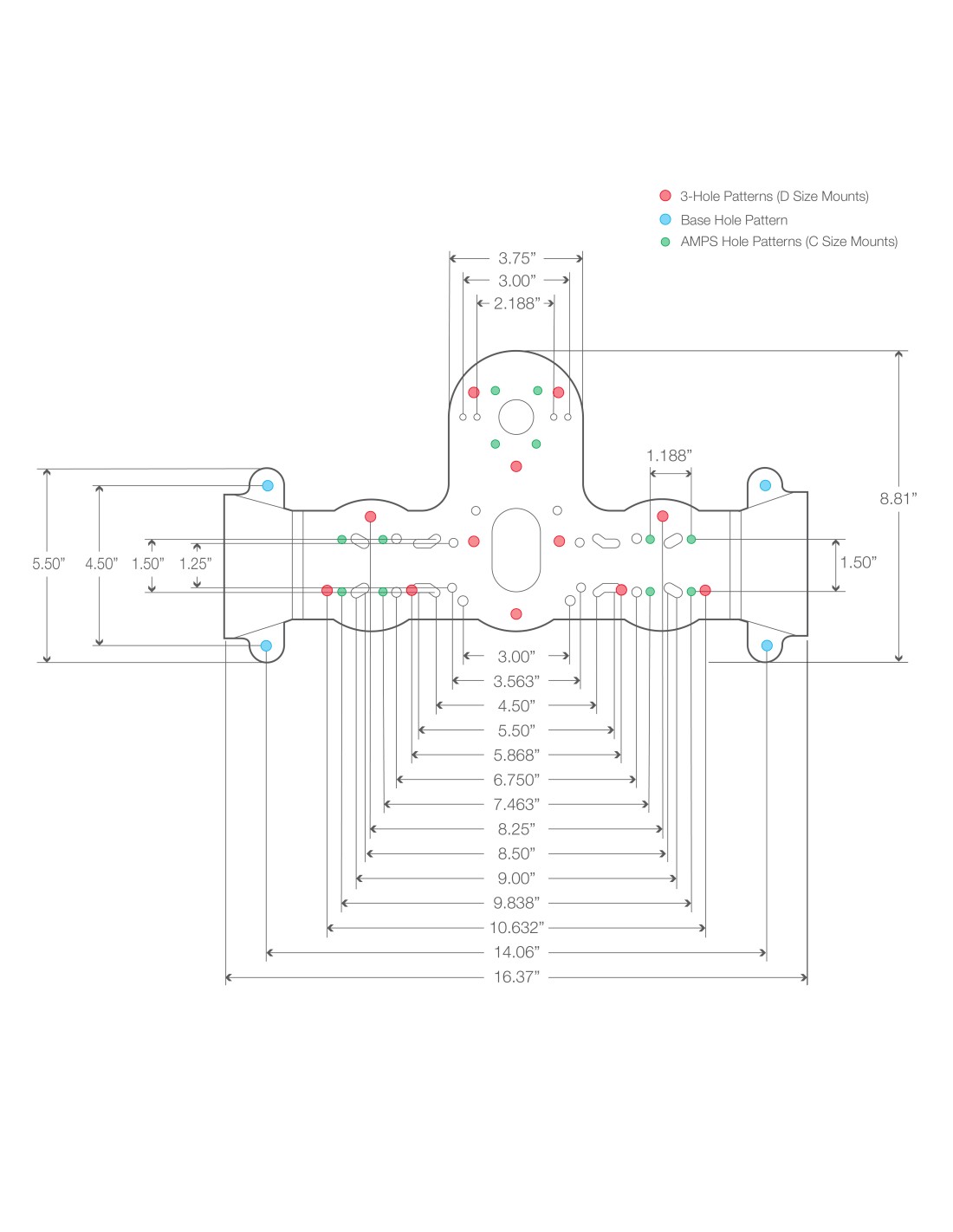

Hole Pattern
See Drawing
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Weight Capacity
Heavy-Duty Use: 5 lbs
Standard Use: 6 lbs
Device Compatibility
Garmin ECHOMAP Plus 72-97 Series
Garmin ECHOMAP UHD2 9"
Garmin ECHOMAP UHD 62-95 Series
Garmin ECHOMAP Ultra 2 10"
Garmin ECHOMAP Ultra 2 12"
Garmin ECHOMAP Ultra 102sv
Garmin ECHOMAP Ultra 106sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 922
Garmin GPSMAP 922xs
Garmin GPSMAP 923
Garmin GPSMAP 923xsv
Garmin GPSMAP 942
Garmin GPSMAP 942xs
Garmin GPSMAP 943
Garmin GPSMAP 943xsv
Garmin GPSMAP 1223
Garmin GPSMAP 1223xsv
Garmin GPSMAP 1243
Garmin GPSMAP 1243xsv
Garmin GPSMAP 8410
Garmin GPSMAP 8410xsv
Garmin GPSMAP 8412
Garmin GPSMAP 8412xsv
Garmin GPSMAP 8416
Garmin GPSMAP 8416xsv
Garmin GPSMAP 8610
Garmin GPSMAP 8610xsv
Garmin GPSMAP 8612
Garmin GPSMAP 8612xsv
Garmin GPSMAP 8616
Garmin GPSMAP 8616xsv
Garmin Striker Plus 9sv
Garmin Striker Vivid 9sv
Garmin echoMAP Chirp 72-95 Series
Humminbird 800 & 900 Series
Lowrance Eagle 7
Lowrance Eagle 9
Lowrance Elite FS 7
Lowrance Elite FS 9
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 9
Lowrance HDS LIVE 12
Lowrance HDS PRO 9
Lowrance HDS PRO 10
Lowrance HDS PRO 12
Lowrance HDS PRO 16
Lowrance HOOK-9
Lowrance Hook Reveal 7 Series
Lowrance Hook Reveal 9 Series
Raymarine Fishfinders and GPS Chartplotters
793442027345
