• Nuevo
RAM® Double U-Bolt Rail Mount for...

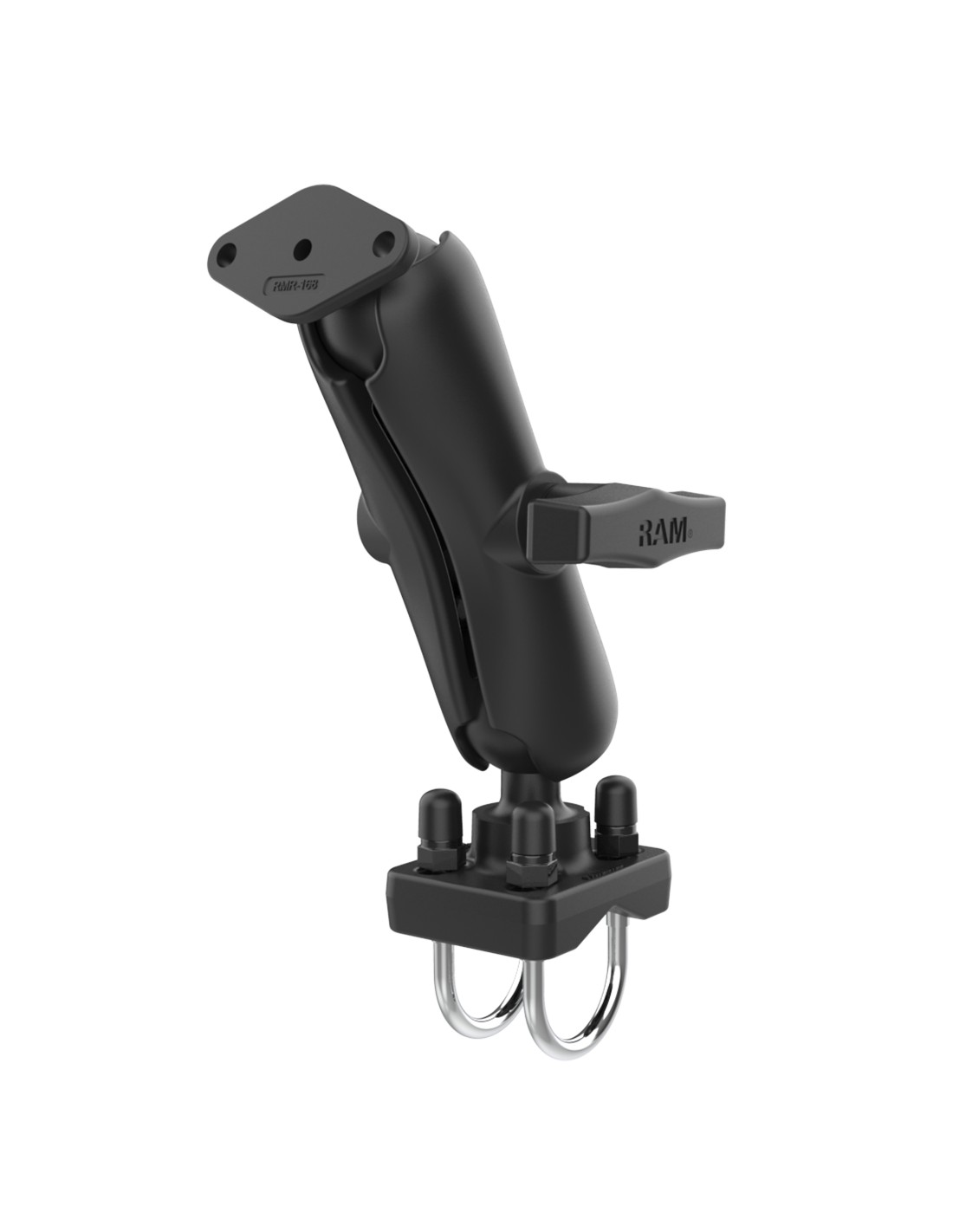

RAM® Double U-Bolt Rail Mount for Smaller Rails with Diamond Plate

RAM-138U-235


The RAM Double U-Bolt Rail Mount for Smaller Rails with Diamond Plate (RAM-138U-235) is everything you need to secure a RAM device holder to rails ranging from 1" to 1.25" in diameter. The base is made of stainless steel double for durability and reliability in the most demanding environments. The included rubber caps for the U-bolts are anti-snag, ideal for high-traffic or industrial settings.

  • RAM® U-Bolt base secures to rails ranging from 1 inch to 1.25 inches in diameter
  • Ideal mounting base for phones, tablets, cameras, and much more; diamond base features 2-hole AMPS pattern compatible with RAM® holders and docks
  • Bundle features C size components; double u-bolt base, medium length arm, and diamond base
  • Made of high-strength composite and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Components
RAM-201U
RAM-235U
RAM-238U
Product Type
Universal Mounts
Ball Size
C Size (1.5")
Clamp Range
1" - 1.25" diameter
Hardware Included
(2) 1/4"-20 U-Bolts for 1" - 1.25" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
Hole Pattern
2-Hole AMPS 1.912"
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Product Weight
1.42 lb
Socket To Socket Length
4.66"
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442029523
