RAM-B-101-225B2-ZE38-V3C-2U

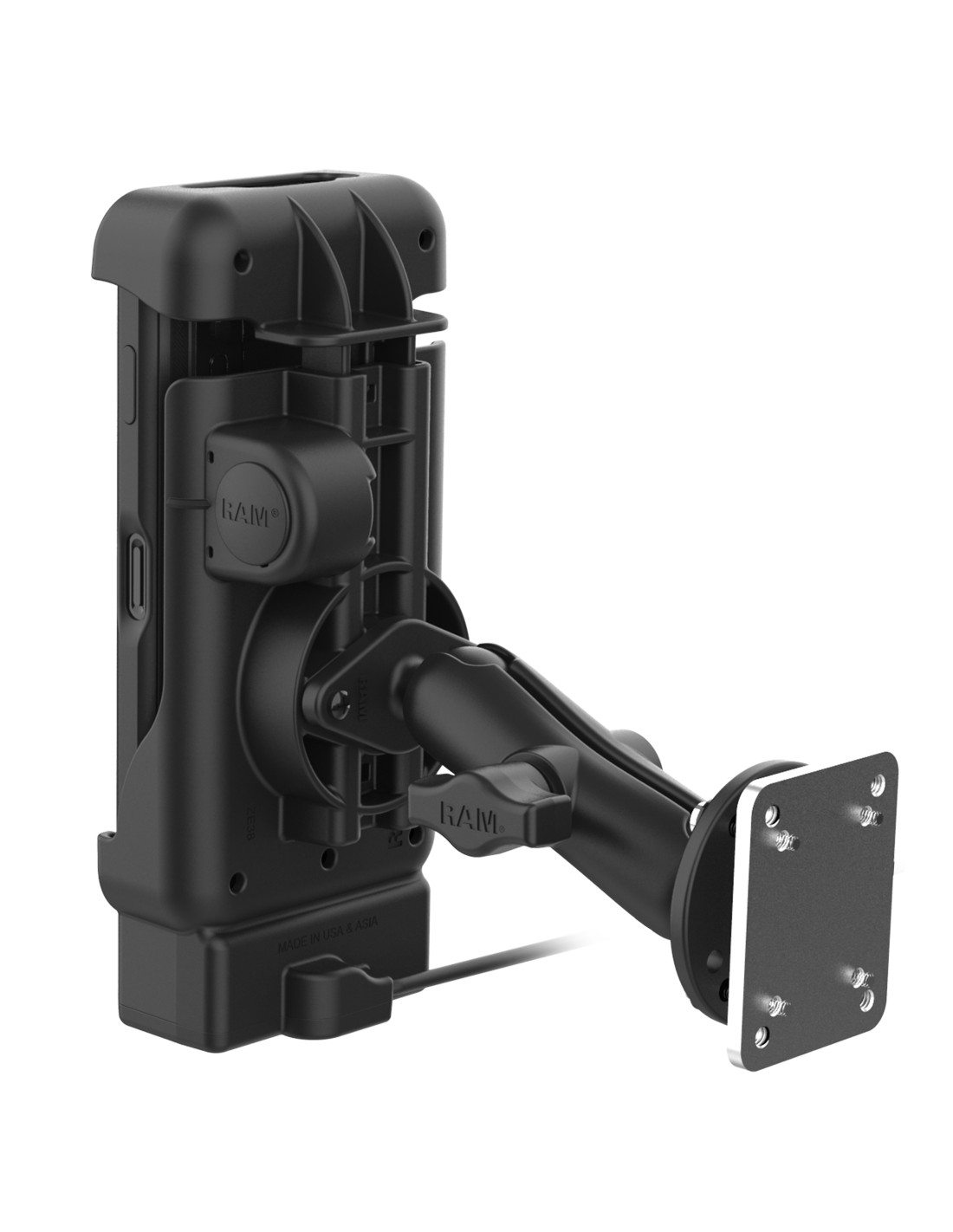

The RAM Powered Dock & Dashboard Mounting Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3C-2U) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM Vehicle Dock is backed by a 3-year warranty.

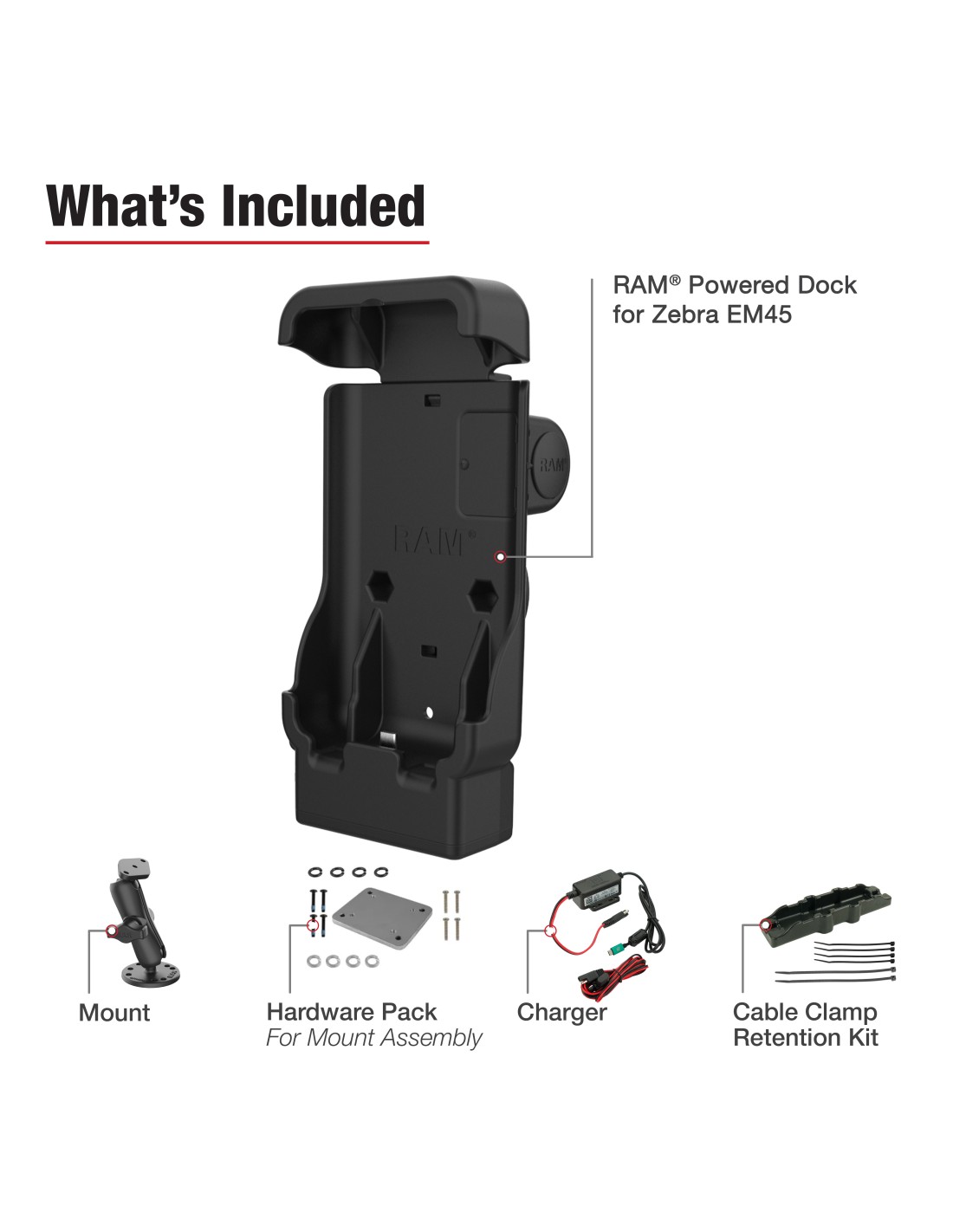

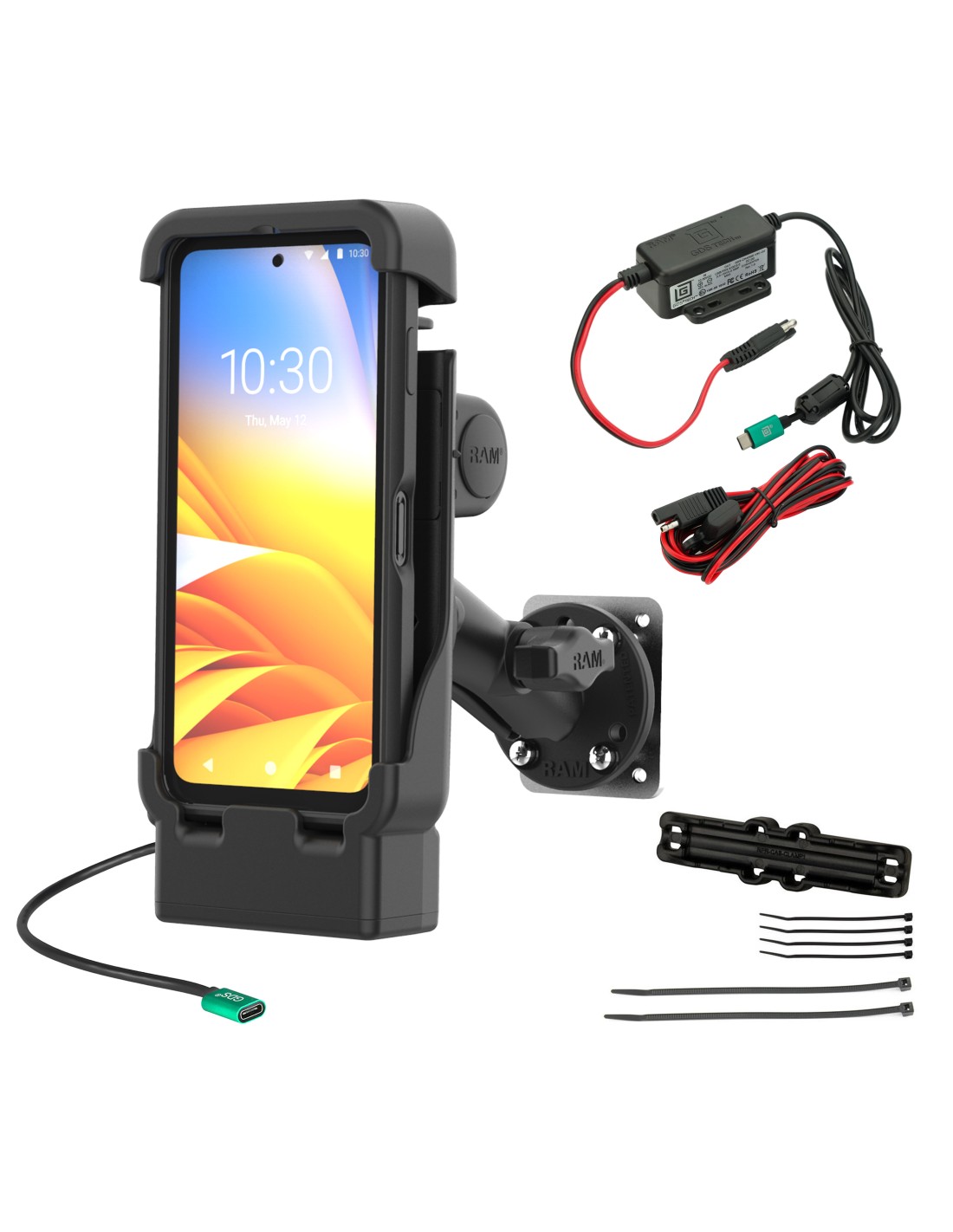

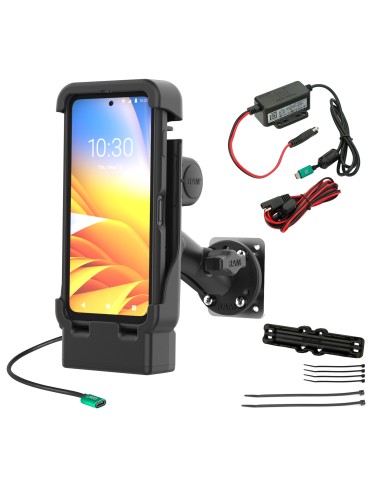

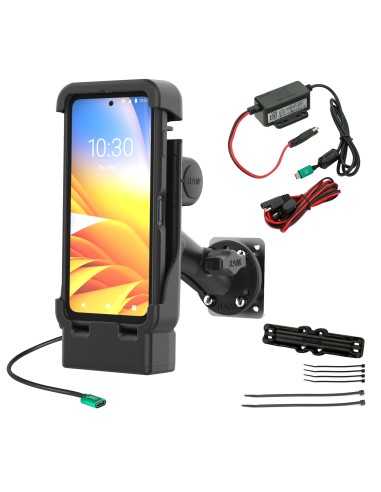

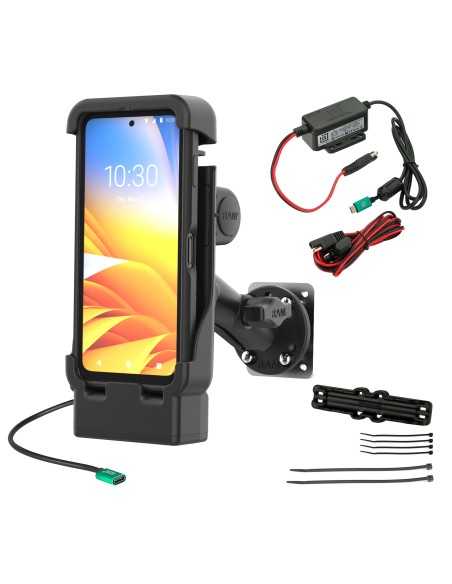

  • Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, and cable clamp
  • Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45
  • Back cavity accomodates OEM ergonomic accessories
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Components
RAM-B-138U-225B2
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CHARGE-V3C-2U
RAM-HOL-V15-ZE38PU
Product Type
Phone Mounts
Ball Size
B Size (1")
Certifications
FCC, Industry Canada, CE, WEEE, E-Mark and RoHS Compliant
USB 2.0 BC 1.2 DCP Support
Integrated Short Circuit Protection
Hardware Included
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8 Flat Washers
(4) #8 Split Lock Washers
(4) #8-32 x 1" Screws
Assembly Hardware
Input Cable Length
1.2 Meters including 2 pole flat marine connector
Input Voltage
10-30VDC
Materials
High strength composite
Marine-grade aluminum
Steel
Operating Temperature
-10°C to +70°C
Output Current
3A max
Output Voltage
5-15VDC
Packaging Type
Poly Bag
Regulatory
Overvoltage/Load Dump Compliance: Meets SAE J-1113
Socket To Socket Length
3"
Storage Temperature
-40°C to +70°C
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
Device Compatibility
Zebra EM45
