RAP-411D-114-PA2-BGU

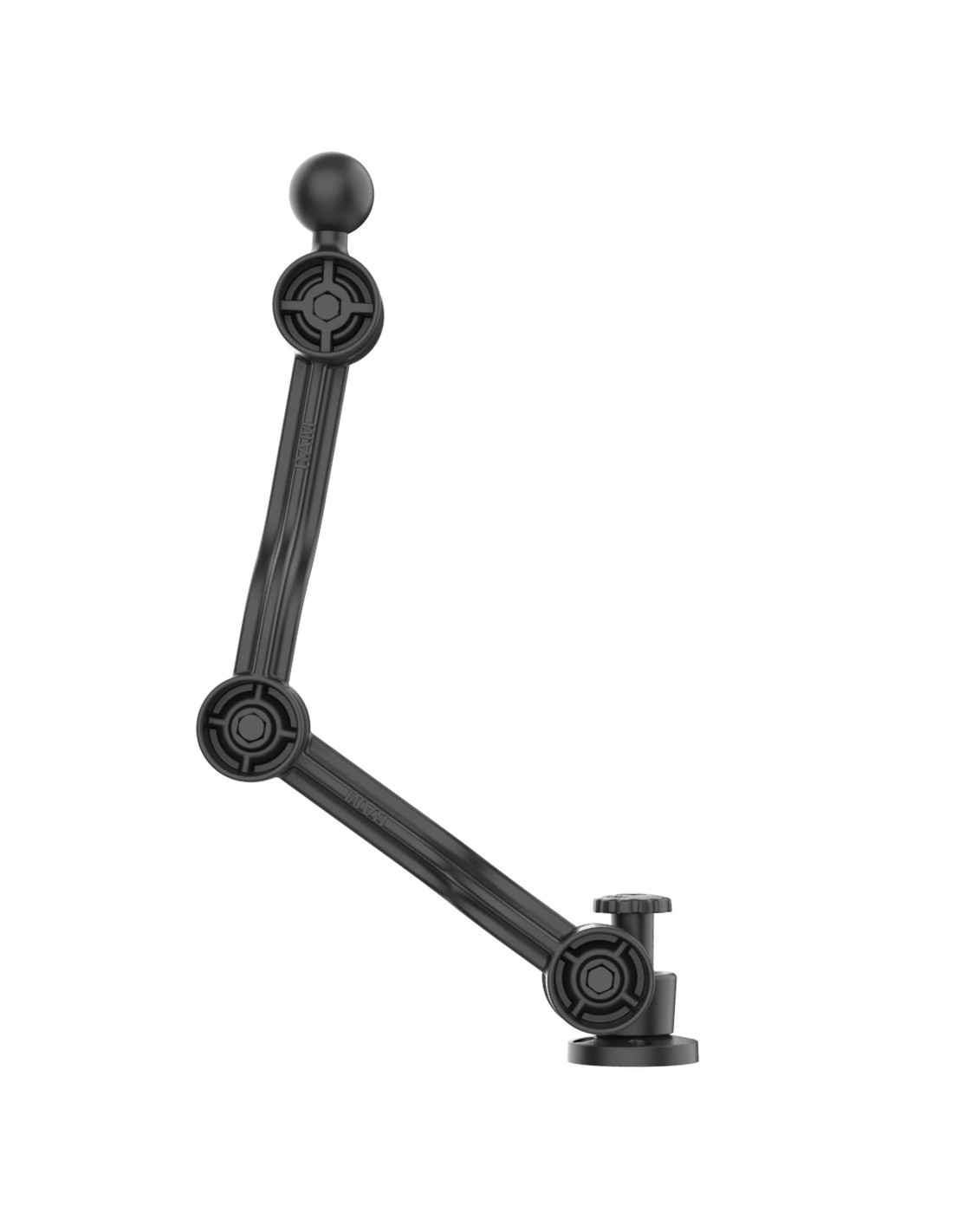

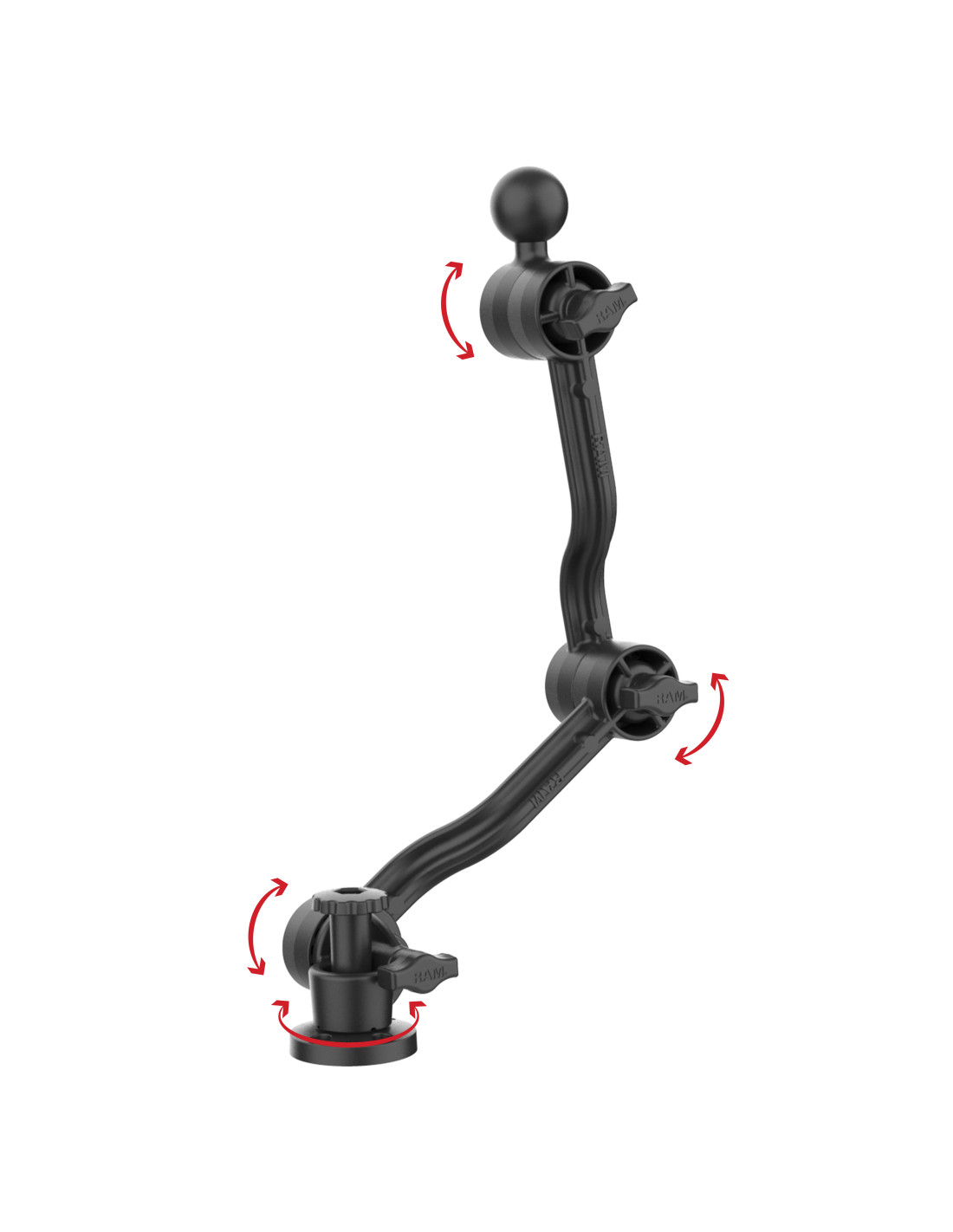

The RAM Composite Drill-Down Double Ratchet Arm with Ball (RAP-411D-114-PA2-BGU) is a light-weight, versatile mounting base with more reach than traditional RAM double ball and socket arms. Each ratchet end features locking teeth that adjust in small increments, providing a reinforced hold in rugged environments. Complete your solution and attach any C size arm and device holder.

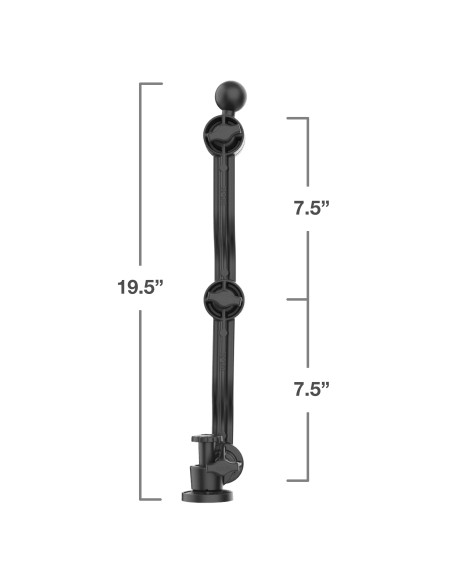

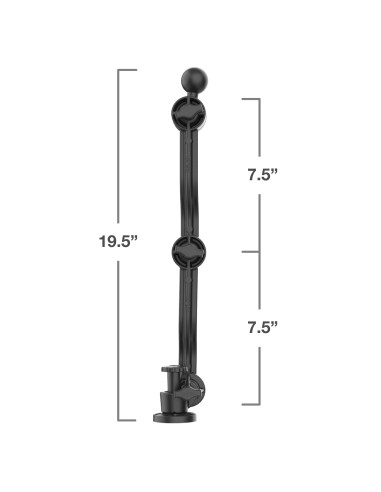

  • Double ratchet arm provides a longer reach of 19.5"
  • Drill-down base with 4-hole AMPS pattern
  • Backed by a lifetime warranty

Components
RAM-114BGU
RAP-114-PAU
RAP-202PLU
Product Type
Components
Ball Size
C Size (1.5")
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
High strength composite
Packaging Type
Poly Bag
Plate Size
2.5" Diameter
Product Dimensions
Overall Height: 19.5"
Product Weight
1.16 lb
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442028168
