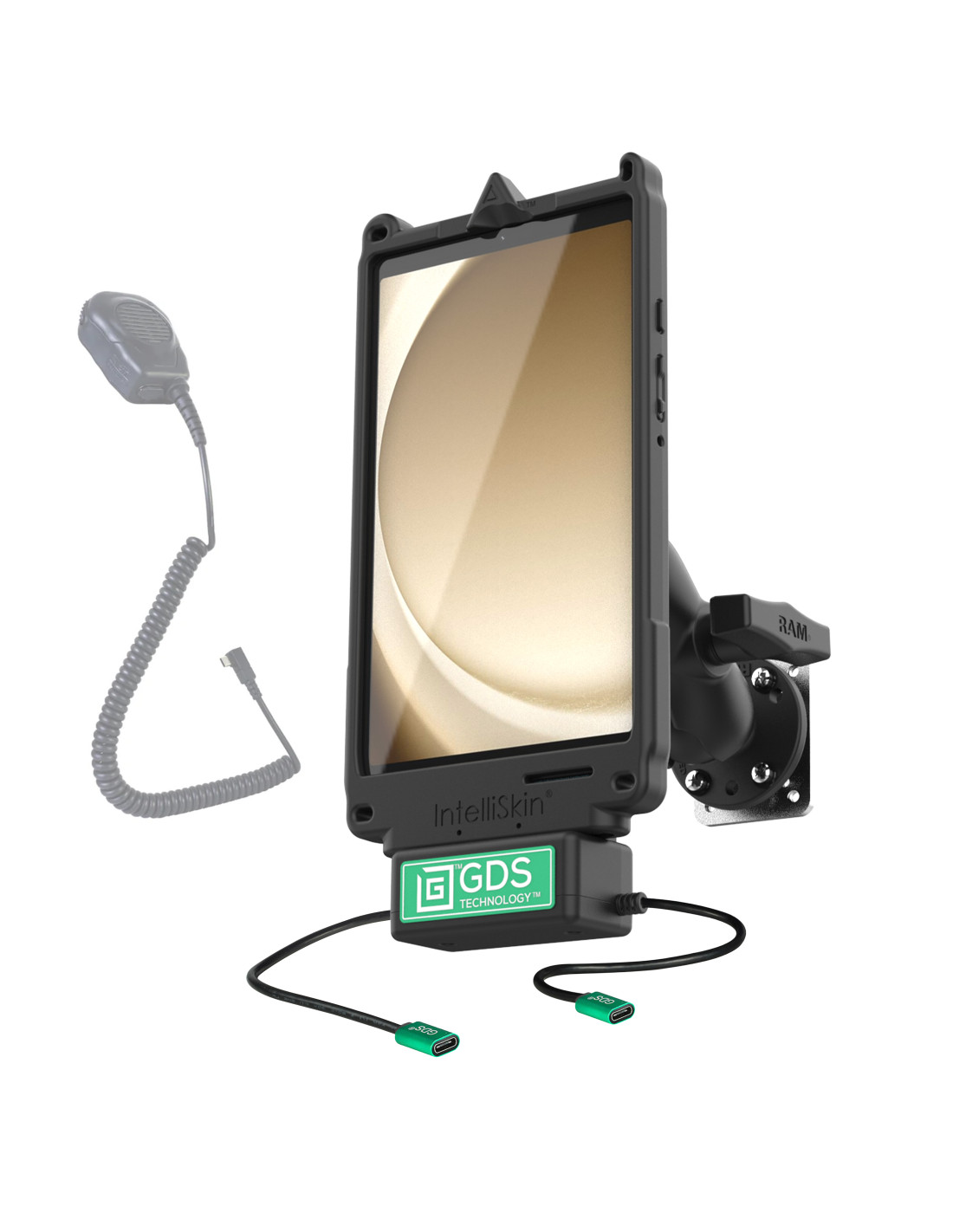

GDS® Uni-ConnT Klein VALOR PTT Vehicle Bundle for Samsung Tab A9
The GDSUni-ConnKlein VALOR PTT Vehicle Bundle for Samsung Tab A9 (RAM-GDS-U1-SAM95-KIT4) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection, made in partnership with Klein Electronics, Inc. This bundle is a comprehensive kit of everything needed to deploy the Tab A9 in your fleet. It contains one GDSUni-Conndock, Uni-Connadapter, IntelliSkinfor the Tab A9, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. Klein Electronics Valor Remote Speaker Microphone (RSM) is sold separately. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDSUni-Connis backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected.One Dock to Connect Them All

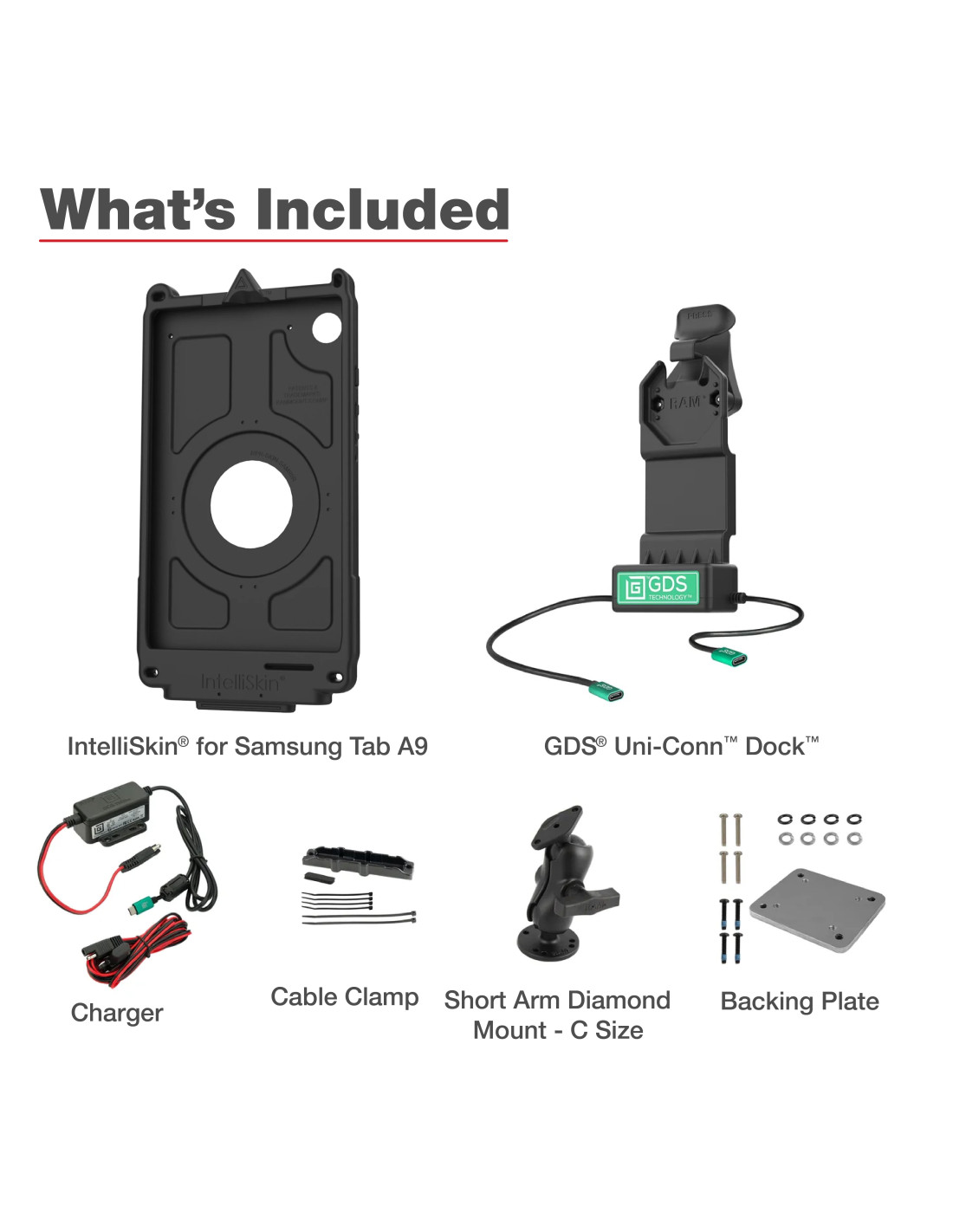

- Bundle includes the GDS® Uni-ConnT dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS® TechnologyT for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device

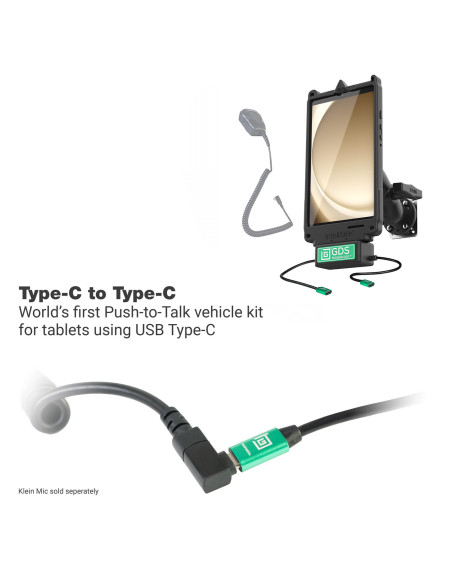

- Capable of Push-To-Talk via USB Type-C connection; compatible with the Klein Electronics VALOR Microphone
- RAM® Mounts CompatibleT and compatible with the GDS® Uni-ConnT Adapter with Hand Strap
- Backed by a 3-year warranty
- Components
- RAM-138-B-225B2U
RAM-GDS-CAB-CLAMP-KL1U
RAM-GDS-CAB-CLAMP2U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCK-U1CP-CU
RAM-GDS-SKIN-SAM95-NG
RAM-GDS-U1U - Product Line
- GDS® TechT IntelliSkin®
- Product Type
- Tablet Mounts
- Ball Size
- C Size (1.5")
- Hardware Included
- (1) 2.10" x 2.60" Steel Backing Plate
(1) Cable Clamp
(1) Vehicle Hardwire Charger
(4) #8 Flat Washers
(4) #8 Split Lock Washers
(4) #8-32 x 1" Screws
Assembly Hardware - Hole Pattern
- 3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496" - Input Cable Length
- 215mm
- Input Connector
- USB Type-C (Power In)
- Materials
- High strength composite
Marine-grade aluminum
Steel - Output Cable Length
- 215mm
- Output Connector
- USB Type-C (Peripheral)
- Output Voltage
- 5V - 12V @ 3A max
- Packaging Type
- Box
- Power Output
- 15W
- Product Weight
- 3.90 lb
- Socket To Socket Length
- 2.5"
- Device Compatibility
- Samsung Galaxy Tab A9
