GDS® Uni-ConnT Vehicle Bundle + Single USB-C for Samsung Tab A9+

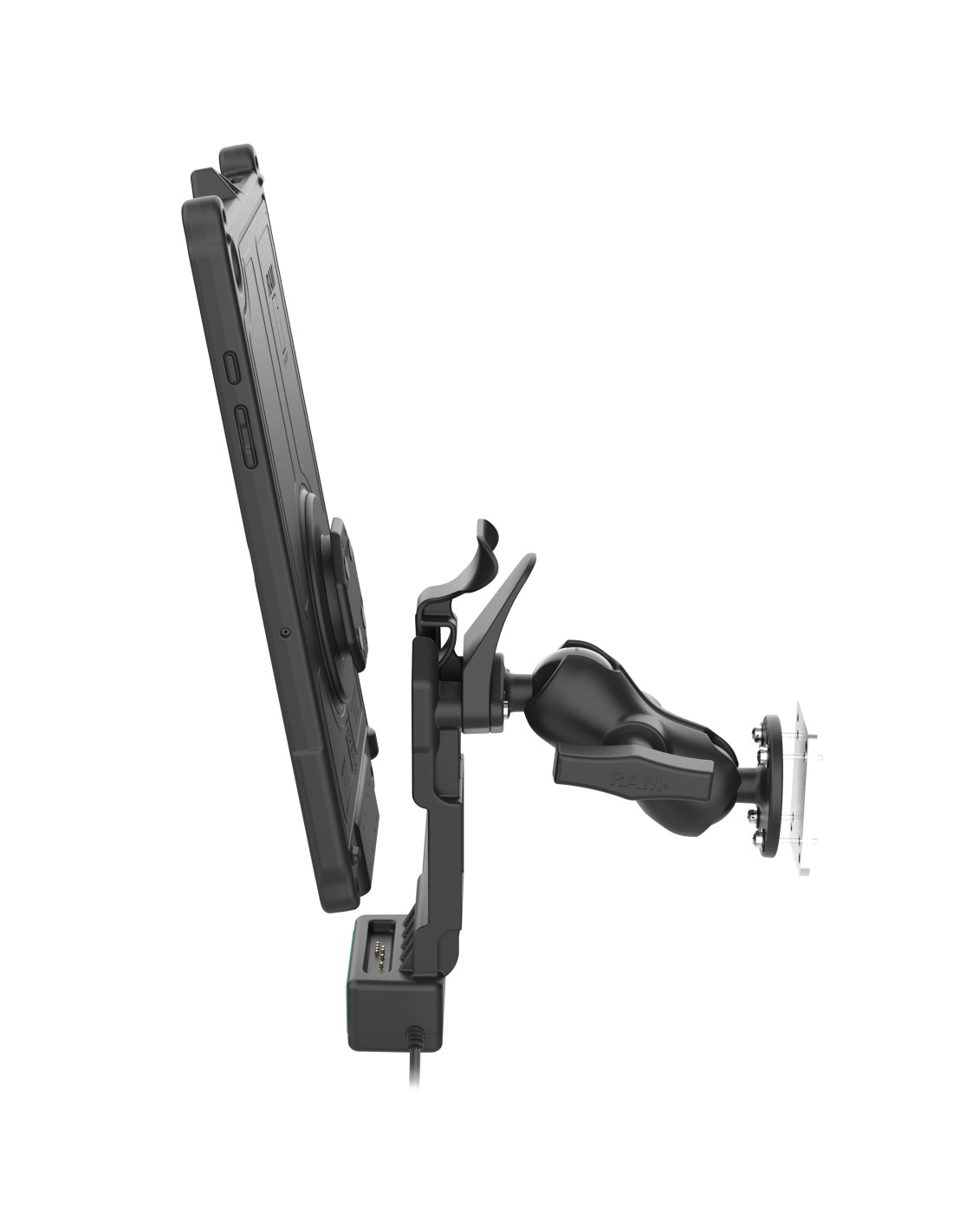

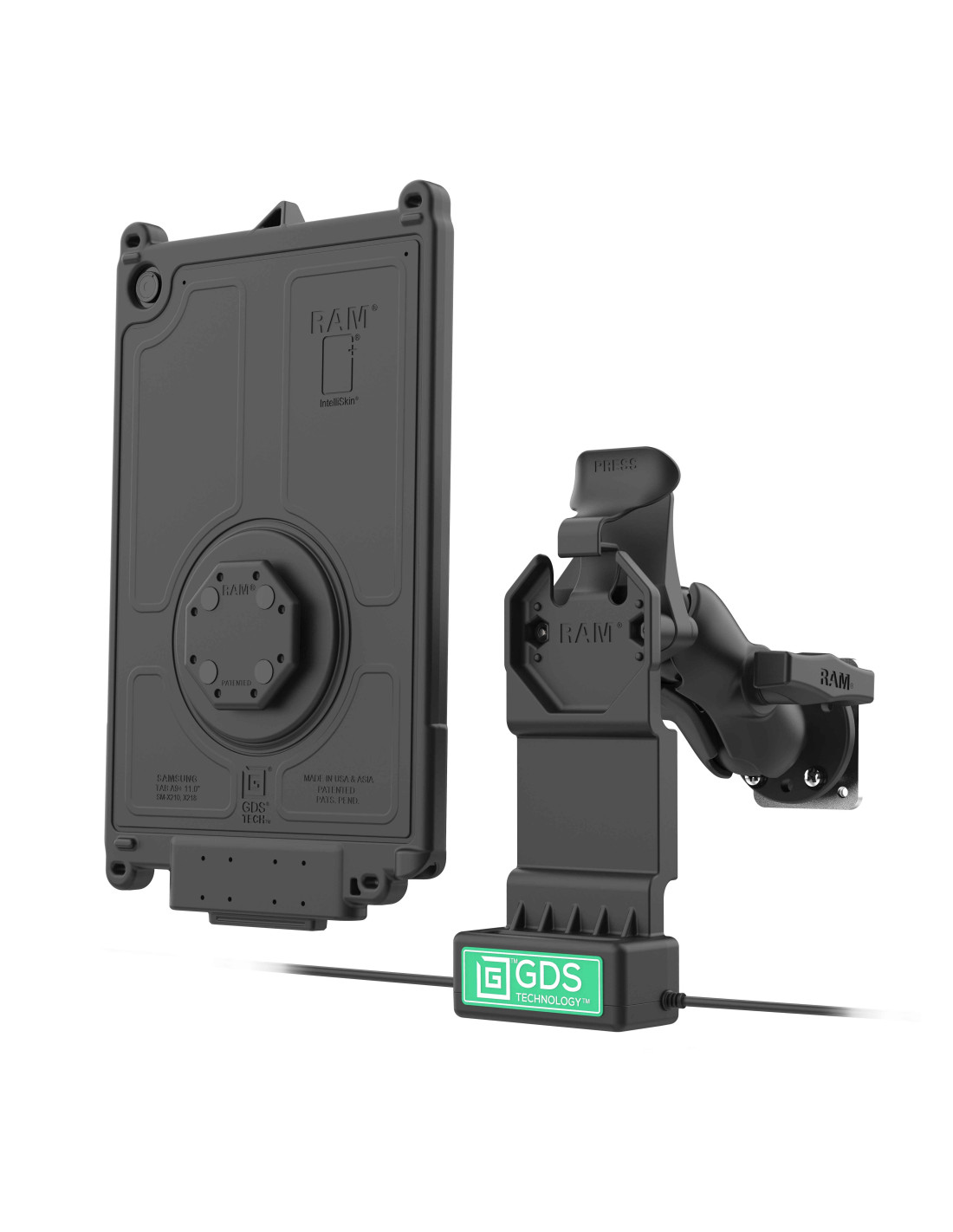

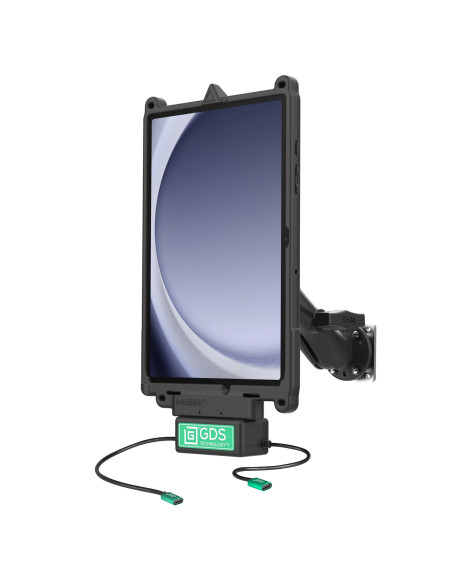

The GDS Uni-Conn Vehicle Bundle + Single USB-C for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT4) is the world's first vehicle dock capable of facilitating push-to-talk communications via a USB Type-C connection. This bundle is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS Uni-Conn dock, Uni-Conn adapter, IntelliSkin for the Tab A9+, and short double ball mount with backing plate. The dock uses a USB Type-C female power connector while the USB-C pigtail allows you to connect one input device such as a mouse, keyboard, scanner gun, & more. The integrated pogo pins connect to the IntelliSkin-wrapped device, providing power while docked. This dock features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. This Push-to-Talk Bundle is only compatible with ESChat and Zello. The GDS Uni-Conn is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All

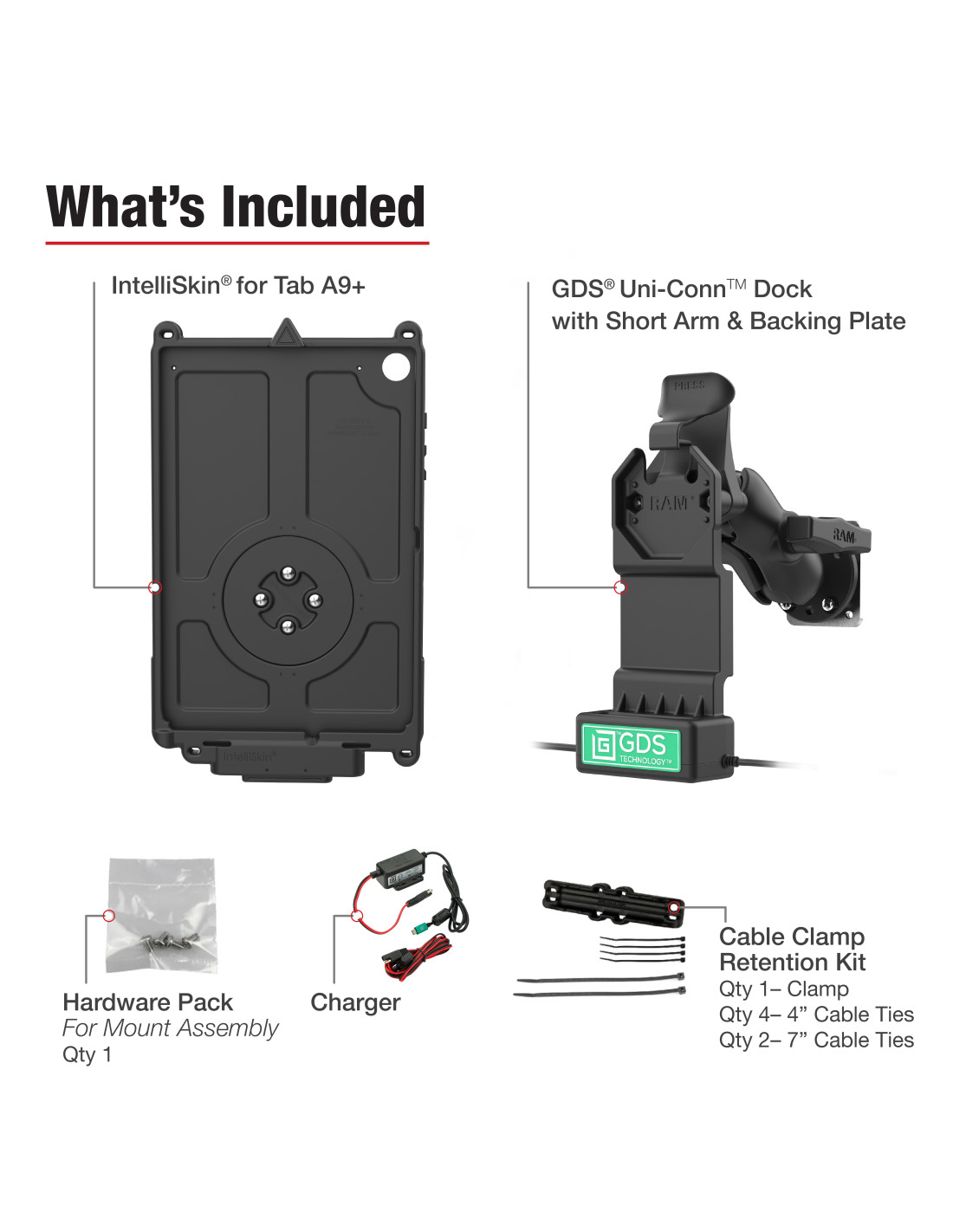

- Bundle includes the GDS® Uni-ConnT dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with short arm, backing plate adapter, and cable clamp
- Dock features GDS® TechnologyT for charging and data sync capabilities; one USB-C port connects to power and one USB-C port connects one input device
- Capable of Push-To-Talk via USB Type-C connection
- RAM® Mounts CompatibleT and compatible with the GDS® Uni-ConnT Adapter with Hand Strap
- Backed by a 3-year warranty
- Components
- RAM-138-B-225B2U
RAM-GDS-CAB-CLAMP2U
RAM-GDS-CAB-CLAMP3U
RAM-GDS-CHARGE-USBC-V7B1-1U
RAM-GDS-DOCK-U1CP-CU
RAM-GDS-SKIN-SAM88-NG
RAM-GDS-U1U - Product Line
- GDS® TechT IntelliSkin®
- Product Type
- Tablet Mounts
- Ball Size
- C Size (1.5")
- Certifications
- E-Mark Certification
IEC/UL 62368-1
RCM Certification - Hardware Included
- (1) 2.10" x 2.60" Steel Backing Plate
(1) Vehicle Hardwire Charger
(2) Cable Clamps
(4) #8 Flat Washers
(4) #8 Split Lock Washers
(4) #8-32 x 1" Screws
Assembly Hardware - Input Cable Length
- 215mm
- Input Connector
- USB Type-C
USB Type-C for 1 Peripheral - Input Voltage
- 10-30VDC
- Materials
- High strength composite
Marine-grade aluminum
Steel - Operating Temperature
- -10°C to +70°C
- Output Cable Length
- 215mm
- Output Current
- 2.5A max
- Output Voltage
- 5-9VDC*
- Packaging Type
- Box
- Peripheral Output
- 500mA
- Product Weight
- 3.96 lb
- Regulatory
- FCC, CE, UKCA, IC
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance - Socket To Socket Length
- 2.5"
- Storage Temperature
- -40°C to +70°C
- Device Compatibility
- Samsung Galaxy Tab A9+
