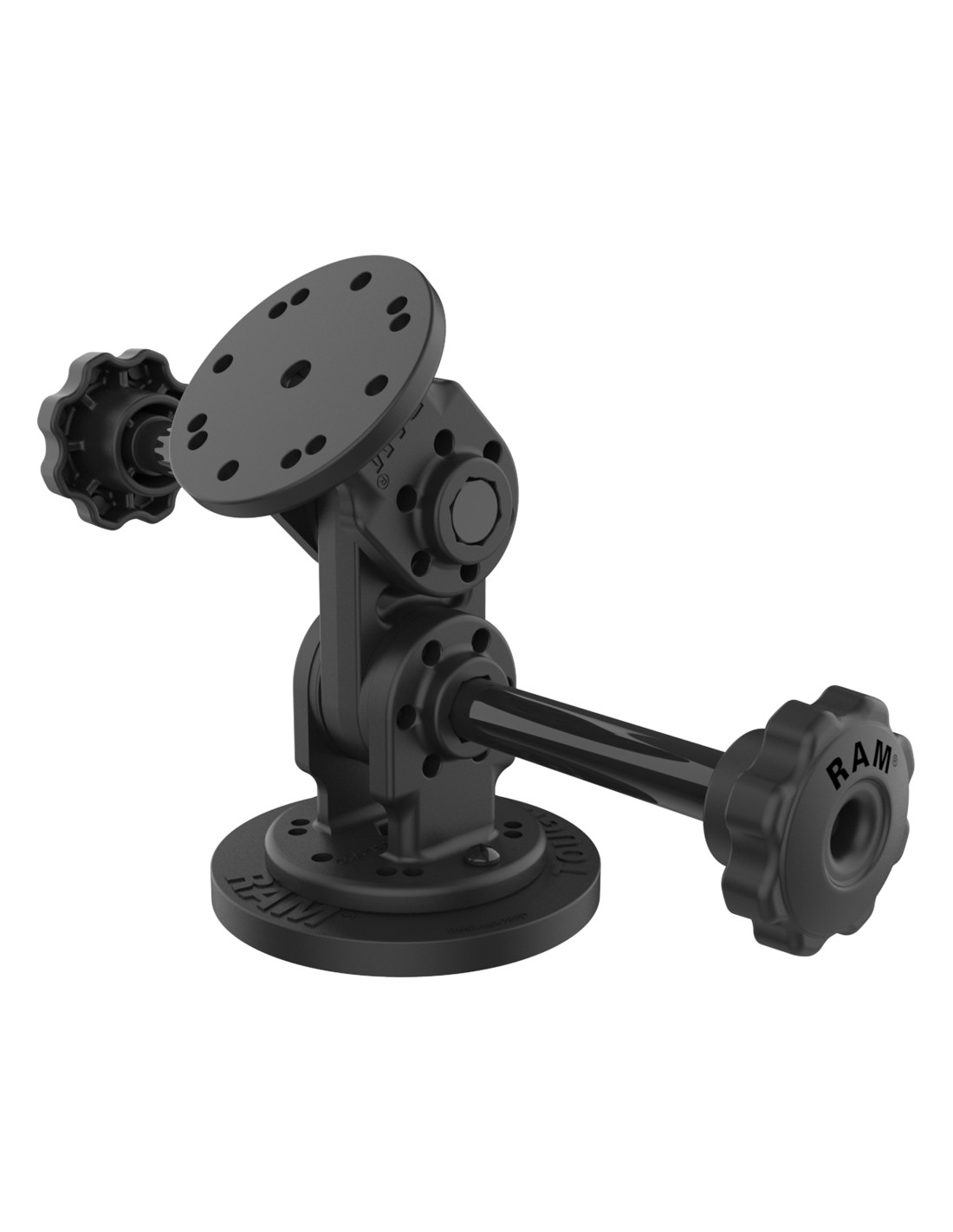

RAM® Dual Straight Pivot Magnetic Mount with Knob

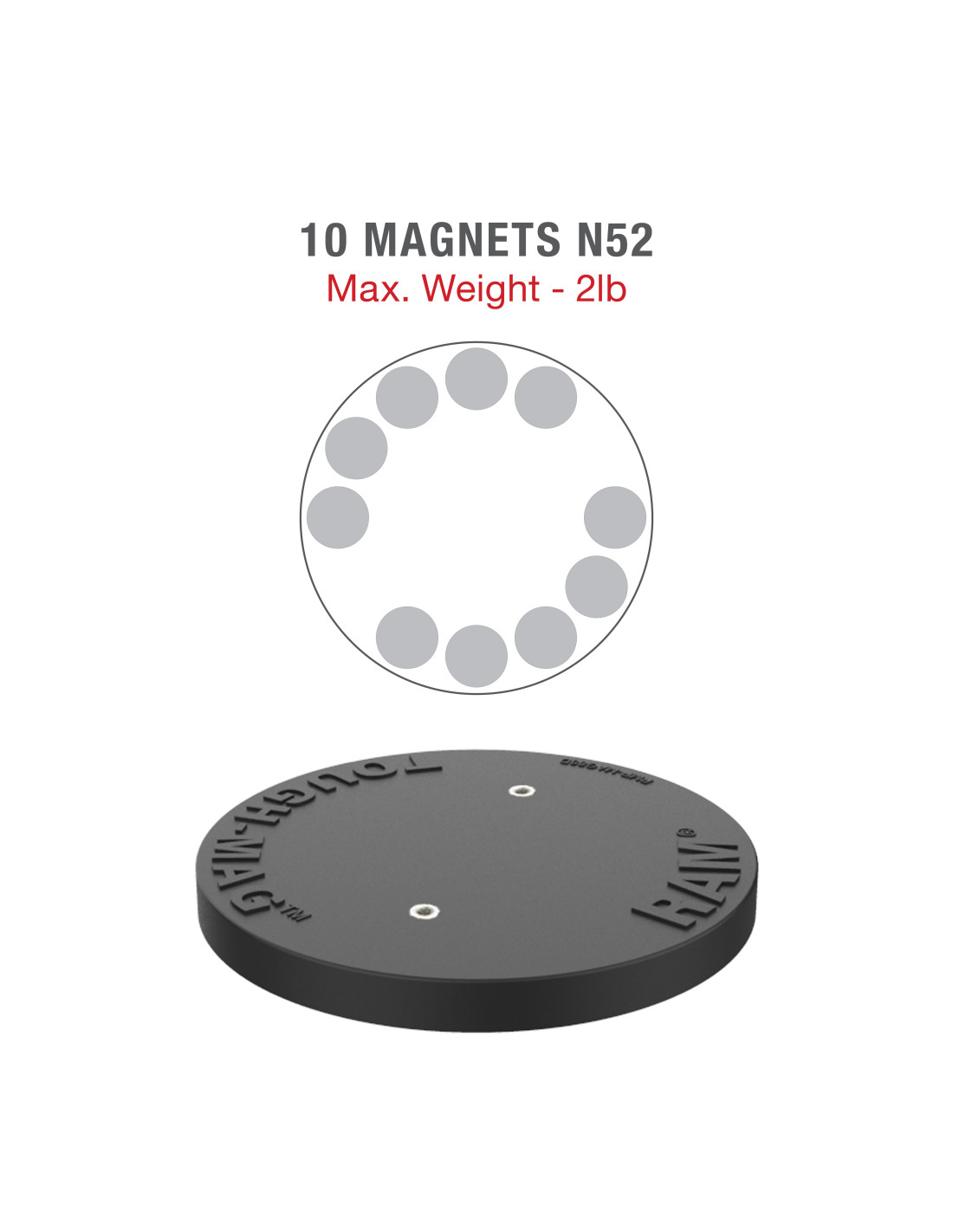

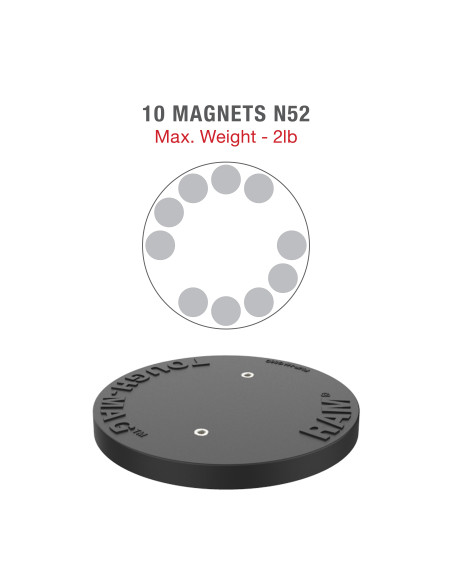

The RAM Dual Straight Pivot Magnetic Mount with Knob (RAP-101-PV4-2S-MAG88U) is a dual articulating, magnetic mounting solution. One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag magnetic base. This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device up to 180-degrees on each joint to achieve the ideal viewing angle. The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.
- Low-profile, magentic mounting solution for heavy-duty environments

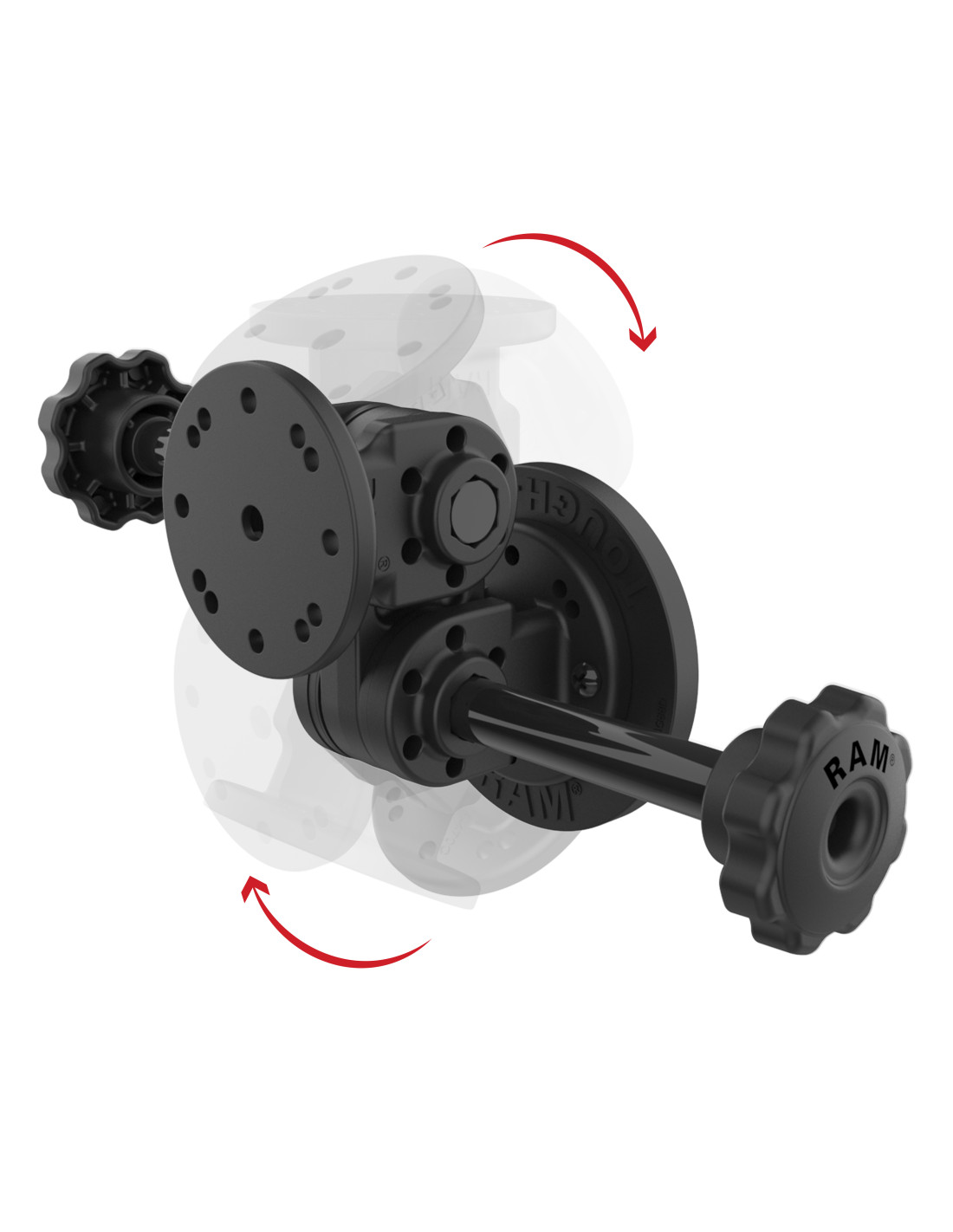

- Dual articulation joints pivot up to 180-degrees on each joint; extended knobs for easy adjustments

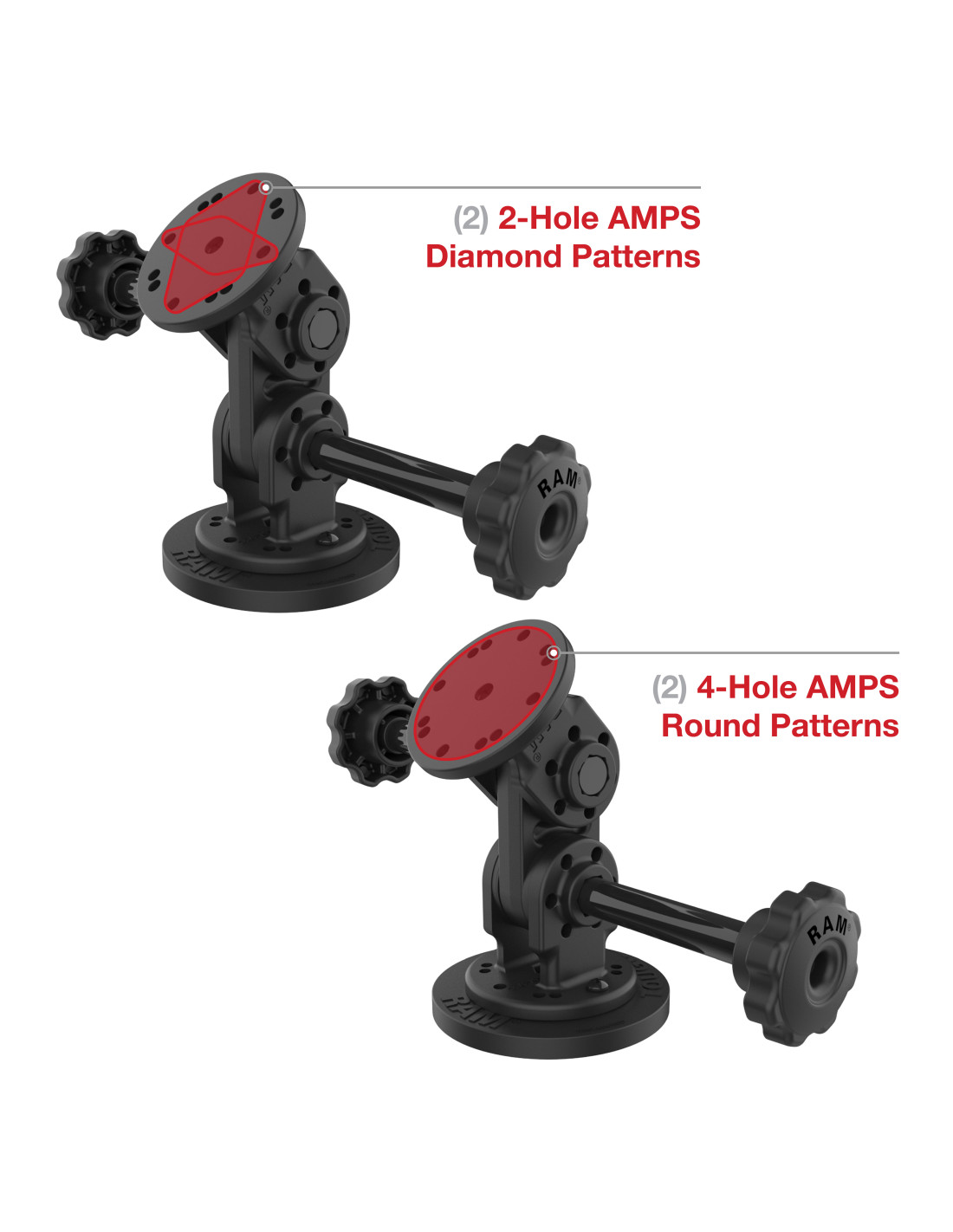

- One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-MagT 88mm base
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
- Components
- RAM-MAG88DU
- Product Line
- Tough-MagT
- Product Type
- Universal Mounts
- Hole Pattern
- 2-Hole AMPS: 1.912"
4-Hole AMPS: 1.181" x 1.496" - Materials
- High strength composite
- Packaging Type
- Poly Bag
- Plate Size
- Magnetic Base: 3.46" Diameter

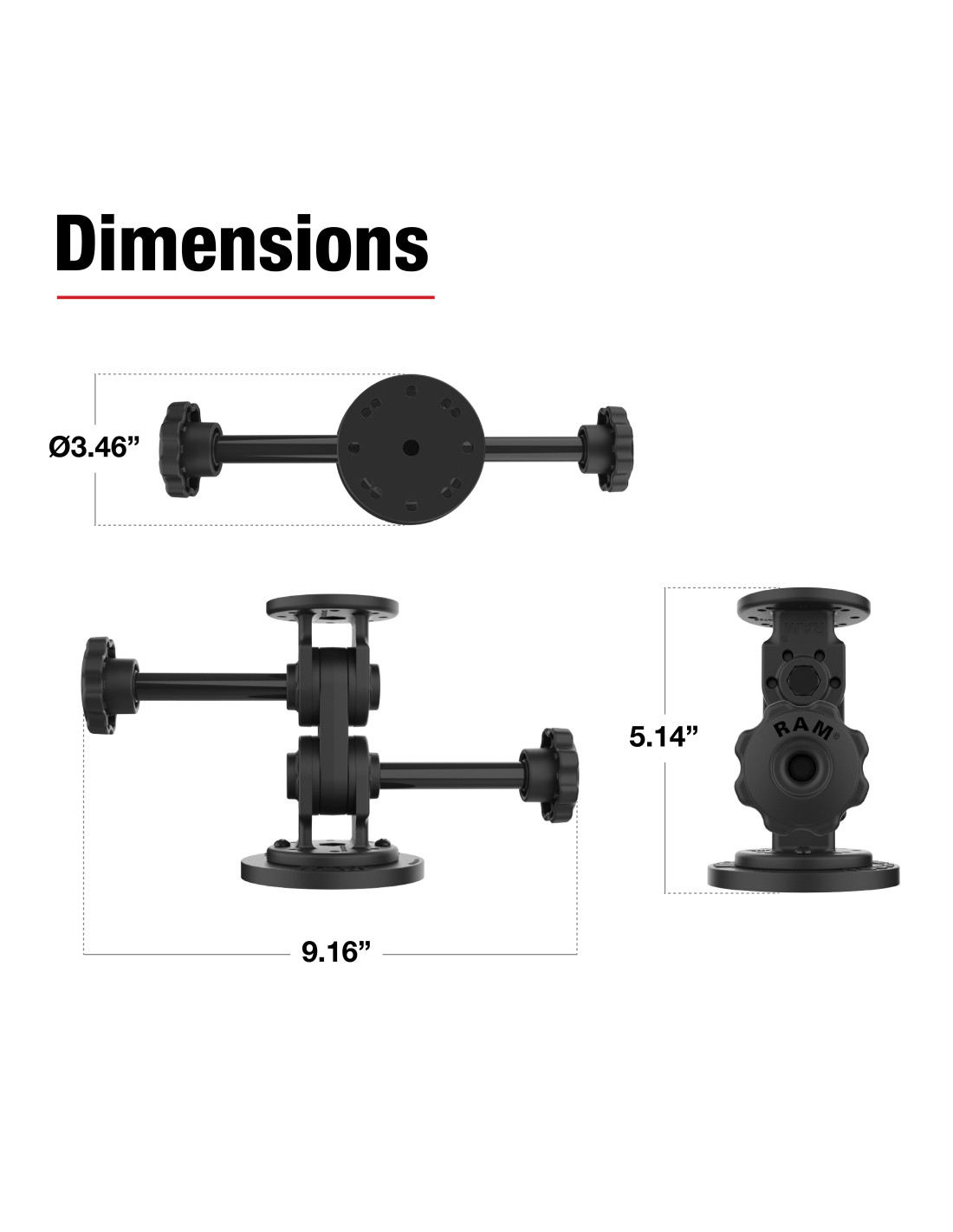

Top Plate: 2.5" Diameter - Product Dimensions
- Overall Height: 5.14"
Overall Width with Knobs: 9.16" - Product Weight
- 1.11 lb
