RAM-GDS-HUB-TYPEC-DL1

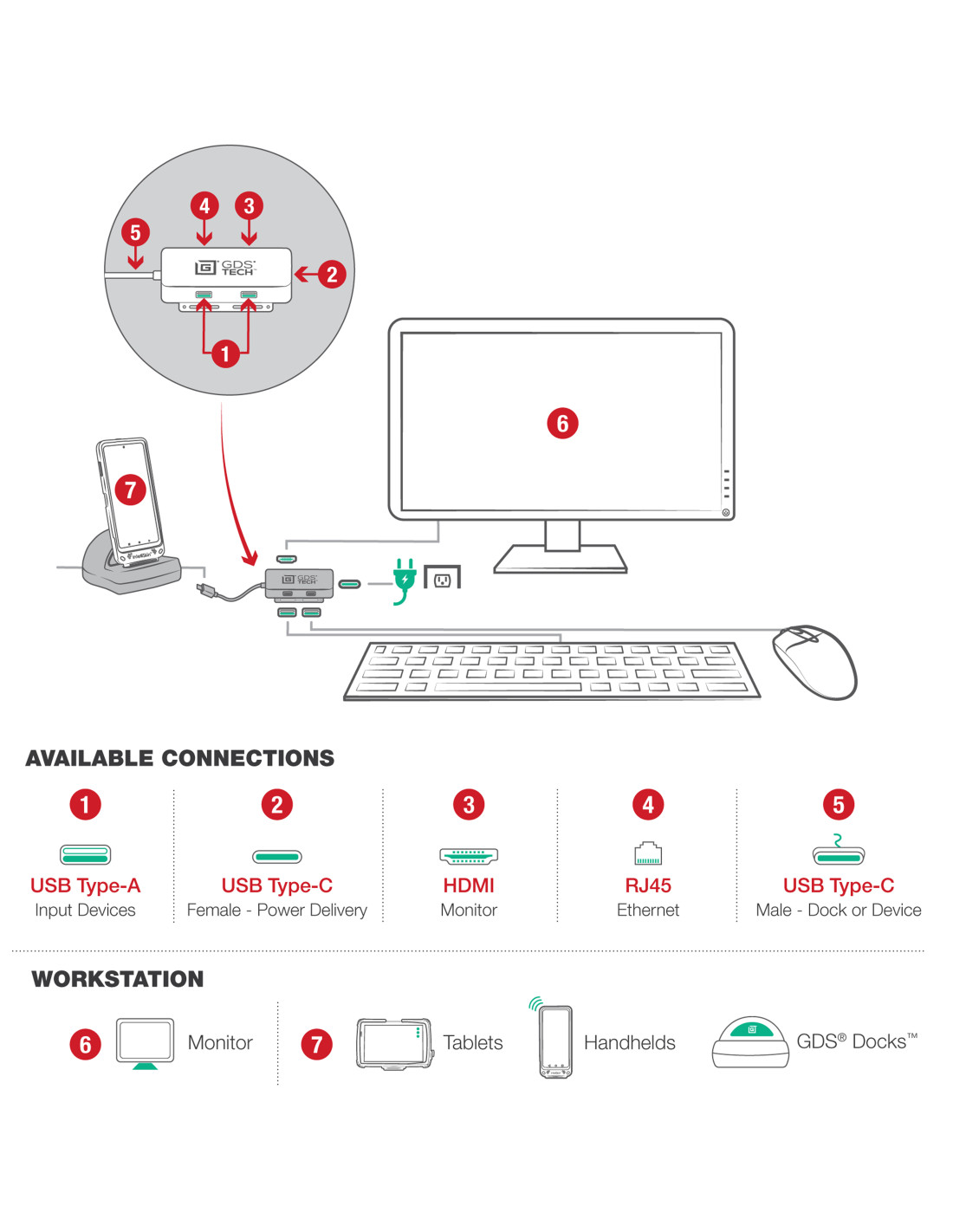

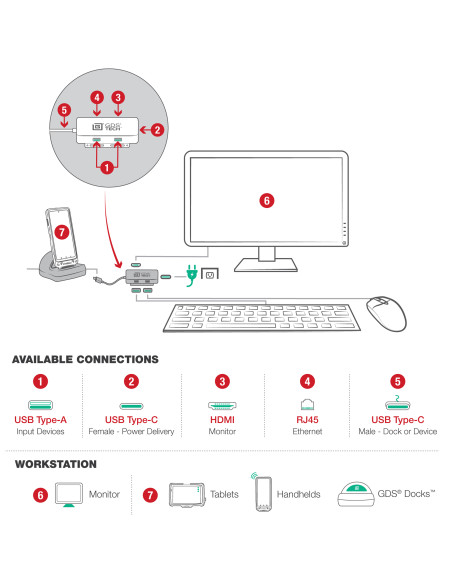

The GDS Hub With USB Type-C for Zebra Workstation Connect (RAM-GDS-HUB-TYPEC-DL1) is a versatile extension to any desk setupeasily connect keyboards, mice, USB drivers, monitors, ethernet, and more. This connector features two USB-A ports, one HDMI, one RJ45 (Ethernet), one USB-C female pigtail to connect your device, and one USB-C Power Delivery (PD) pass-through port that powers the device and input devices. Users can plug their device directly into the hub or connect a GDS Desktop Dock to provide a clear docking station that keeps the device upright and usable. Built primarily for Zebra Workstation Connect, this hub is also compatible with other desktop experience-enabling devices.. Always Protected. Always Connected.

  • Connect peripheral devices monitor, and ethernet using the two USB-A, one RJ45, and one HDMI port
  • USB Type-C pigtail connector supports most phones and tablets; connect GDS® Decktop Dock for IntelliSkin®-wrapped devices
  • USB-C port provides power to connected device and accessories via Power Deliver (PD) pass-through
  • Backed by a 3-year warranty

Product Line
GDS® HubT GDS® TechT
Product Type
Components
Operating Temperature
-20°C to +70°C
Packaging Type
Retail Box
Ports
(3) USB-A 3.0 Ports - One supports BC 1.2 with power up to 7.5W (5V/1.5A)
(1) USB-C PD 3.0 Port - Supports both data (5Gbps) and PD Charging 100W (20V @ 5A)
(1) USB-C Male Connector - Supports both data (5Gbps) and PD Charging 100W (20V @ 5A)
Product Weight
0.45 lb
Regulatory
FCC, IC, CE, RoHS, WEEE, USB-IF 3.1 Certification
Storage Temperature
-30°C to +70°C
Transfer Speed
USB 3.0 (5Gbps)
Device Compatibility
Zebra EC50
Zebra EC55
Zebra ET40x
Zebra TC22
Zebra TC53
Zebra TC58
Zebra TC73
Zebra TC78
793442024092
