RAM-GDS-U1-SAM88-KIT2

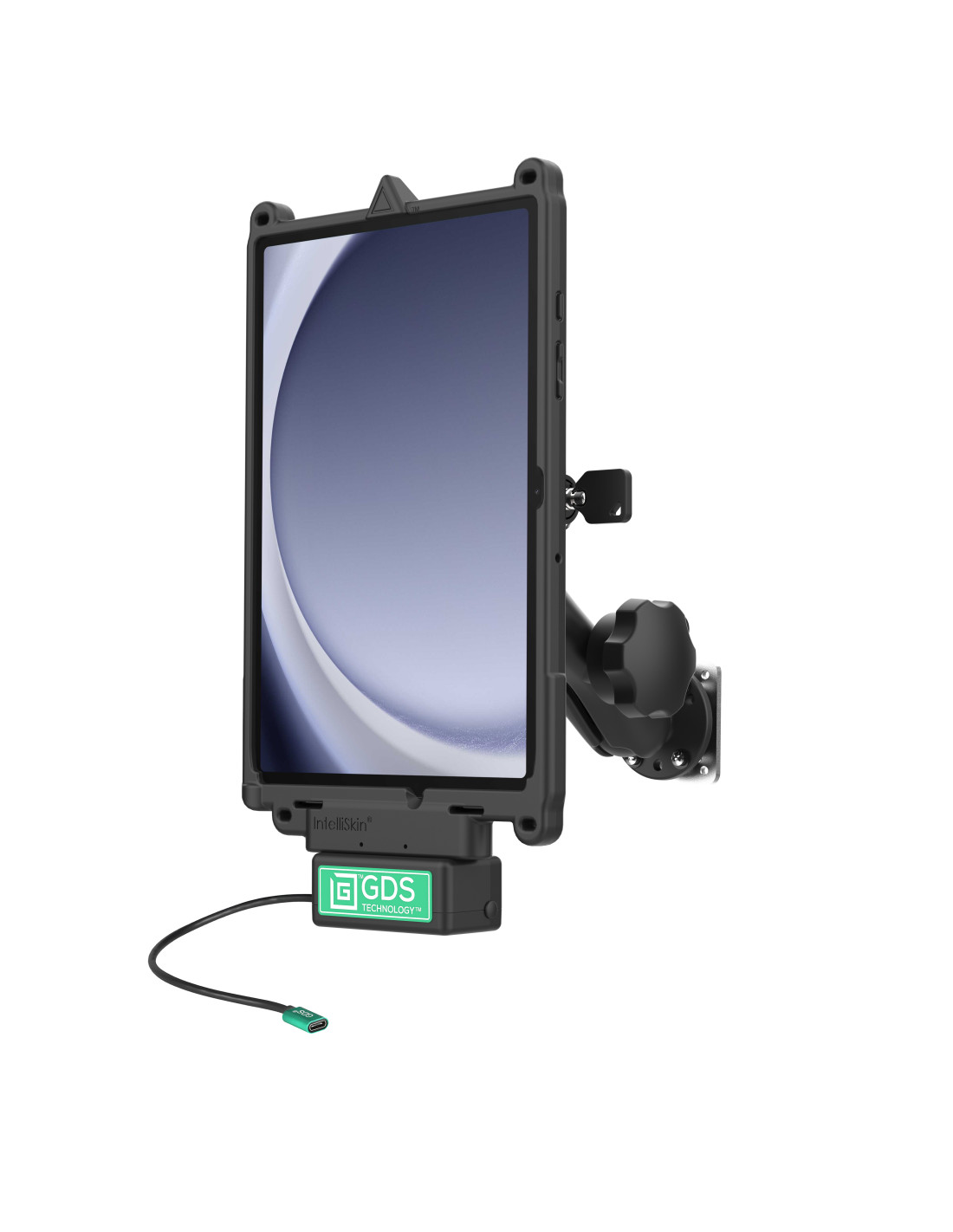

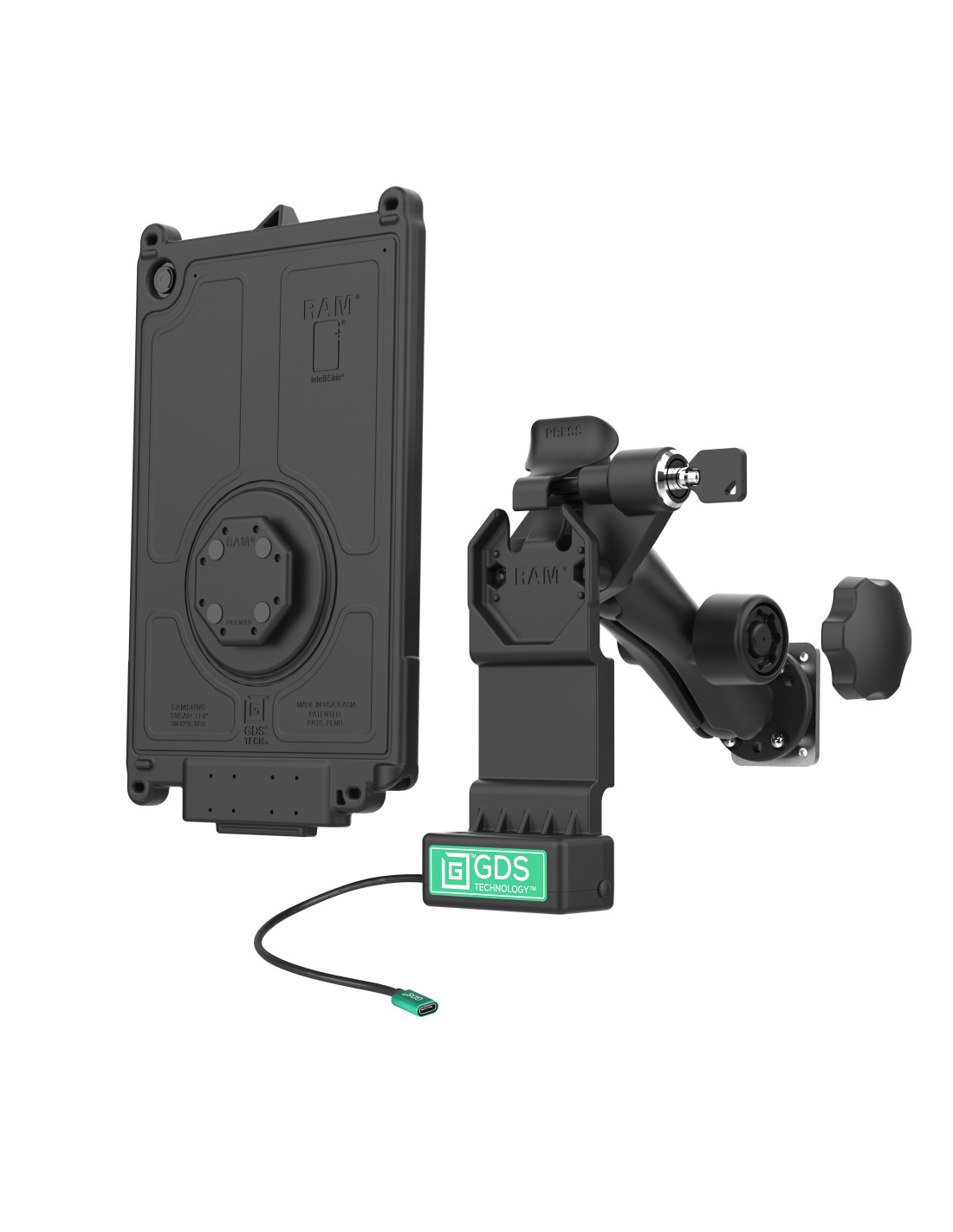

The GDS Uni-Conn Locking Vehicle Bundle for Samsung Tab A9+ (RAM-GDS-U1-SAM88-KIT2) is a comprehensive kit of everything needed to deploy the Tab A9+ in your fleet. It contains one GDS Uni-Conn locking dock with right lock, Uni-Conn adapter, IntelliSkin for the Tab A9+, and double ball mount with backing plate. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The GDS Uni-Conn is backed by a 3-year warranty. Warranty is void if the lever stop is not installed. Always Protected. Always Connected. One Dock to Connect Them All

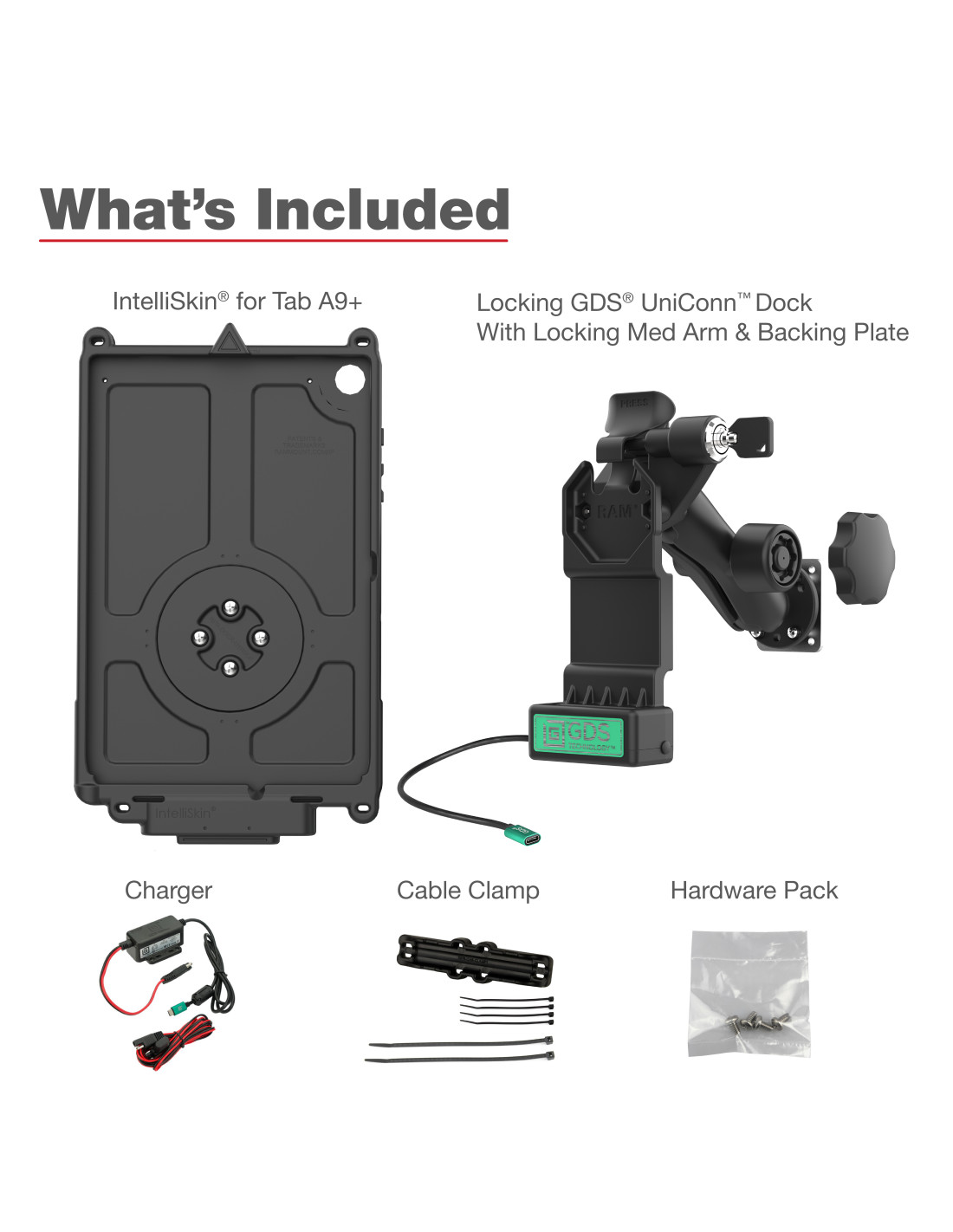

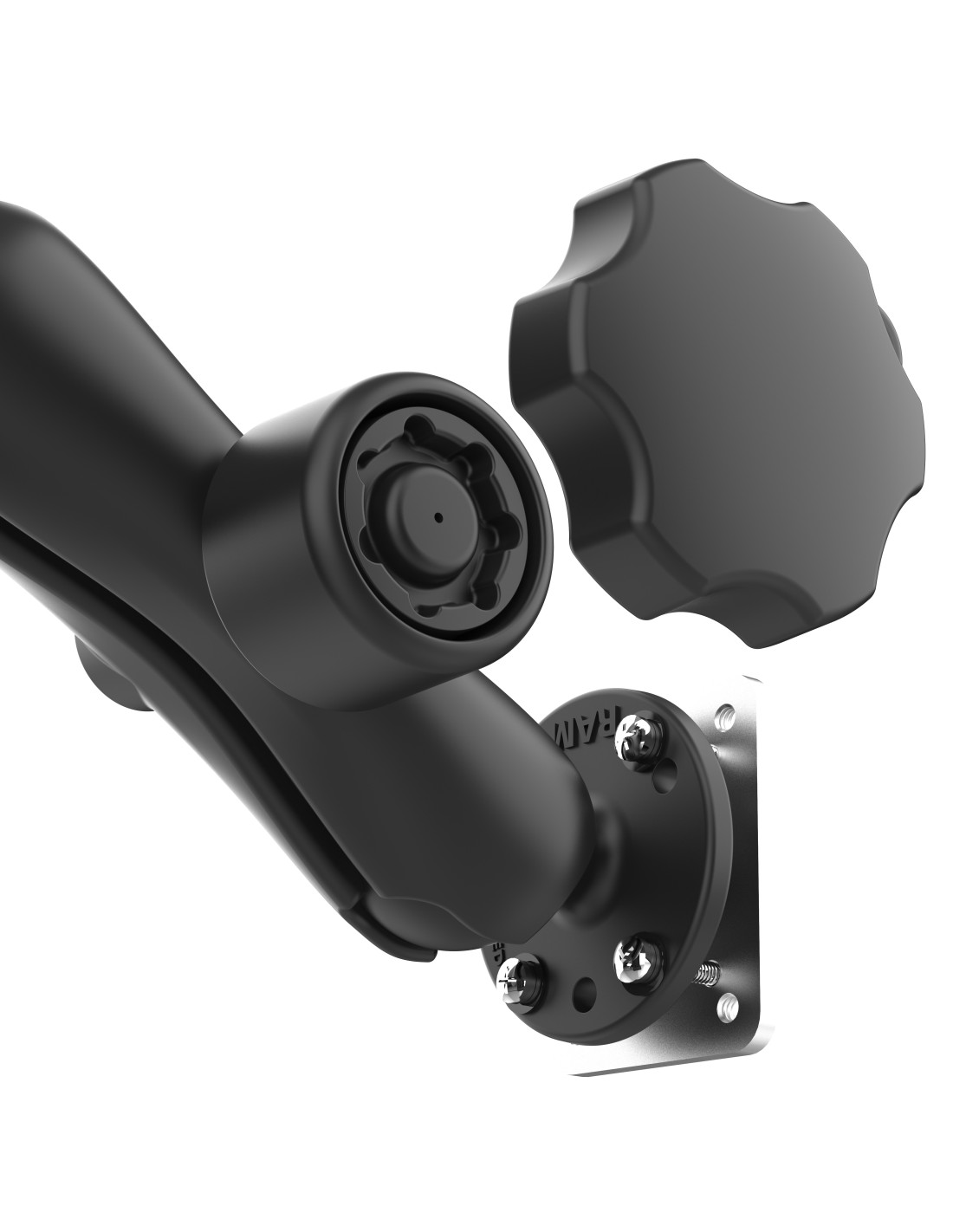

  • Bundle includes the GDS® Uni-ConnT right locking dock, Uni-Conn adapter, IntelliSkin® Next Gen for Samsung Tab A9+, C size double ball mount with medium arm, backing plate adapter, and cable clamp
  • Dock features GDS® TechnologyT for charging capabilities; uses USB-C port to connect to power
  • Uni-ConnT dock features an easy device insertion and removal

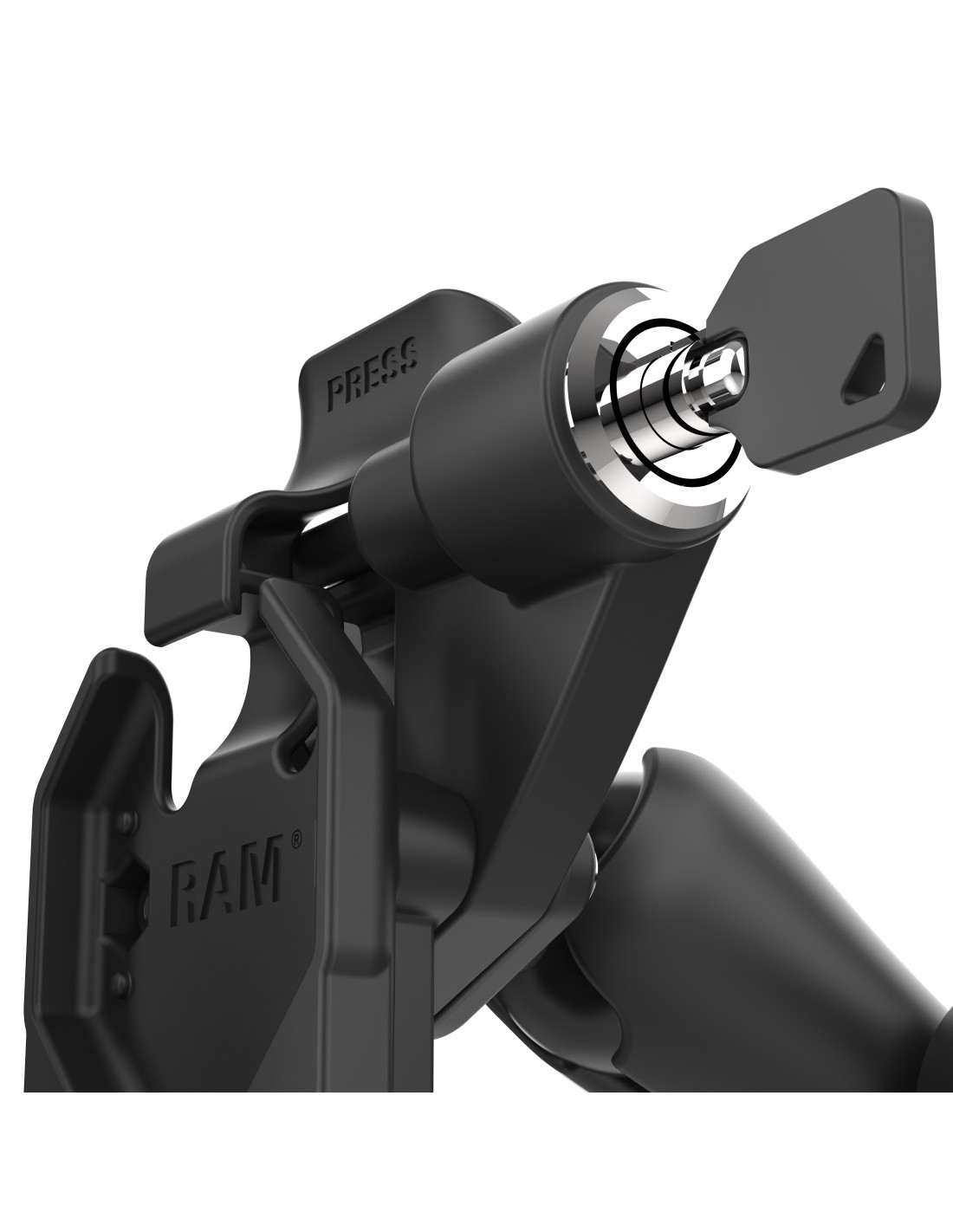

  • Uni-ConnT dock's right lock provides additional theft deterrence
  • Backed by a 3-year warranty

Components
RAM-201-SU
RAM-202-225-2U
RAM-238U
RAM-GDS-CHARGE-USBC-V7B1-1U
RAM-GDS-DOCKLR-U1CPU
RAM-GDS-SKIN-SAM88-NG
RAM-GDS-U1U
Product Line
GDS® TechT IntelliSkin®
Product Type
Tablet Mounts
Ball Size
C Size (1.5")
Certifications
E-Mark Certification
IEC/UL 62368-1
RCM Certification
Hardware Included
(1) 2.10" x 2.60" Steel Backing Plate
(1) Cable Clamps
(1) USB Cable
(1) Vehicle Hardwire Charger
(2) Keys
(4) #8 Flat Washers
(4) #8 Split Lock Washers
(4) #8-32 x 1" Screws
Assembly Hardware
Input Voltage
10-30VDC
Materials
High strength composite
Marine-grade aluminum
Steel
Operating Temperature
-10°C to +70°C
Output Current
2.5A max
Output Voltage
5-9VDC*
Packaging Type
Poly Bag
Product Weight
3.40 lb
Regulatory
FCC, CE, UKCA, IC
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Socket To Socket Length
4.66"
Storage Temperature
-40°C to +70°C
Device Compatibility
Samsung Galaxy Tab A9+
793442021787
