RAM-GDS-DOCKLF-SAM54NCPU

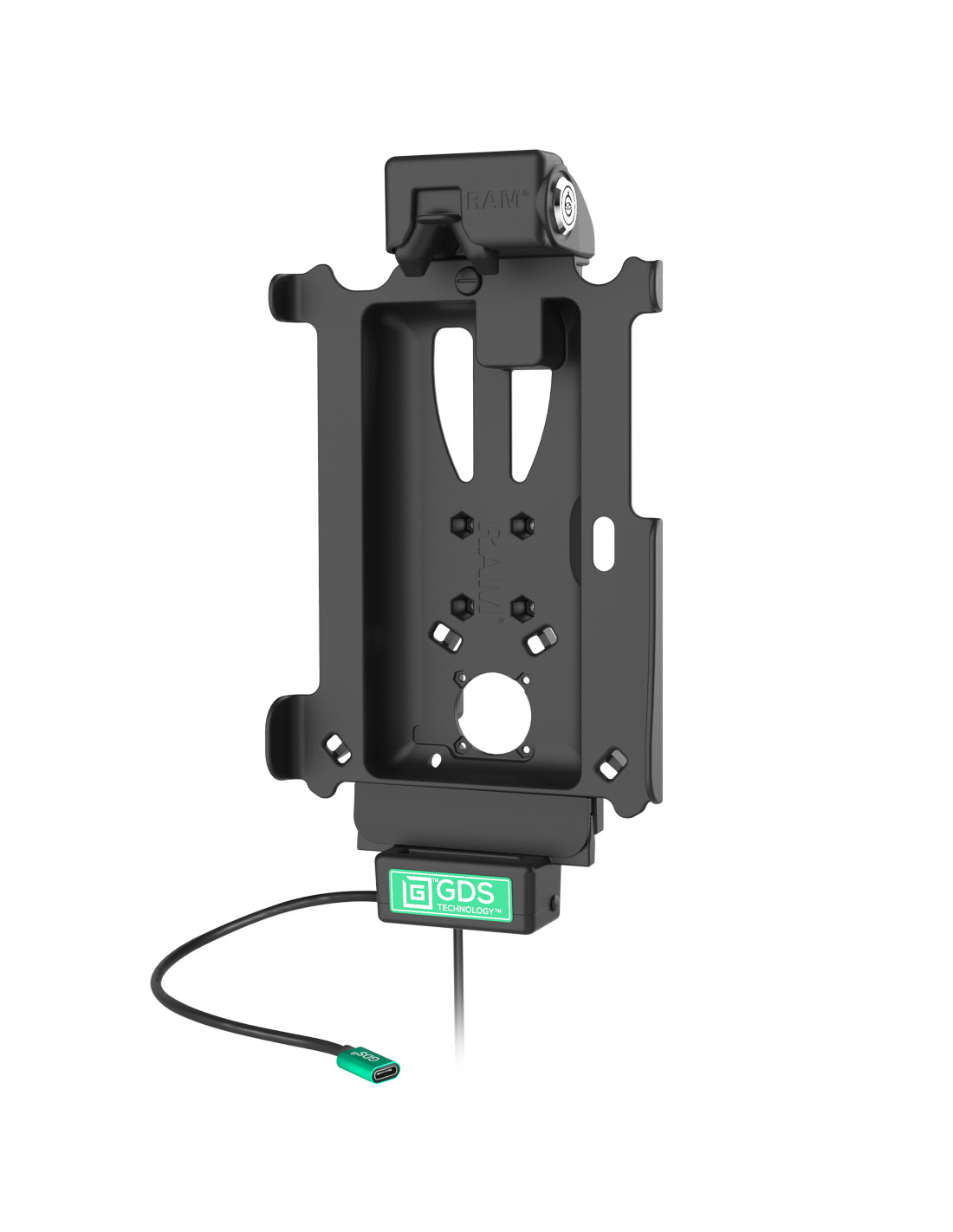

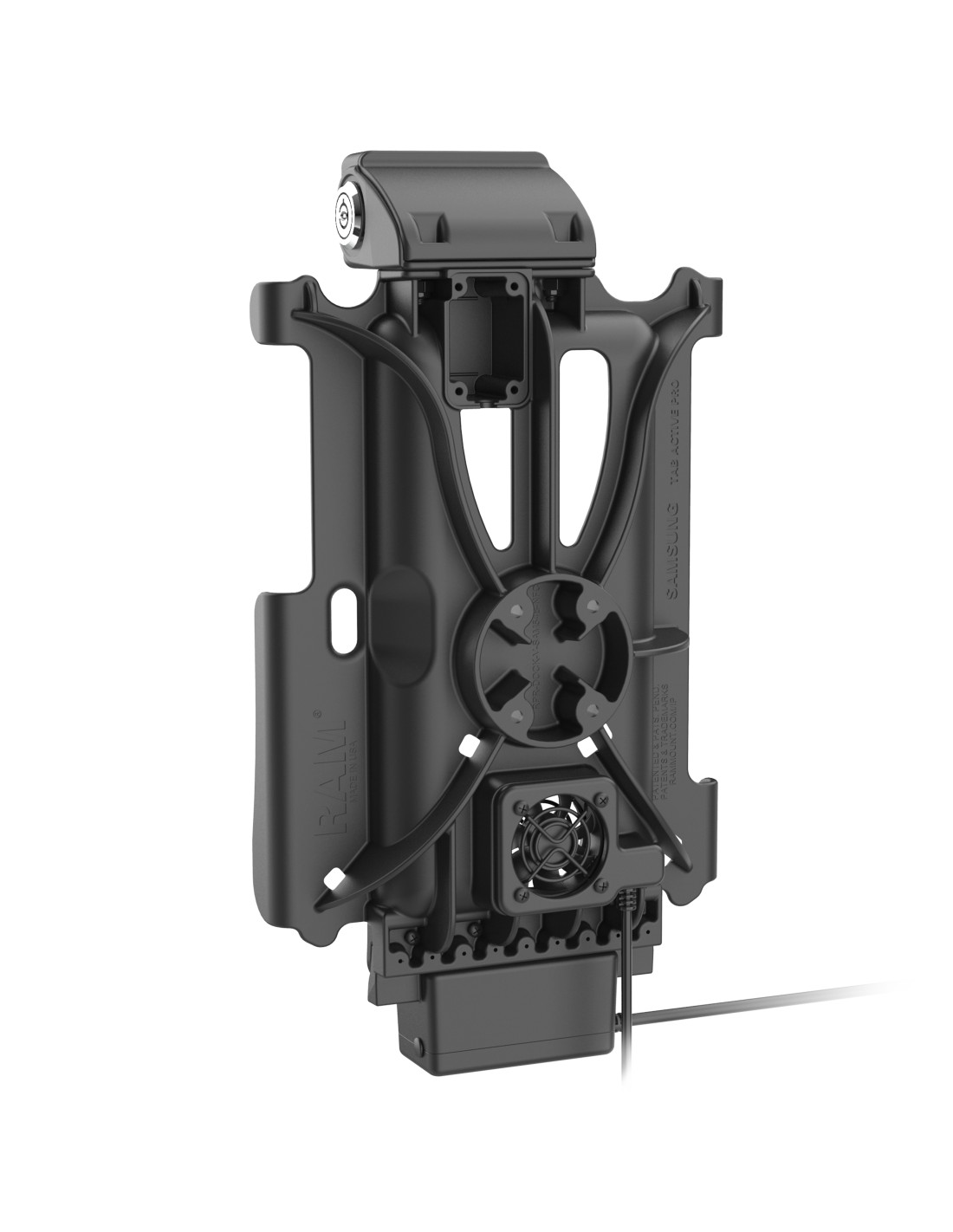

The GDS Cool-Dock is the upgraded version of the GDS Tough-Dock including a key-locking system and a built-in 12-VDC Axial cooling fan with a 2.2 meter long hardwire charge. The GDS Cool-Dock is the turnkey vehicle dock in the GDS Tech line of vehicle docks designed to support the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro in a IntelliSkin Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS Cool-Dock supports high speed charging capabilities for the device. The GDS Cool-Dock is designed with housing that accommodates the RAM NFC Extender, is compatible with RAM ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS Cool-Dock is backed by a 3-year warranty. Always Protected. Always Connected.

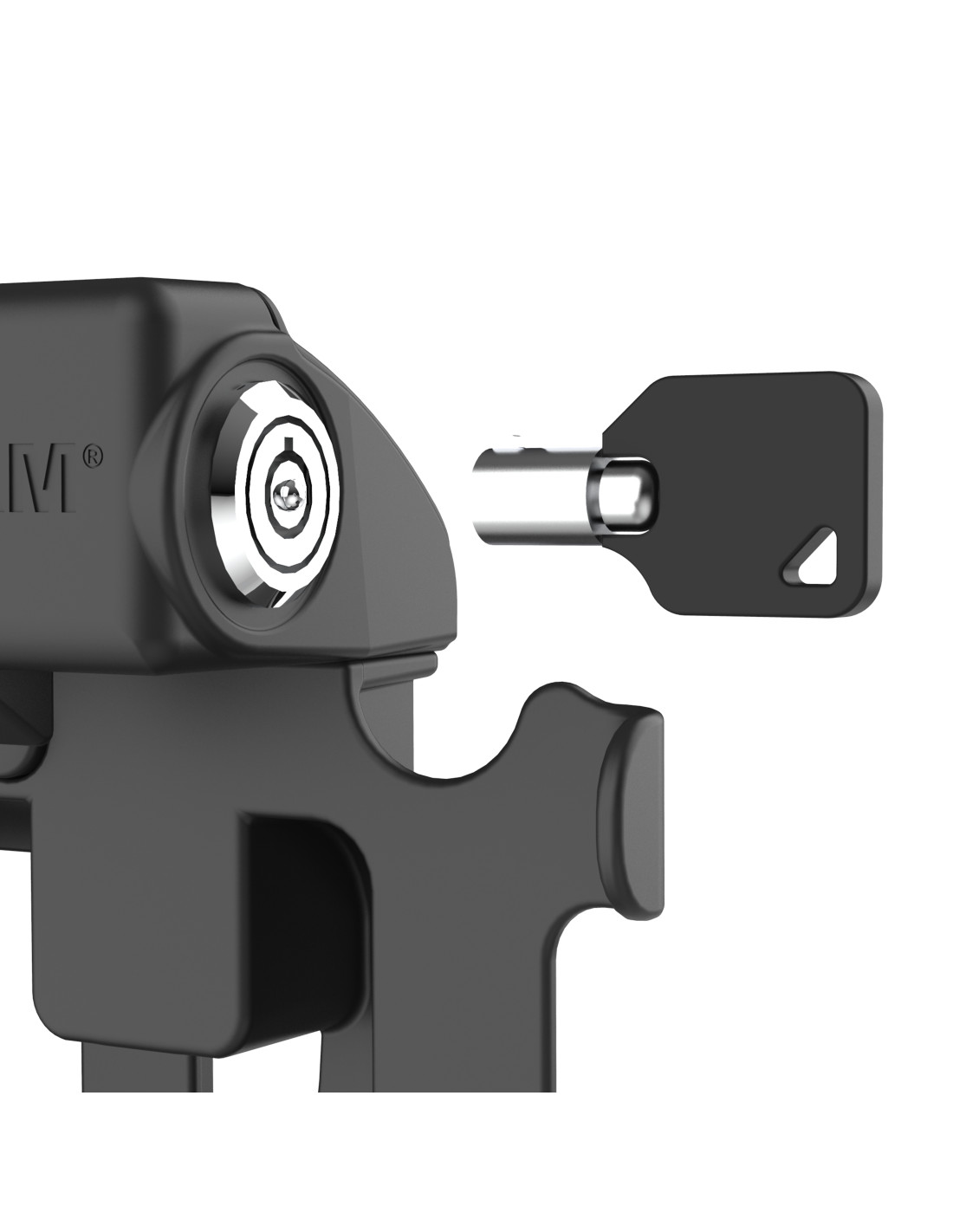

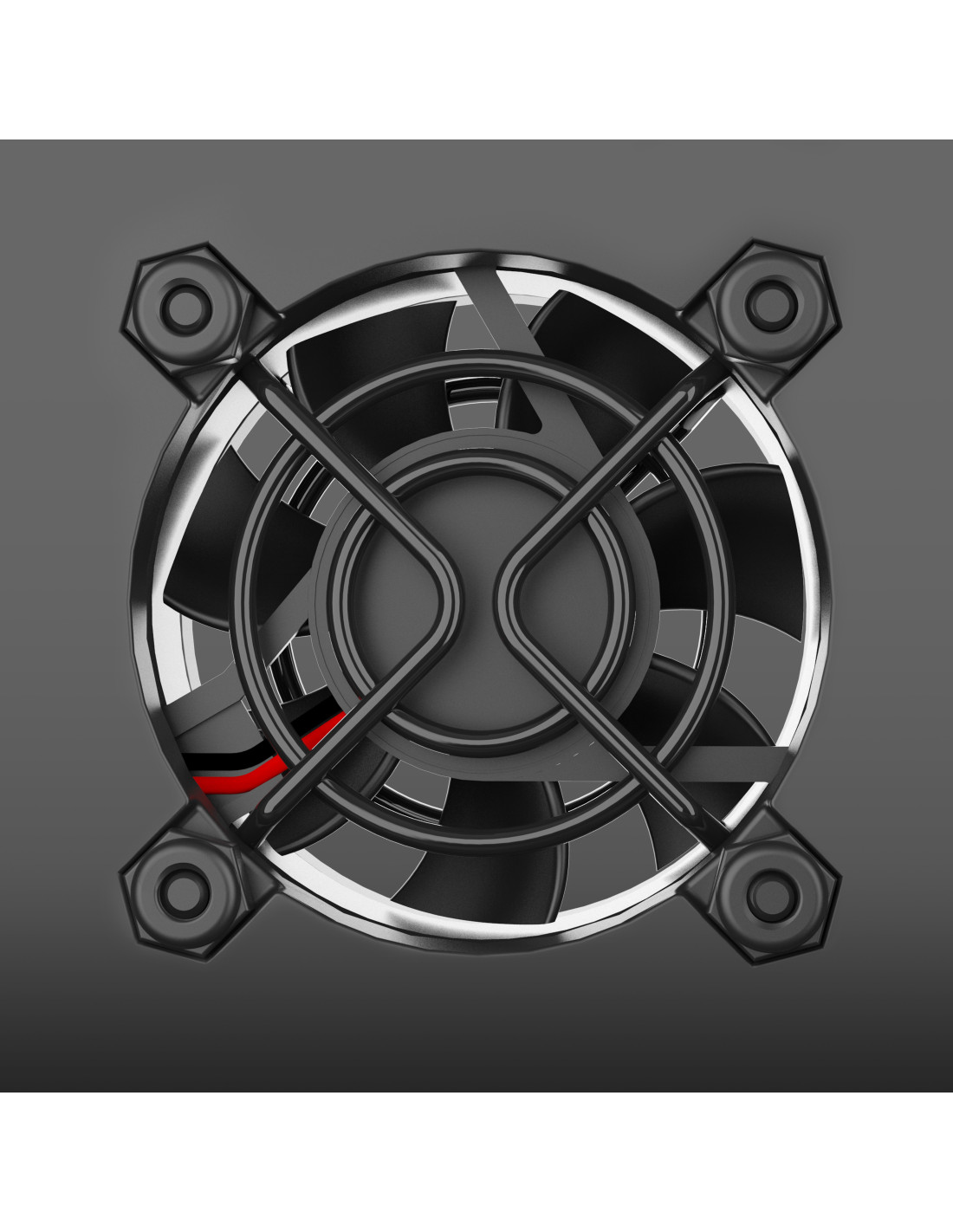

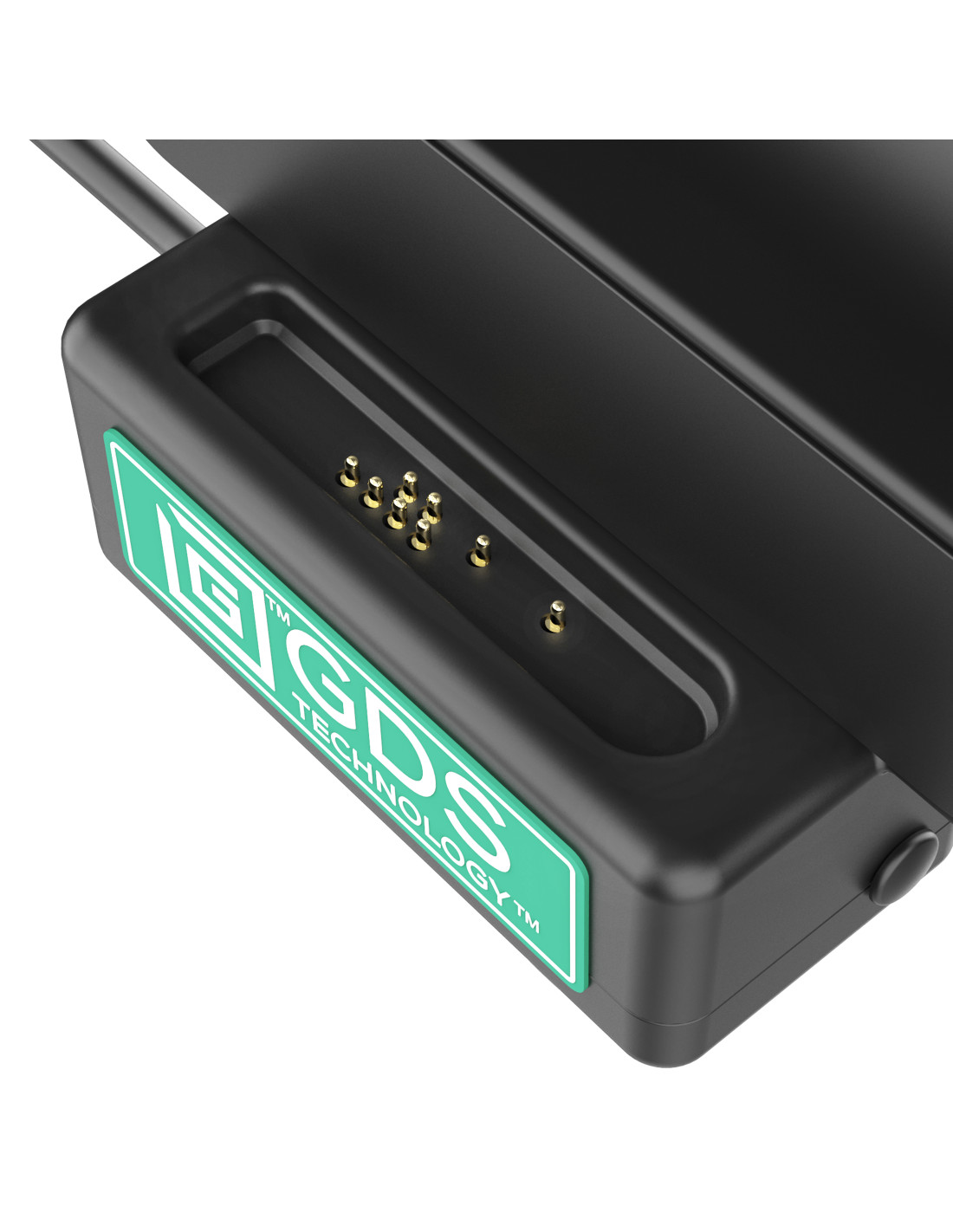

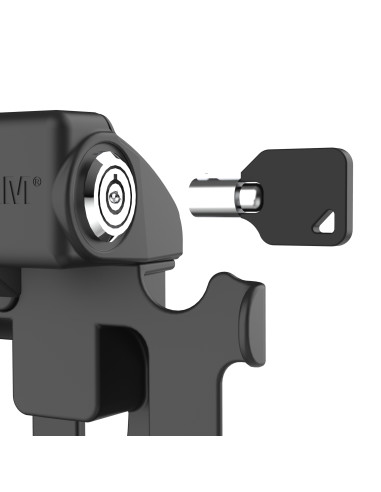

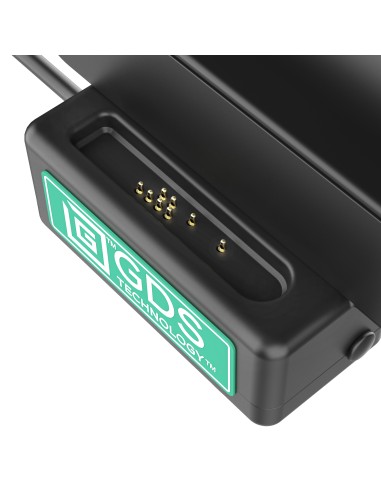

  • Spring-loaded key-locking vehicle dock featuring GDS® TechnologyT uses an integrated pogo pin connector to provide high speed charging; Includes built-in 12-VDC Axial cooling fan with 2.2m long hardwire power cable and SAE quick disconnect for hardwire installation

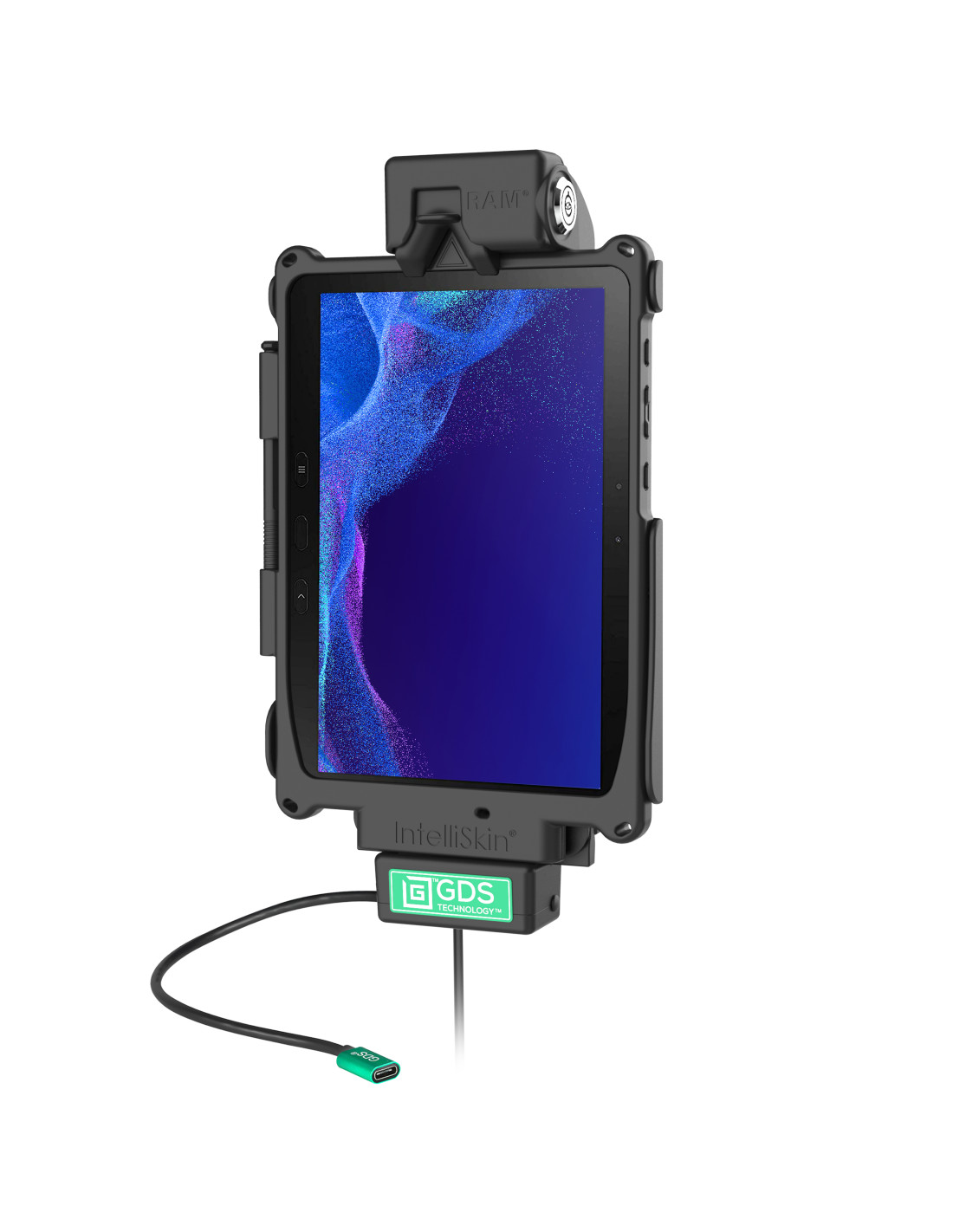

  • Designed specifically for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve
  • Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
  • RAM® Mounts CompatibleT including RAM® NFC Extender and GDS® Hand-StandT Hand Strap and Kickstand
  • Backed by a 3-year warranty

Components
RAM-GDS-DOCKL-SAM54NCPU
RAM-GDS-FAN1U
Product Line
GDS® TechT Cool-DockT
Product Type
Components
Hardware Included
(1) USB Type-C to Type-A Cable
(2) Keys
(4) #8-32 Nylock Nuts
(4) #8-32 x 5/8" Machine Screws
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Connector
USB Type-C
Materials
High strength composite
Output Voltage
5V - 12V @ 3A
Packaging Type
Poly Bag
Power Output
15W
Product Weight
1.82 lb
Device Compatibility
Samsung Galaxy Tab Active4 Pro with IntelliSkin® Next Gen
Samsung Galaxy Tab Active5 Pro with IntelliSkin® Next Gen
Samsung Galaxy Tab Active Pro with IntelliSkin® Next Gen
793442019869
