RAM® 2.5" Square Post Clamp Mount with 100x100mm VESA Plate
  • Nuevo
RAM® 2.5" Square Post Clamp Mount with 100x100mm VESA Plate

RAM® 2.5" Square Post Clamp Mount with 100x100mm VESA Plate

RAM-246-247U-25

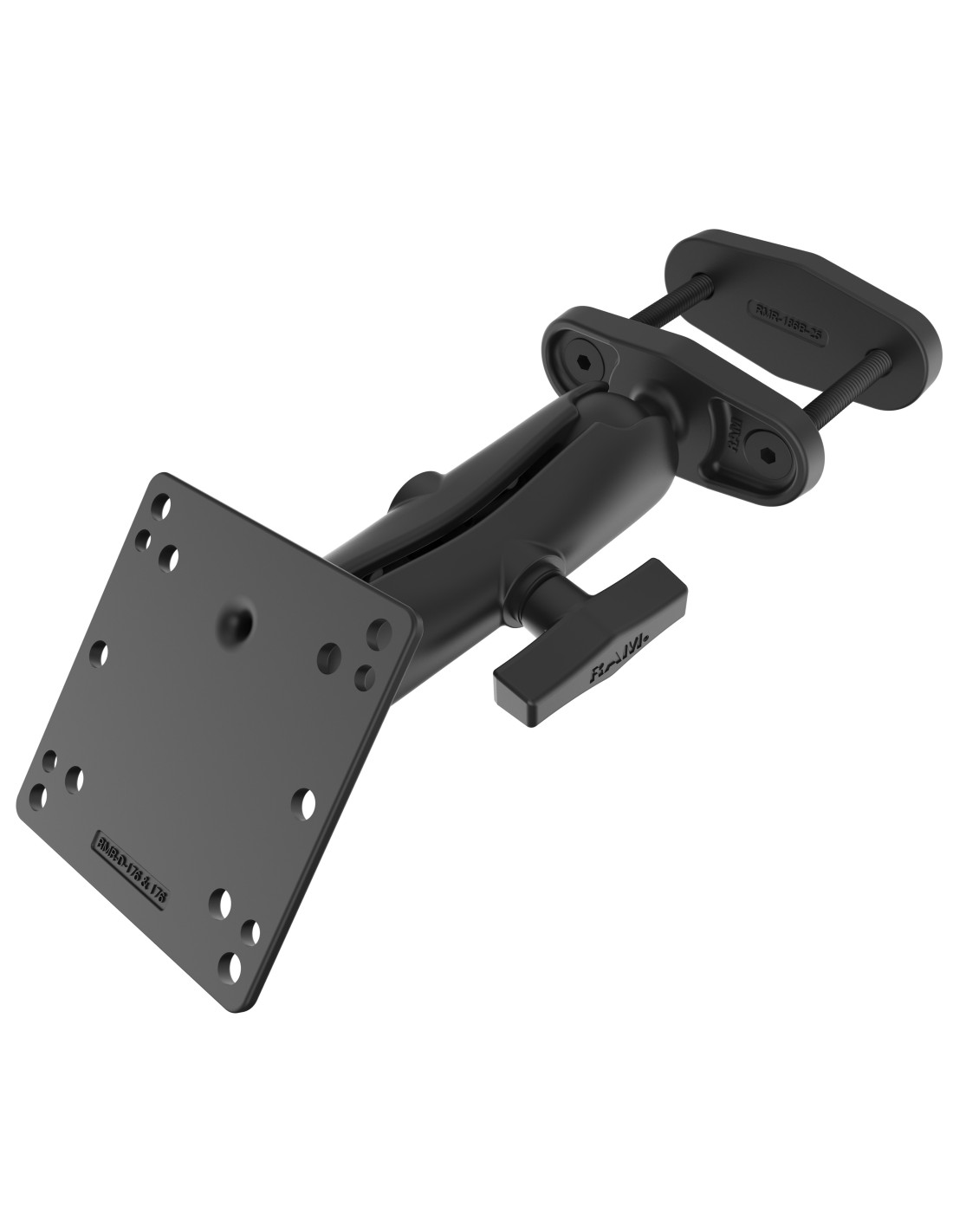

The RAM-246-247U-25 consists of a medium length double socket arms, a VESA plate with 75mm and 100mm VESA hole patterns, as well as a clamping base for square posts up to 2.5" wide.

Components
RAM-201U
RAM-246U
RAM-247U-25
Device Type
Monitor
Product Type
Monitor Mounts
Vehicle Type
Forklift
Lift Truck
Ball Size
C Size (1.5")
Clamp Range
2.5" max width
Hardware Included
(2) 5/16"-18 Nylock Nuts
(2) 5/16"-18 x 3" Machine Screws
(4) .312" x .187" Shoulder Washers
Hole Pattern
See Drawing
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Product Weight
2.01 lb
Socket To Socket Length
4.66"
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442901744
