RAP-B-365-224-202AU

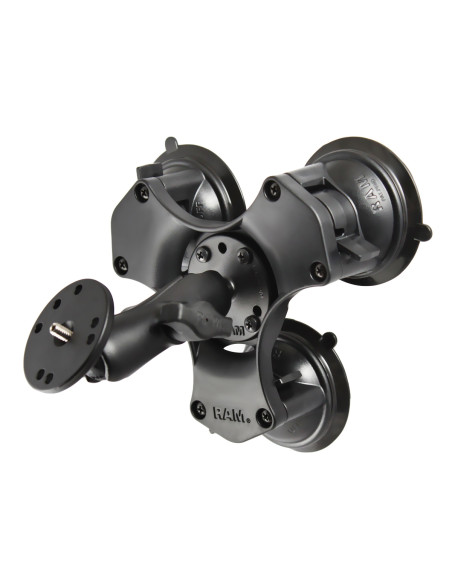

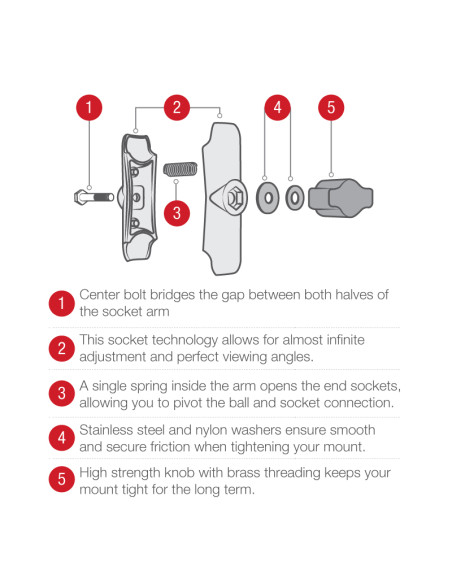

The RAP-B-365-224-202AU consists of a triple 3.3" diameter suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Components
RAM-B-201U
RAM-B-202AU
RAP-B-365-224-1U
Device Type
Camera
Product Line
Twist-LockT
Product Type
Camera Mounts
Ball Size
B Size (1")
Hardware Included
Assembly Hardware
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Materials
Marine-grade aluminum
High strength composite
Packaging Type
Poly Bag
Plate Size
2.5" Diameter
Product Weight
1.26 lb
Socket To Socket Length
3"
Suction Size
(3) 3.3" Diameter Bases, Total Width 7.95"
Thread Pitch
1/4"-20 x .25"
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
Device Compatibility
Cameras that contain 1/4"-20 Female Threaded Hole
793442927515
