RAM® Composite Universal Marine Electronic Mount - Medium
RAM® Composite Universal Marine Electronic Mount - Medium
  • Nuevo
RAM® Composite Universal Marine Electronic Mount - Medium
RAM® Composite Universal Marine Electronic Mount - Medium

RAM® Composite Universal Marine Electronic Mount - Medium

RAP-B-111U

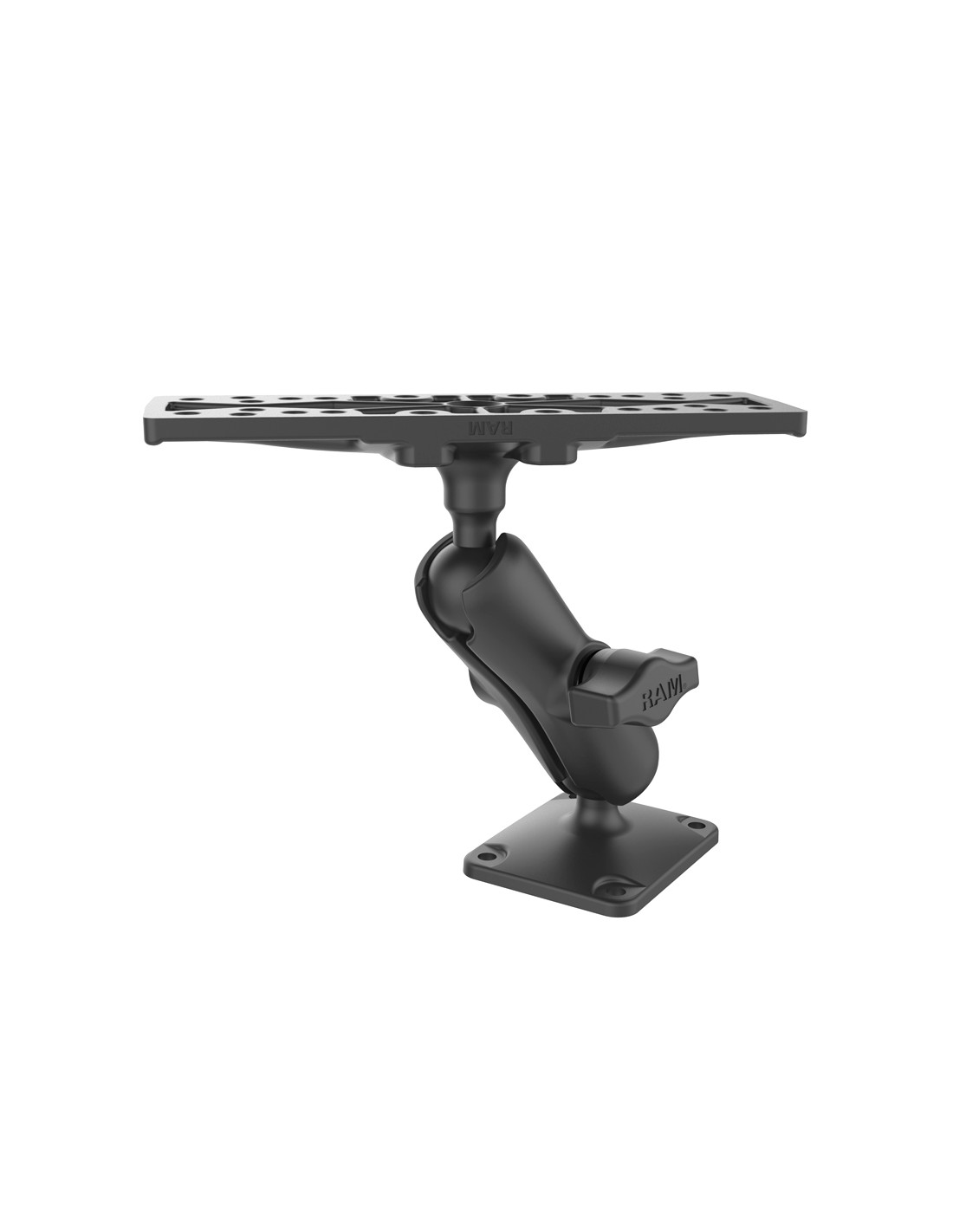

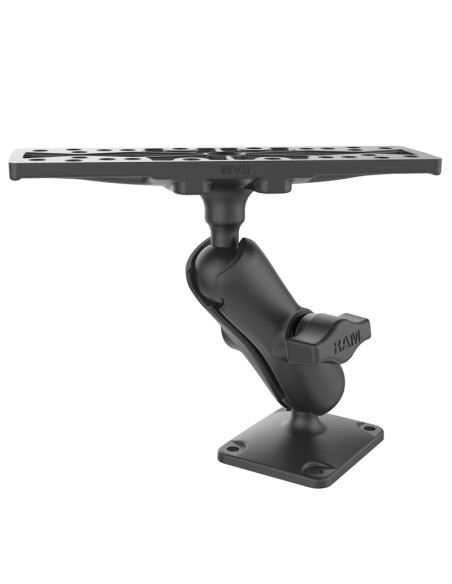

The RAM Composite Universal Marine Electronic Mount (RAP-B-111U) is a kit intended for lightweight mounting for marine GPSes, CB radios, ham radios, gimbal brackets, and more. It comes with a 2" x 2.5" rectangle base, medium-length double socket arm, and 6.25" x 2" rectangle adapter plate. The adapter plate is pre-drilled with multiple hole combinations, including the universal AMPS hole pattern, that will match up with electronic devices or manufacturer-provided brackets. The kit is made entirely of high-strength, marine-grade composite for long-term durability in fresh and salt water.

  • Backed by a lifetime warranty

Components
RAP-B-201U
RAP-B-202U-225
Device Type
Chartplotter
Fishfinder
Product Type
Fish Finder Mounts
Vehicle Type
Kayak
Power Boat
Ball Size
B Size (1")
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
See Drawing
Materials
High strength composite
Packaging Type
Poly Bag
Plate Size
Bottom Plate: 2" x 2.25"
Top Plate: 6.25" x 2"
Product Dimensions
Overall Height: 5"
Product Weight
0.45 lb
Socket To Socket Length
3"
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
Device Compatibility
Garmin GPSMAP 162
Garmin GPSMAP 168
Garmin GPSMAP 175
Garmin GPSMAP 180
Garmin GPSMAP 180C
Garmin GPSMAP 182
Garmin GPSMAP 185
Garmin GPSMAP 188
Garmin GPSMAP 232
Garmin GPSMAP 238
Garmin Striker 5 Series
Garmin Striker Plus 5cv
Garmin Striker Vivid 5cv
793442911897
