RAM® 6" Single Swing Arm with Socket & Ball
  • Nuevo
RAM® 6" Single Swing Arm with Socket & Ball

RAM® 6" Single Swing Arm with Socket & Ball

RAM-VB-109-5U

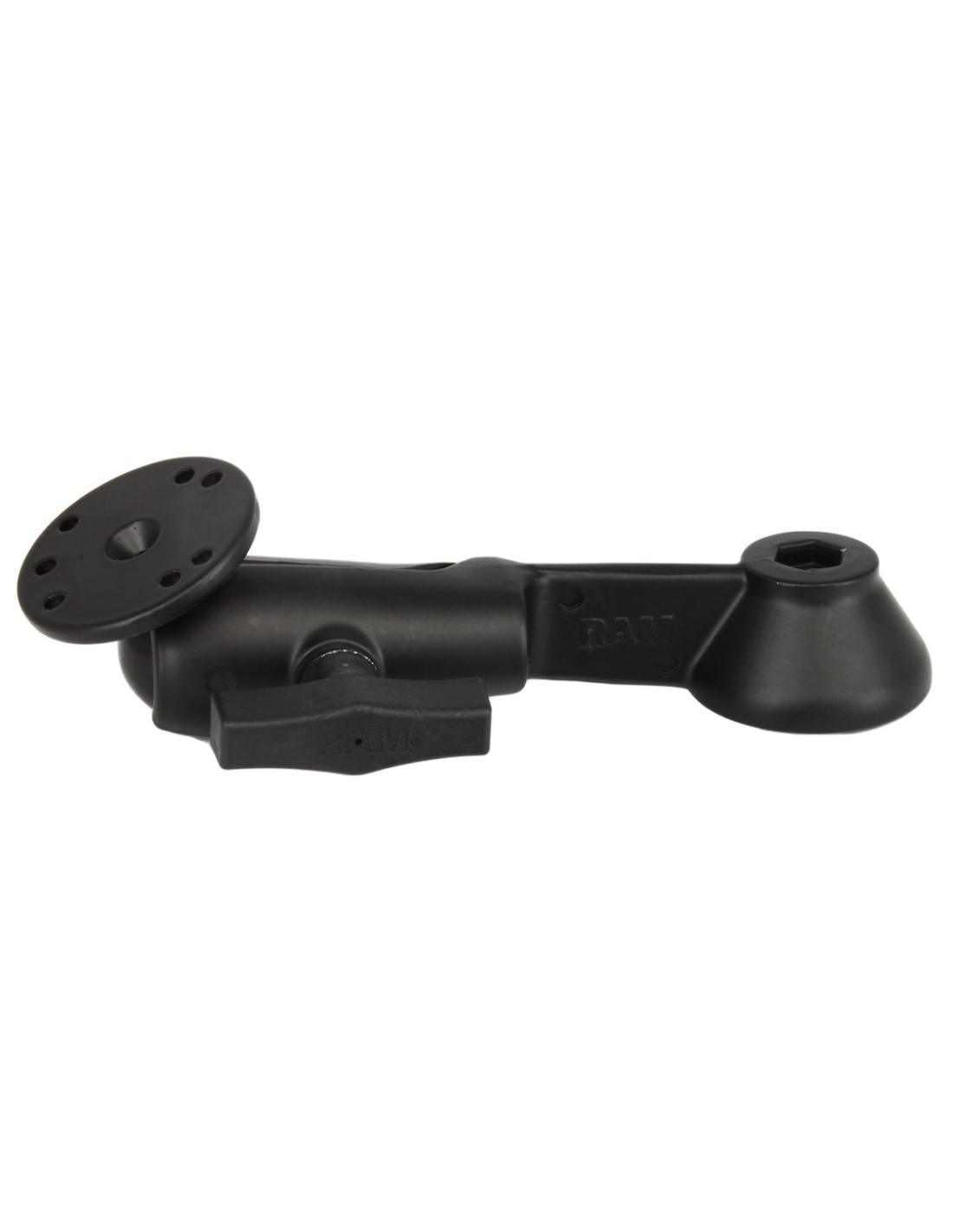

The RAM-VB-109-5U consists of a 6" long single swing arm and 2.5" round base that contains the universal AMPs hole pattern.

Components
RAM-202U
RAM-VB-109-2U
Product Type
Components
Ball Size
C Size (1.5")
Hardware Included
(1) 1.25" Fender Washer
(1) 2" Rubber Washer
(1) 3/8"-16 Knob
(1) 3/8"-16 x 4" Hex Bolt
(1) Thrust 6-Bearing Washer
(2) Steel Washers
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Plate Size
2.5" Diameter
Product Dimensions
Swing Arm Length: 6"
Product Weight
1.33 lb
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442906879
