RAM-HOL-ZE21PKLU

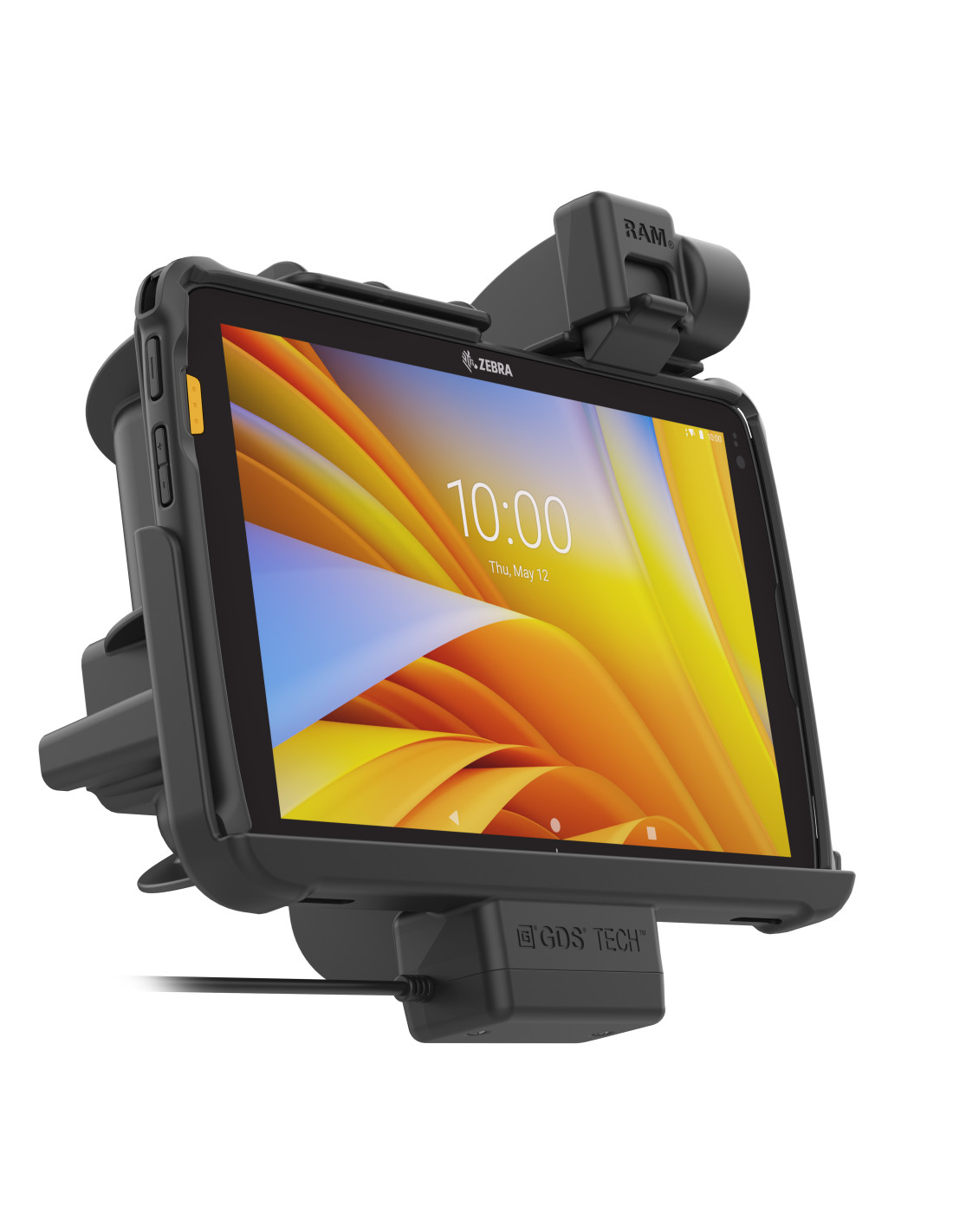

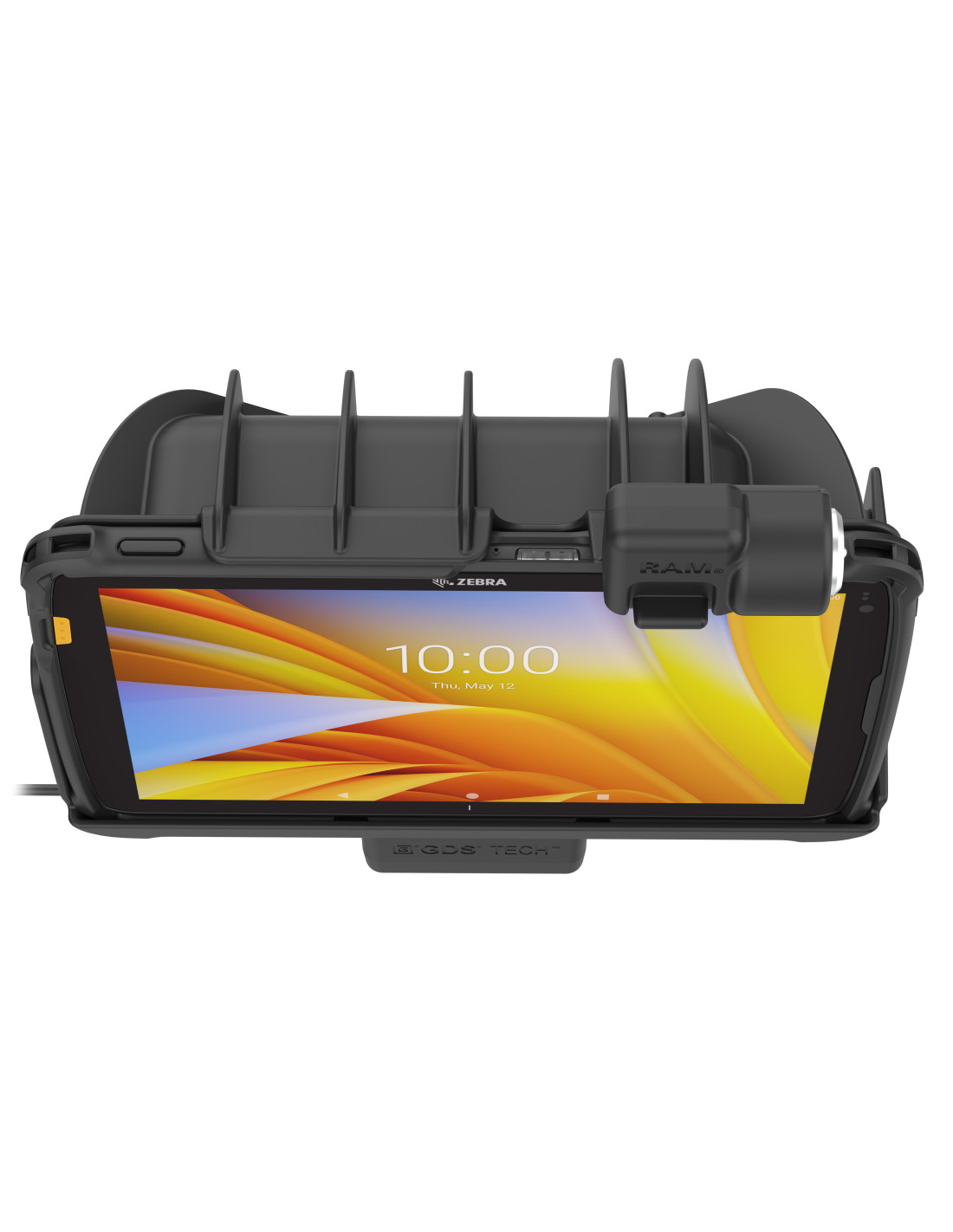

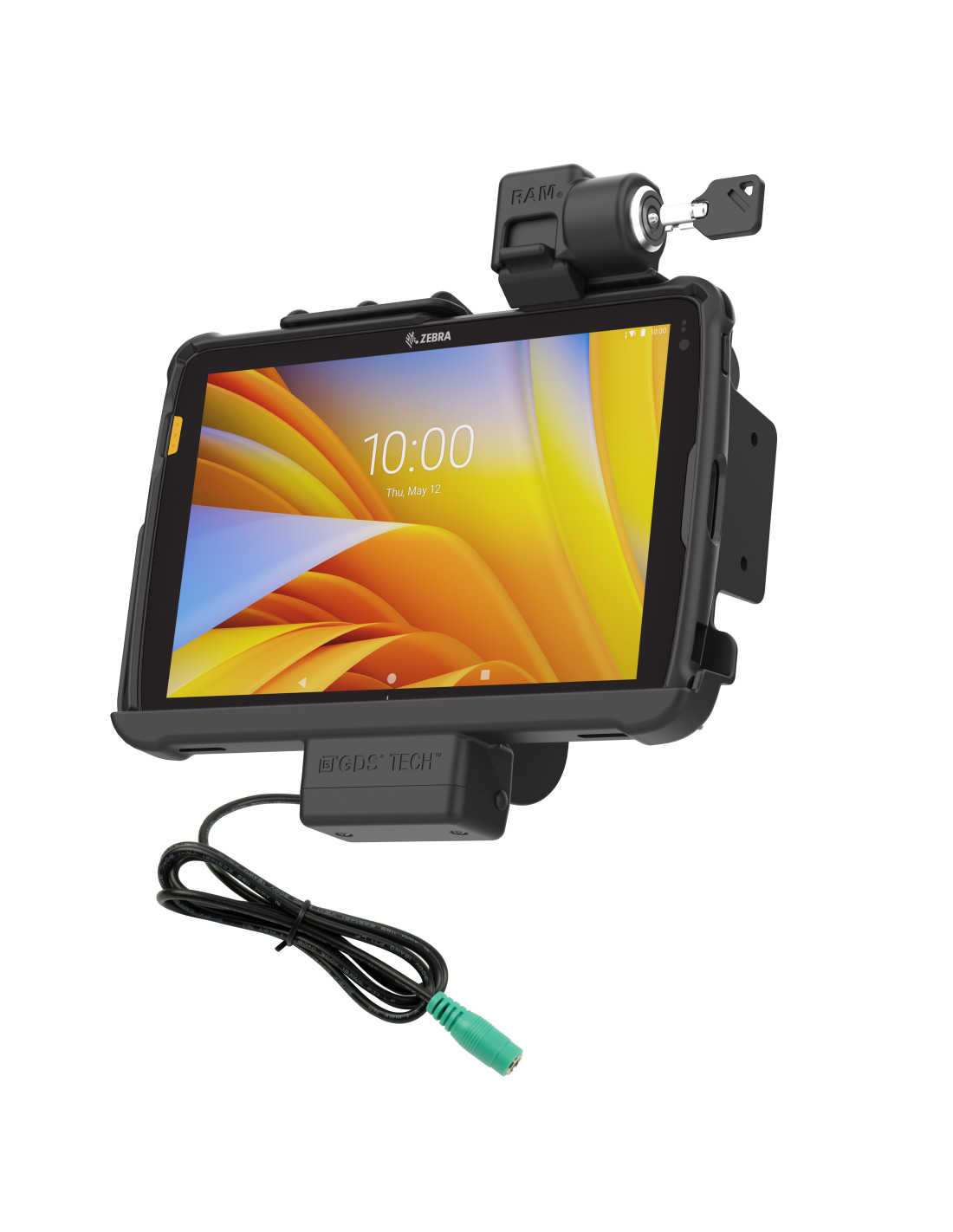

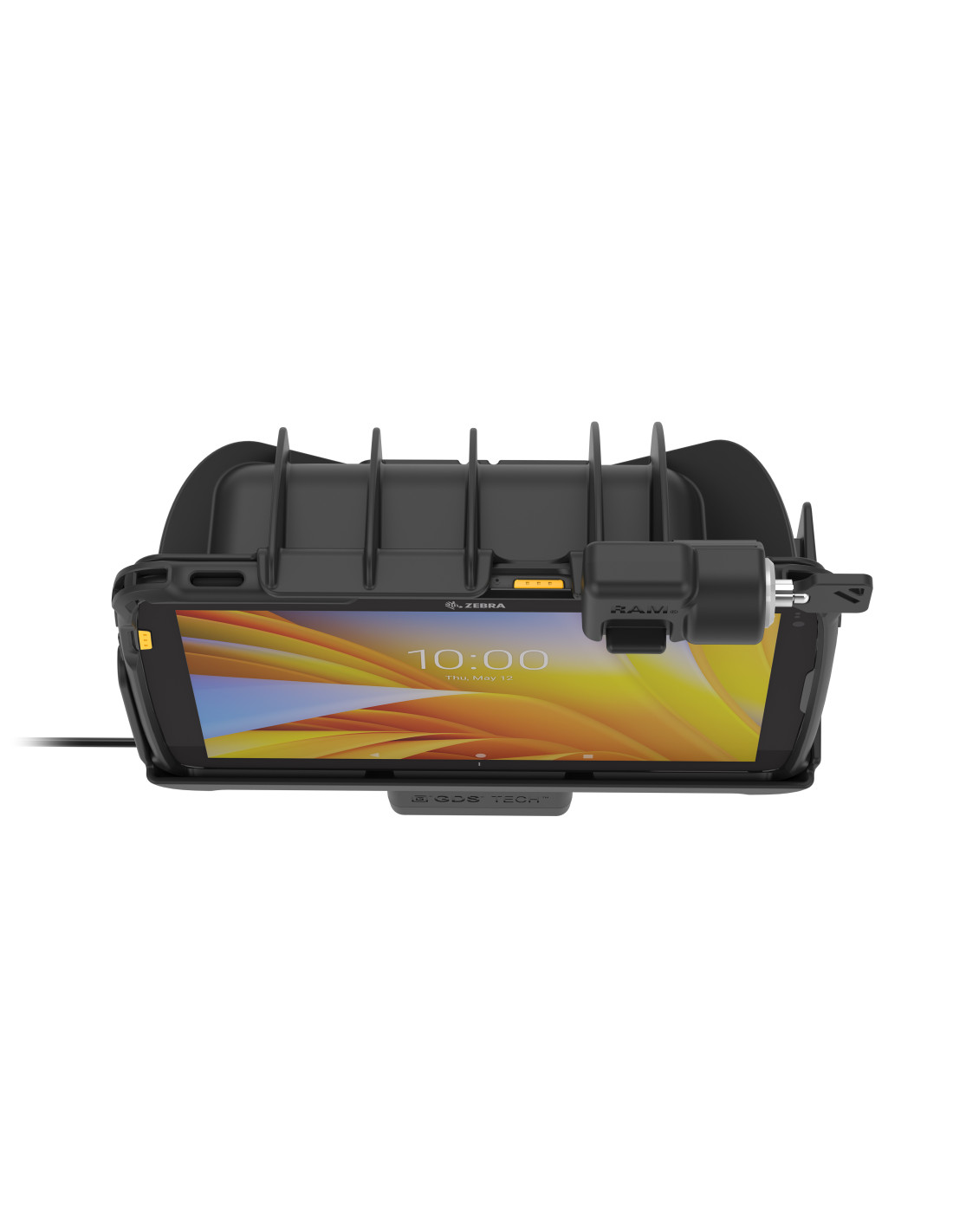

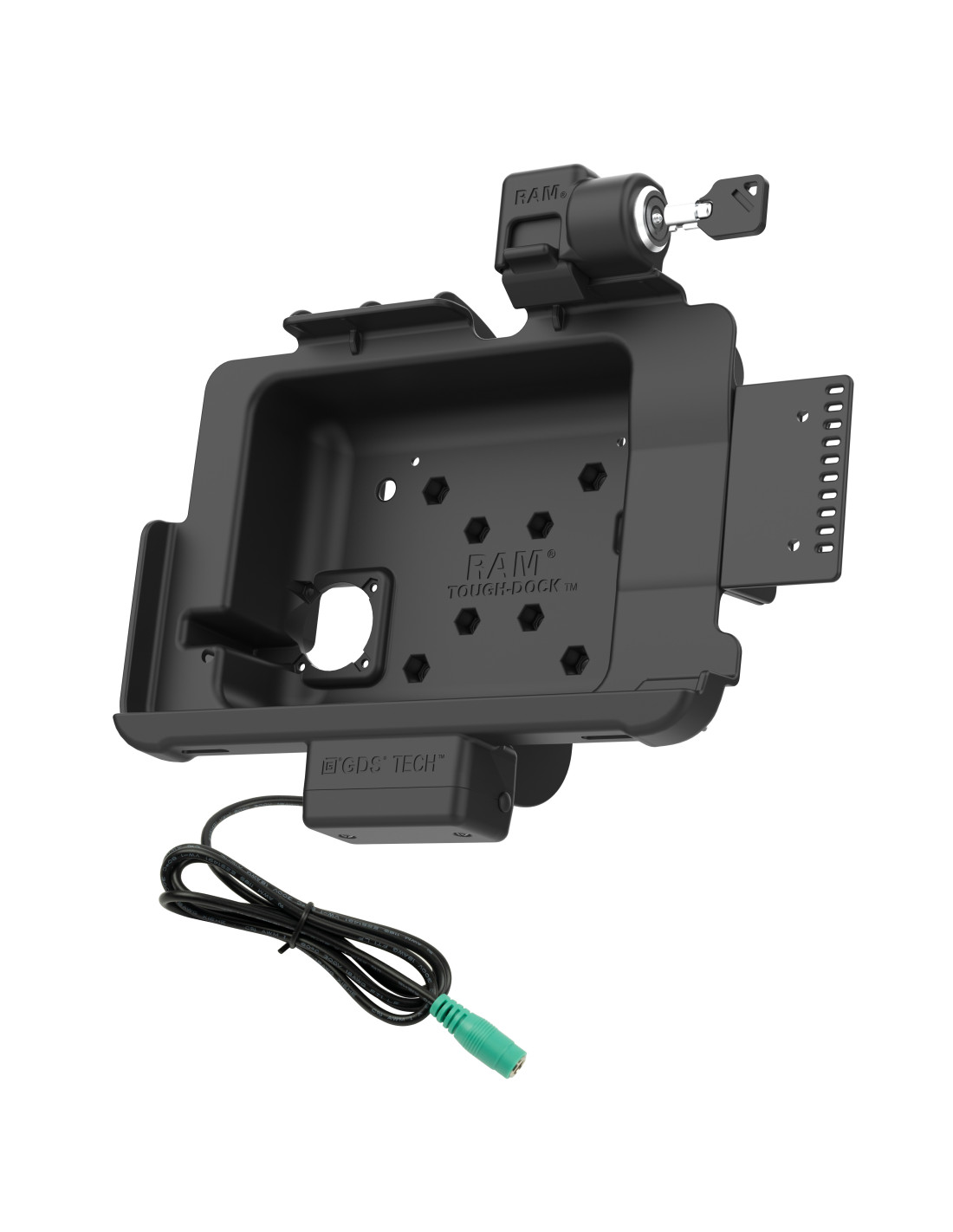

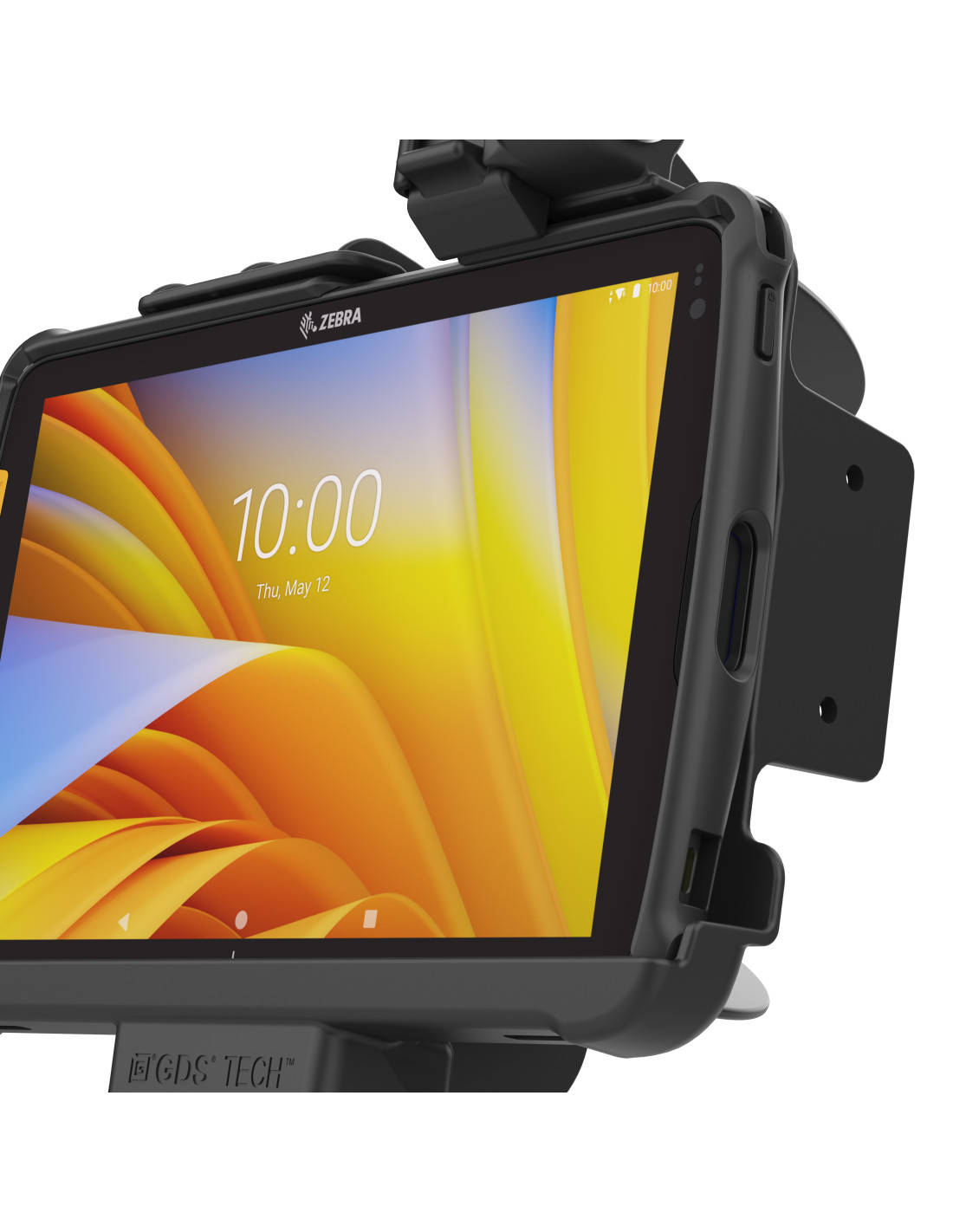

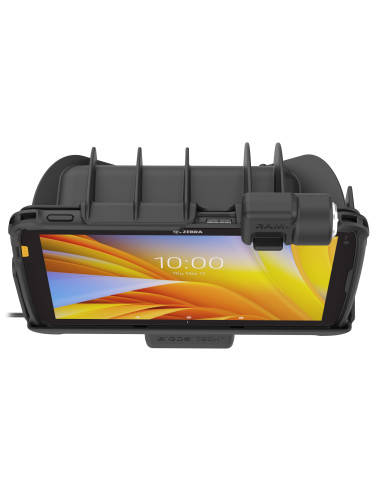

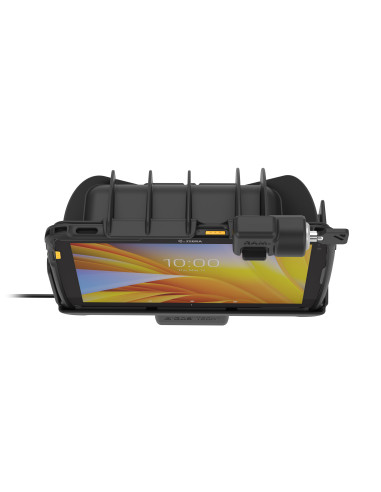

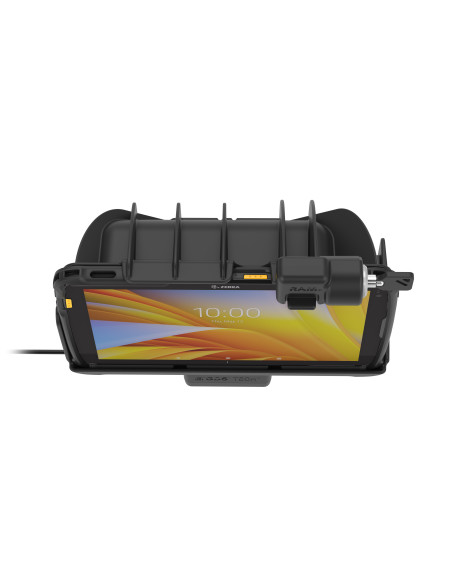

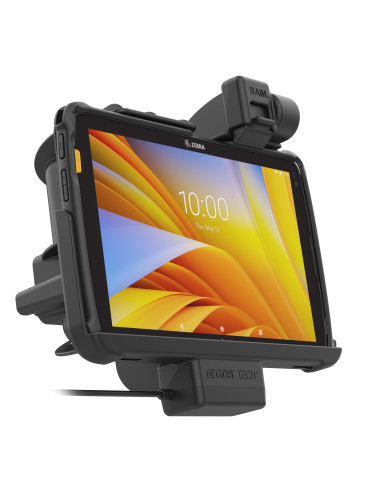

Featuring charging capabilities and a key lock for theft deterrence, the RAM Tough-Dock works with the Zebra ET401 with RAM Skin or ET40 & ET45 10" with Rugged Frame. This dock allows you to keep the device charged through the pogo pin contacts when the device is dockedpower is provided by connecting to the dock's 5.5mm DC power jack. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device.

  • RAM® Tough-DockT perfectly secures the Zebra ET401 with RAM® SkinT, and ET40 & ET45 10" enterprise tablets with Rugged Frame; includes set of keys for locking capabilities; MIL-STD 810G Shock and Vibration tested

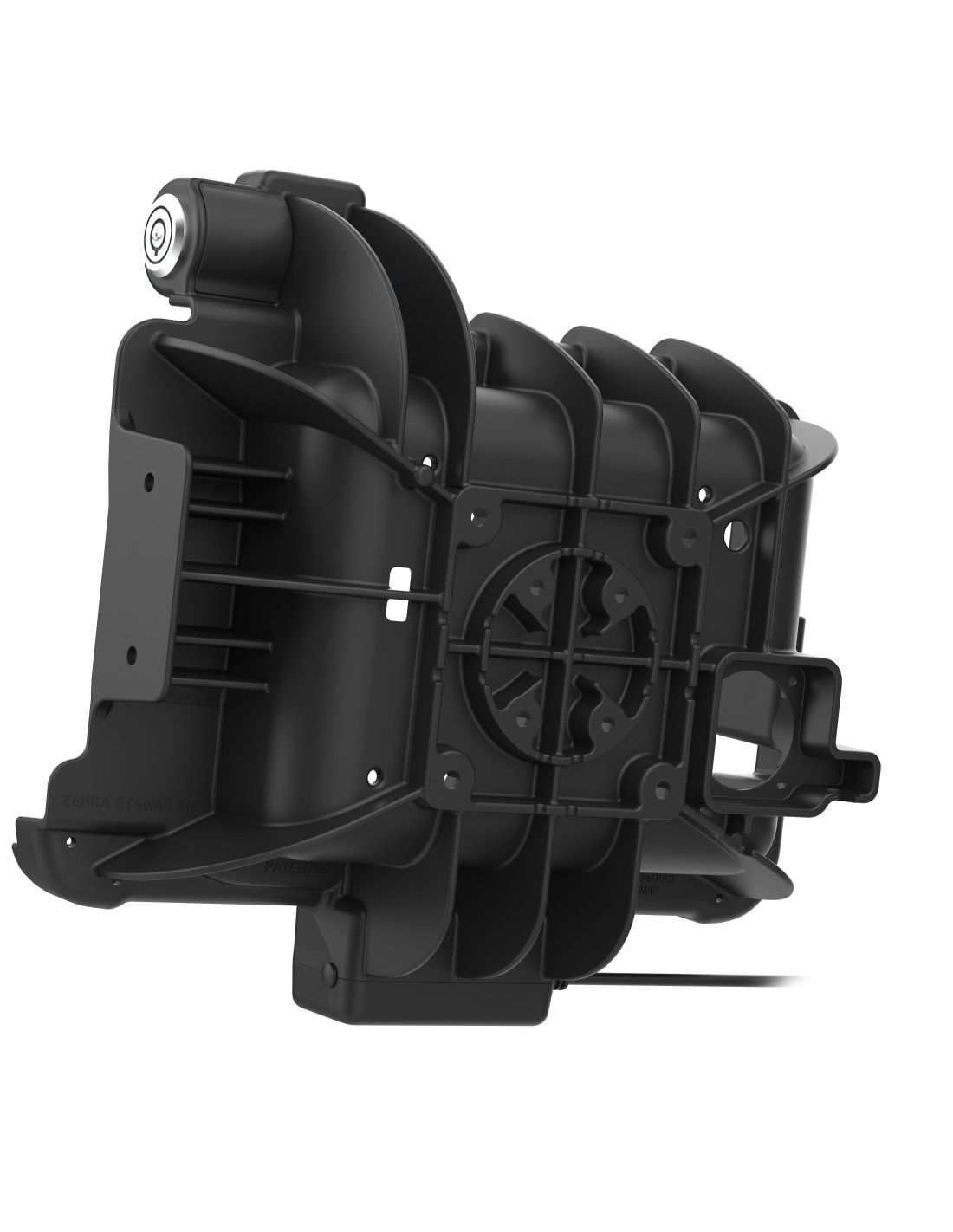

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
  • Backed by a 3-year warranty

Product Line
Tough-DockT
Product Type
Components
Certifications
CE
RoHS
UKCA
WEEE
Hardware Included
(1) Side bracket for accessory mounting
(2) #8-32 x 1/2" Machine Screws
(2) Keys
(2) Small Cable Ties
(4) #8-32 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(6) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Input Cable Length
1 Meter
Input Connector
5.5mm DC Connector
Materials
High strength composite
Packaging Type
Poly Bag
Product Weight
1.60 lb
Device Compatibility
Zebra ET40 10" Tablet with Rugged Frame
Zebra ET45 10" Tablet with Rugged Frame
Zebra ET401 10" Tablet (RAM® SkinT Required)
793442227066
