RAM-111U

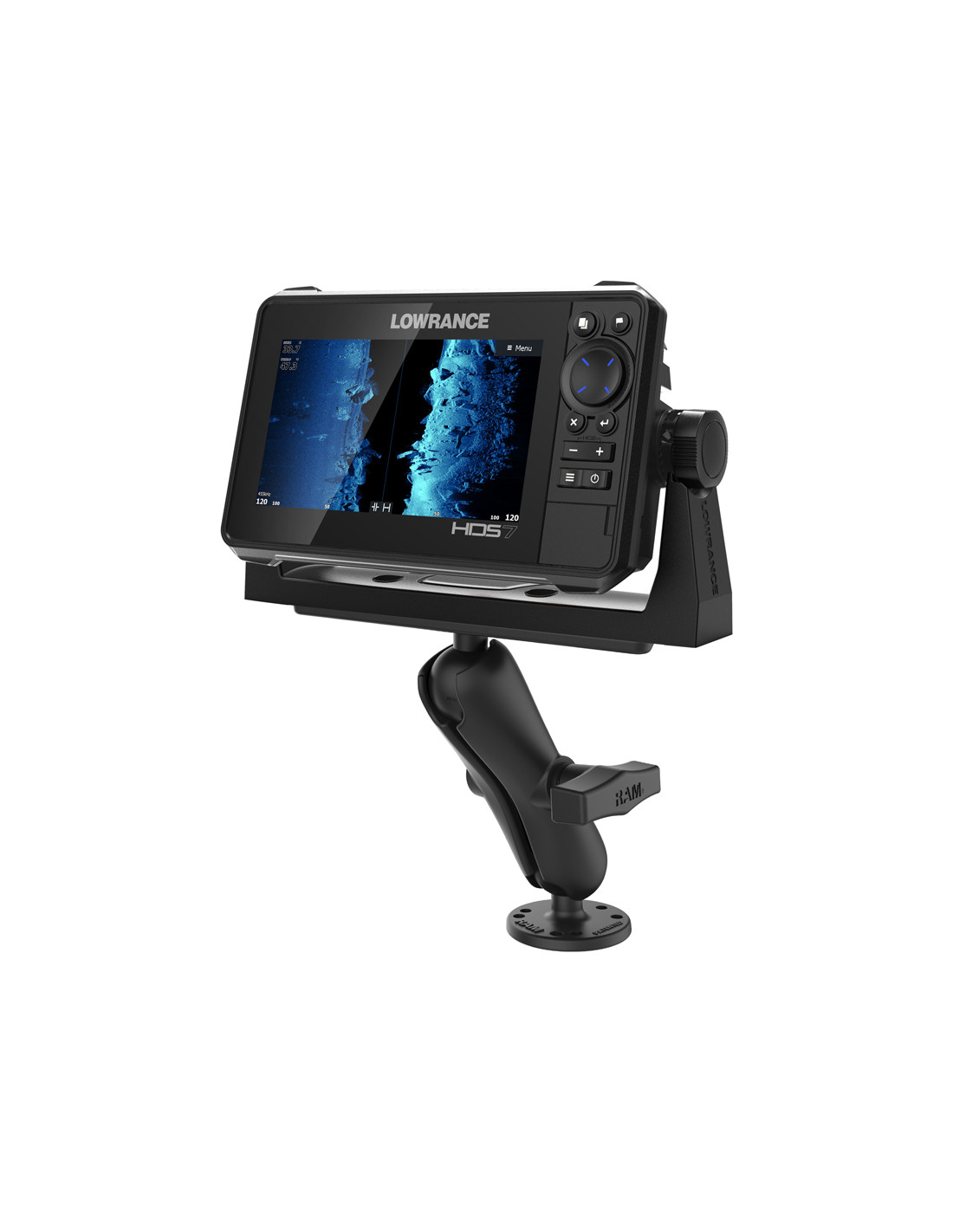

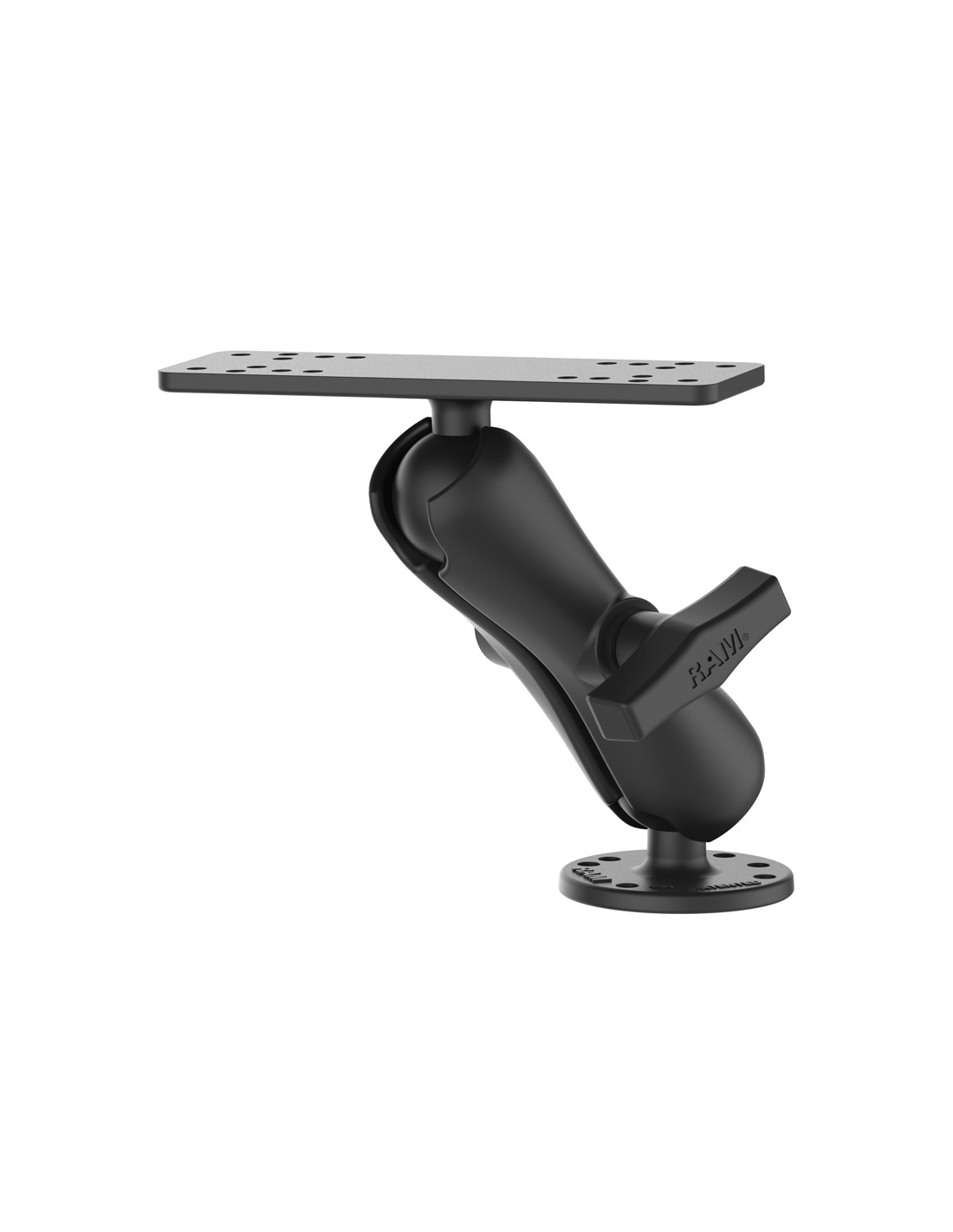

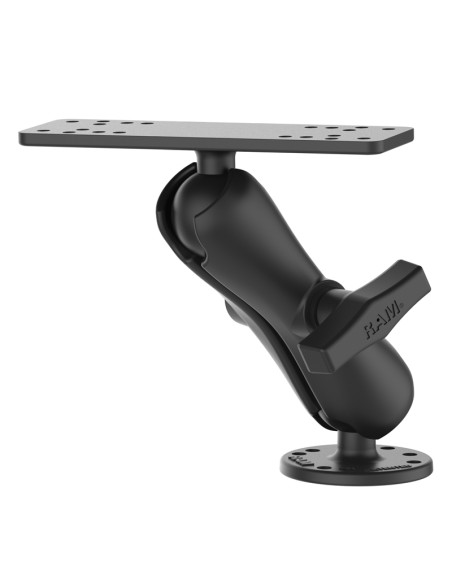

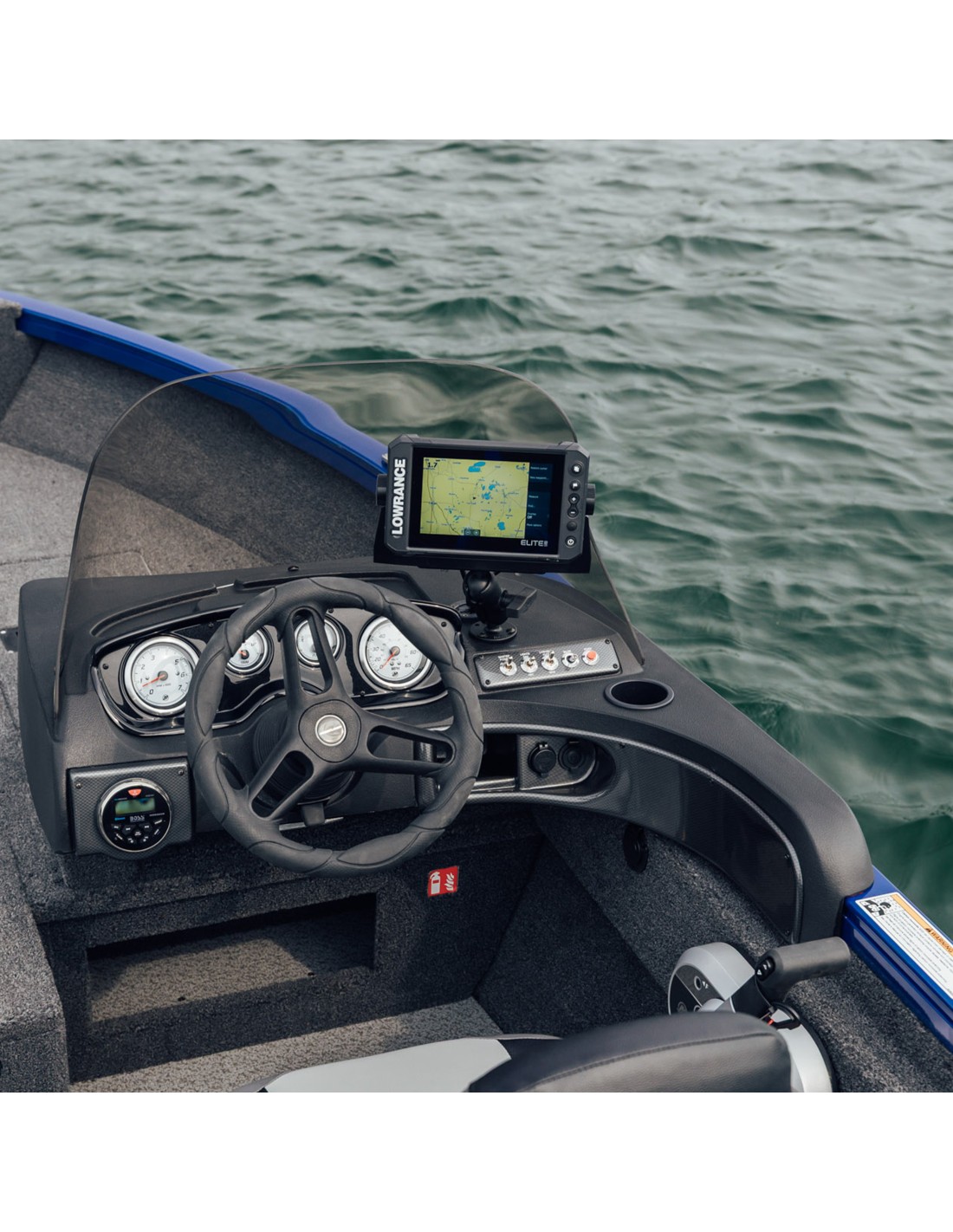

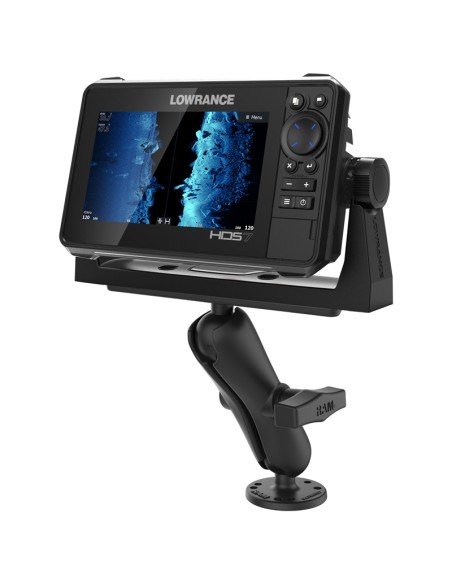

The RAM Drill-Down Marine Electronic Mount (RAM-111U) is a rugged, fully adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this system includes a C size double socket arm, a 2.5" diameter round base, and a 6.25" x 2" rectangular adapter plate for secure device mounting. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including fish finders, marine GPS units, CB and ham radios, gimbal brackets, and more.

  • Complete flat surface, drill-down mounting solution with an overall height of 7.35"

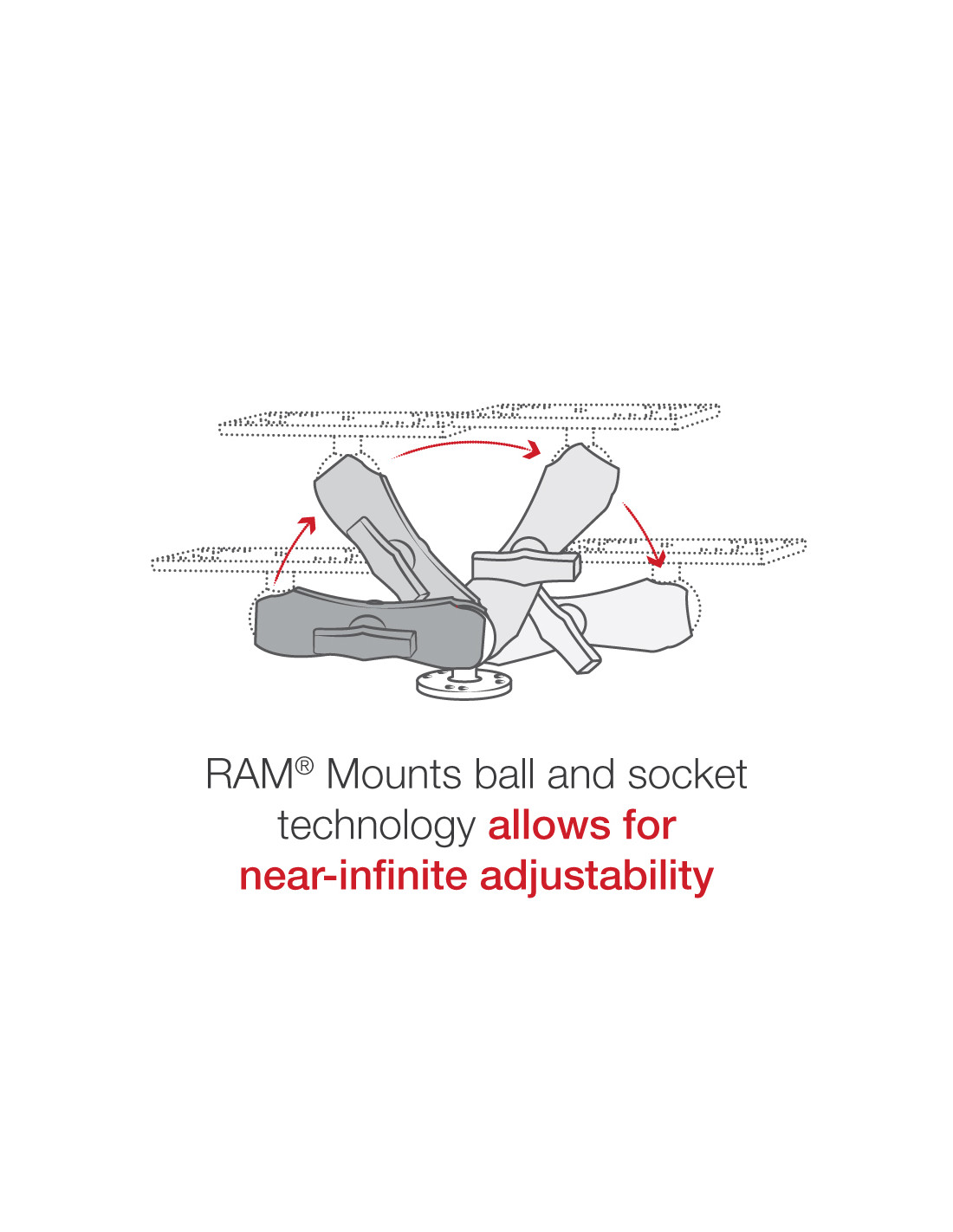

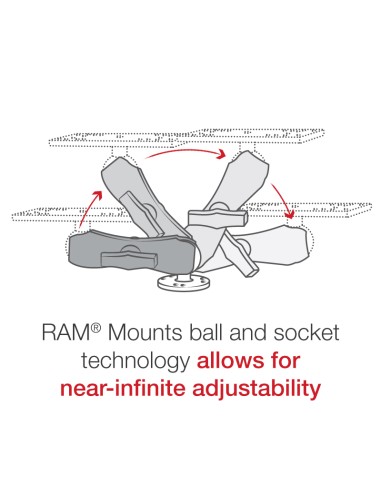

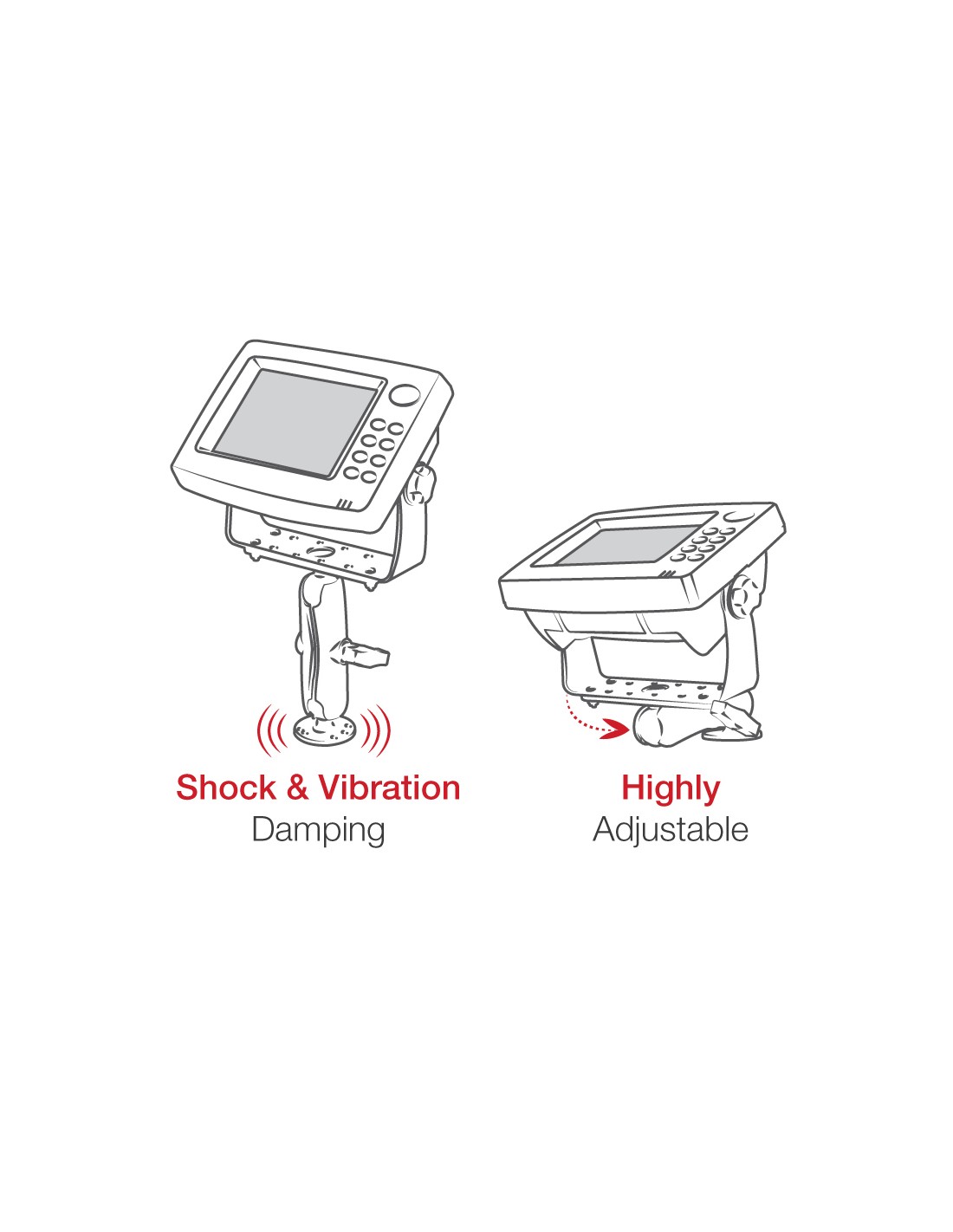

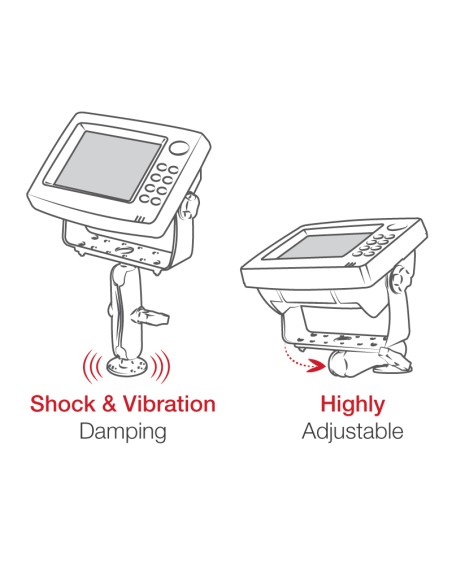

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Components
RAM-111BU
RAM-201U
RAM-202U
Device Type
Chartplotter
Fishfinder
Product Type
Fish Finder Mounts
Vehicle Type
Kayak
Power Boat
Ball Size
C Size (1.5")
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"

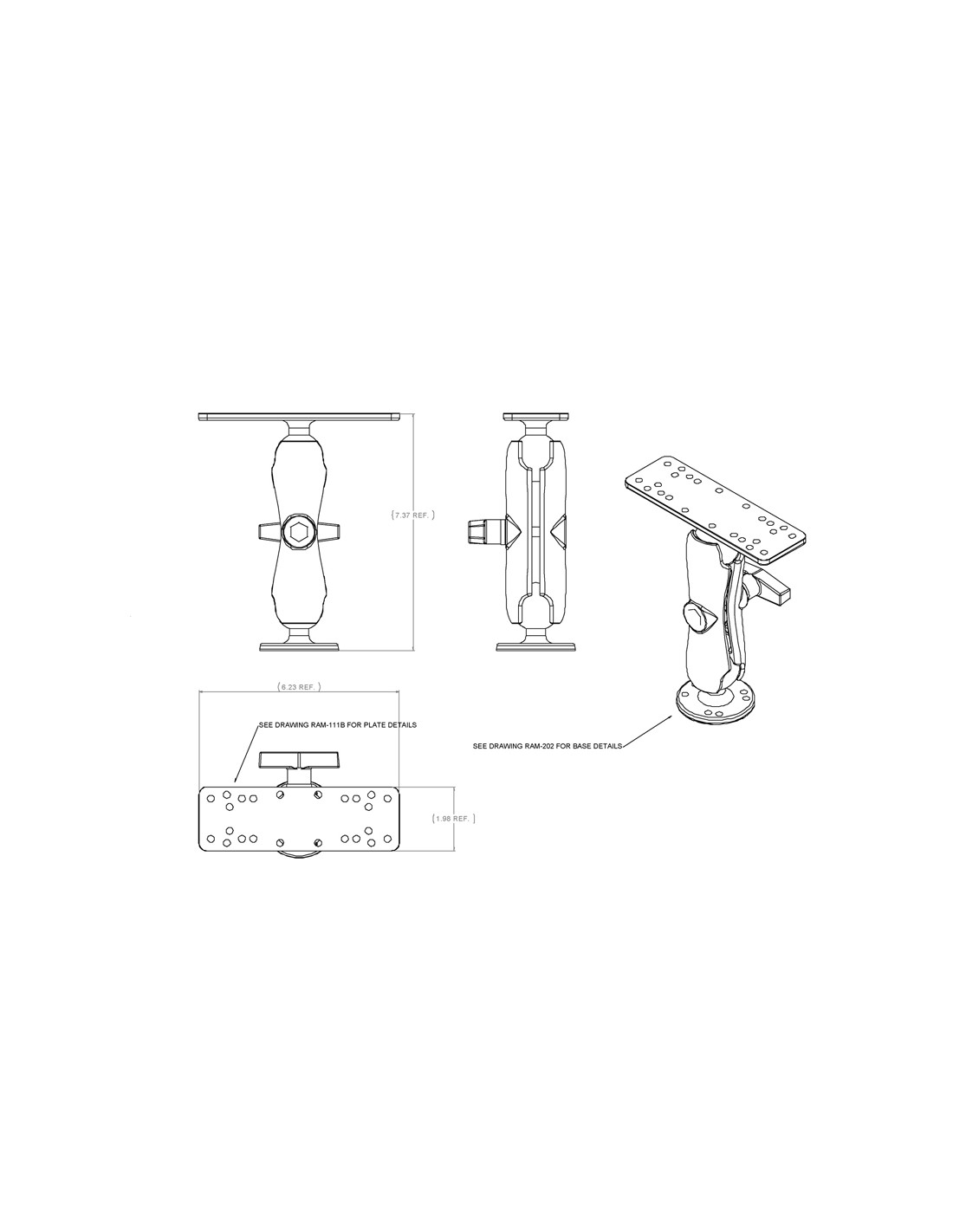

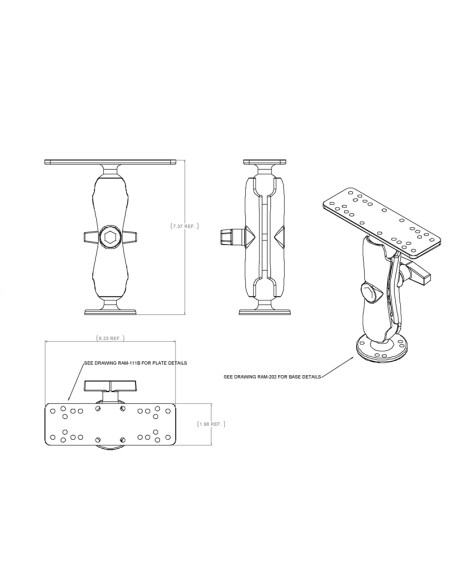

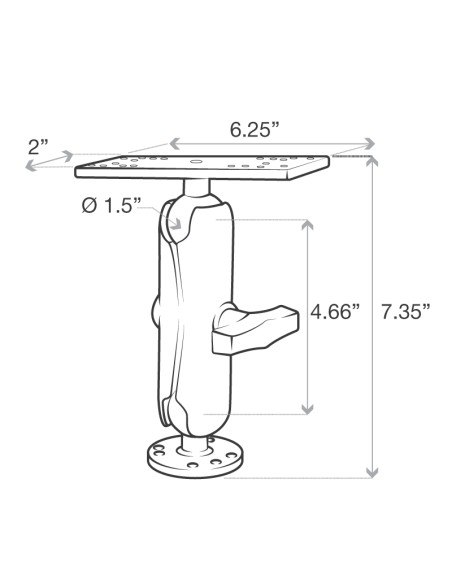

See Drawing
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Plate Size
Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
Product Dimensions

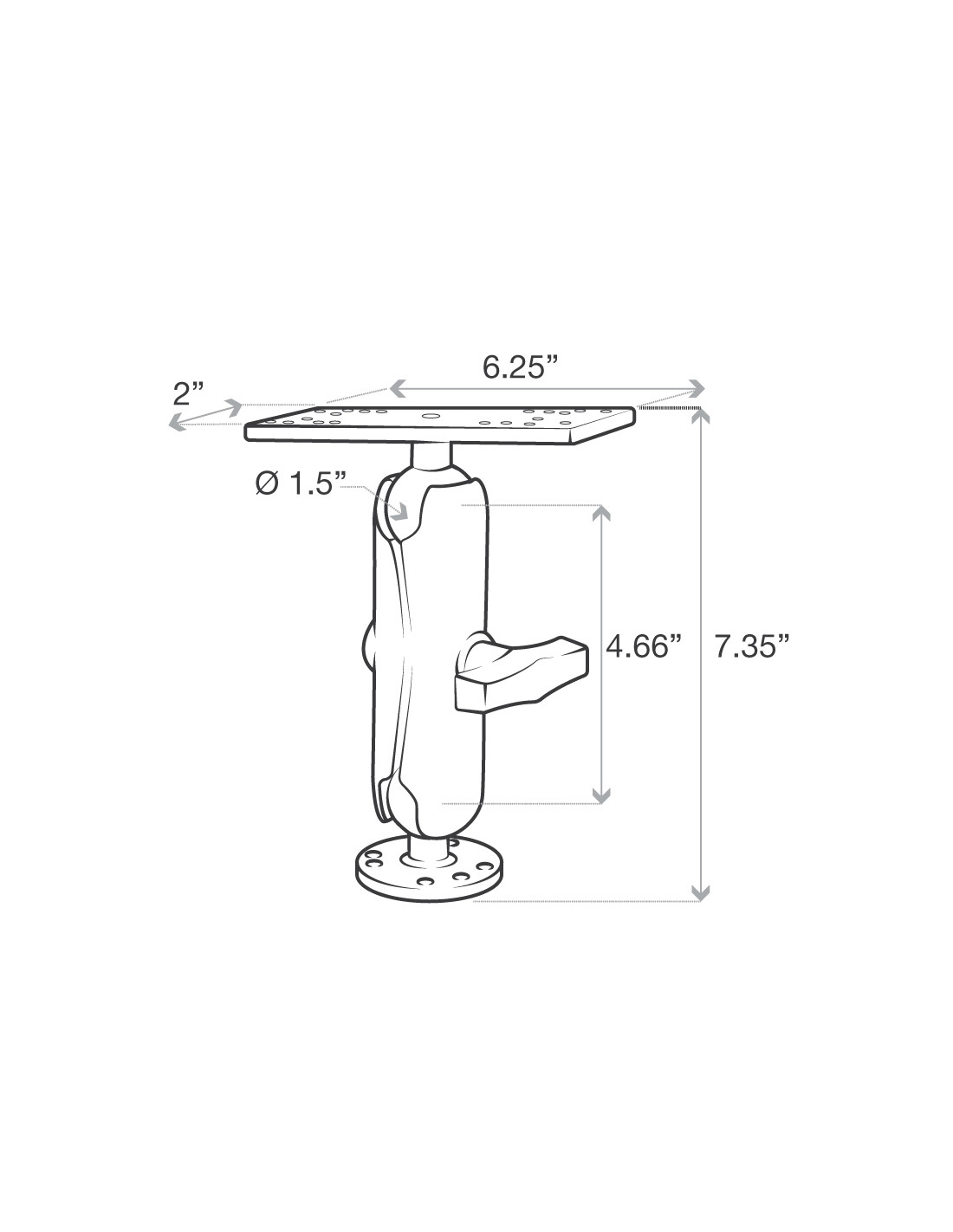

Overall Height: 7.35"
Product Weight
1.34 lb
Socket To Socket Length
4.66"
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
Device Compatibility
Garmin ECHOMAP Plus 72cv
Garmin ECHOMAP Plus 73cv
Garmin ECHOMAP Plus 74cv
Garmin ECHOMAP Plus 75cv
Garmin ECHOMAP Plus 77cv
Garmin ECHOMAP UHD2 5"
Garmin ECHOMAP UHD2 7"
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 723
Garmin GPSMAP 723xsv
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin GPSMAP 743
Garmin GPSMAP 743xsv
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Garmin Striker Vivid 5cv
Garmin Striker Vivid 5cv
Garmin Striker Vivid 7cv
Garmin Striker Vivid 7sv
Humminbird Fishfinders and GPS Chartplotters
Lowrance Eagle 7
Lowrance Eagle 9
Lowrance Elite FS 7
Lowrance Elite FS 9
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Lowrance Hook Reveal 7 Series
Lowrance Hook Reveal 9 Series
Power-Pole Vision 7"
Raymarine Fishfinders and GPS Chartplotters
