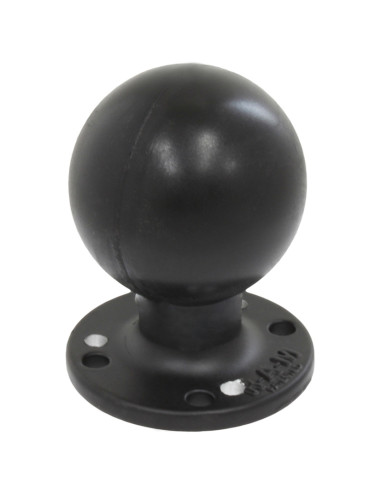

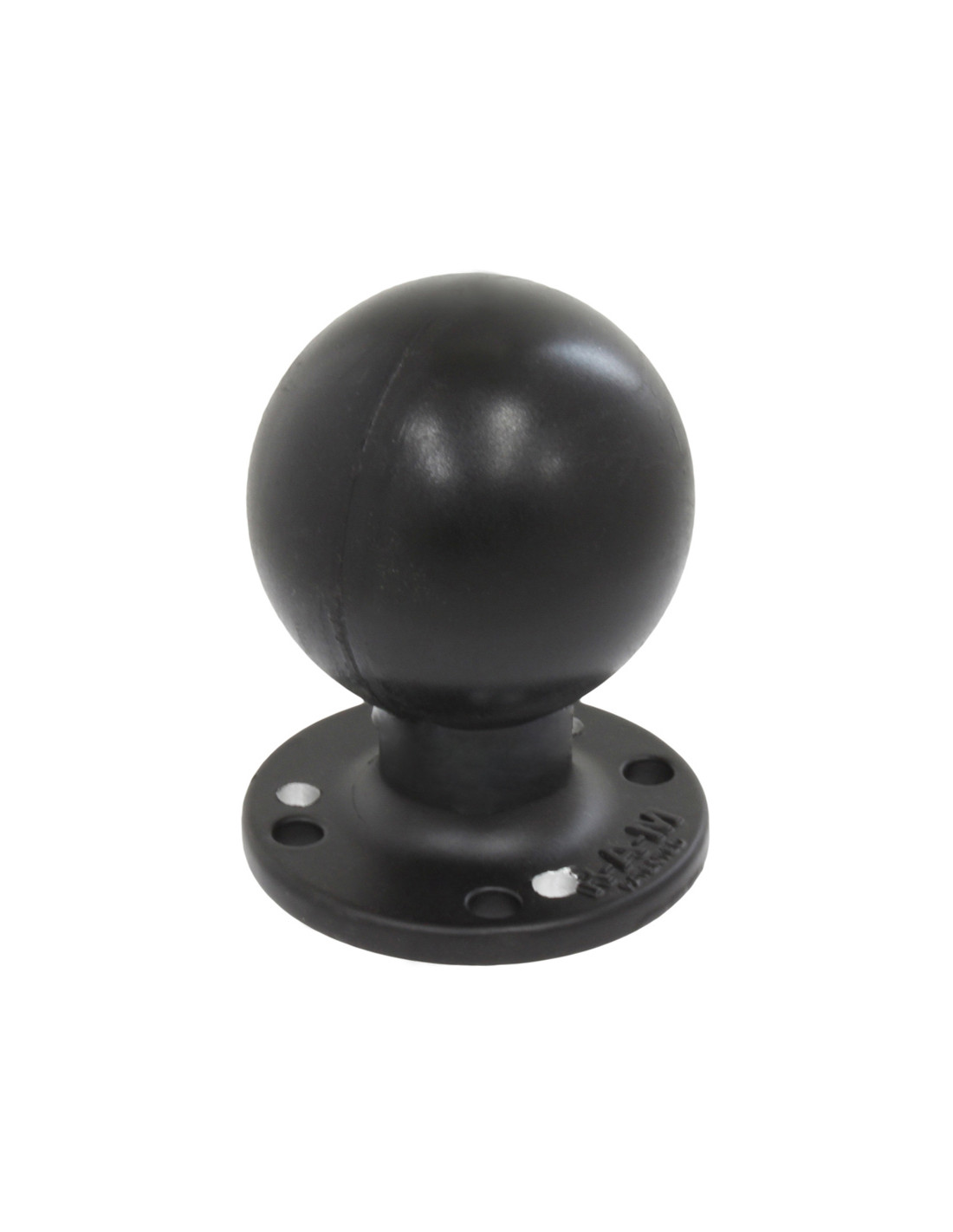

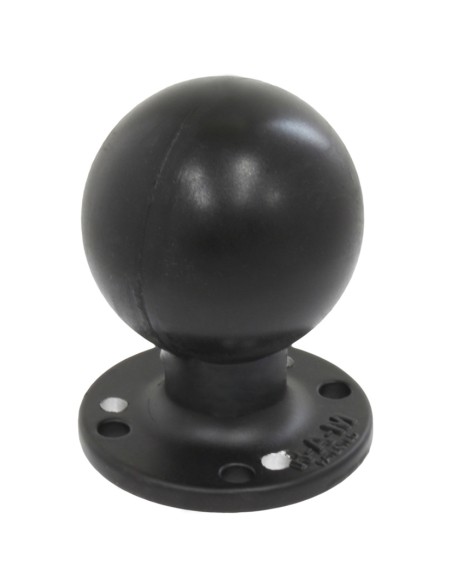

RAM® Round Plate with Ball - D Size
RAM-D-254-WD1U

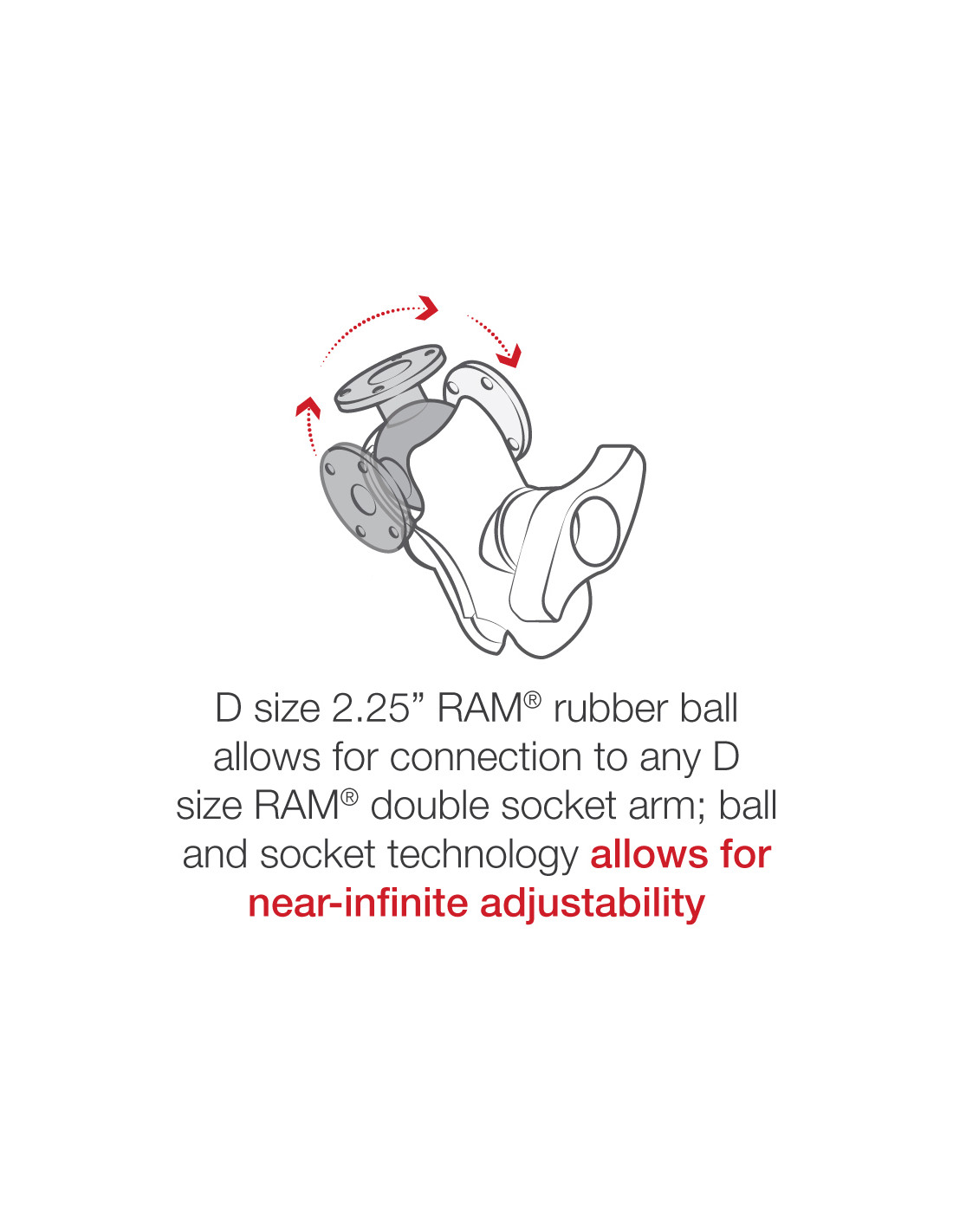

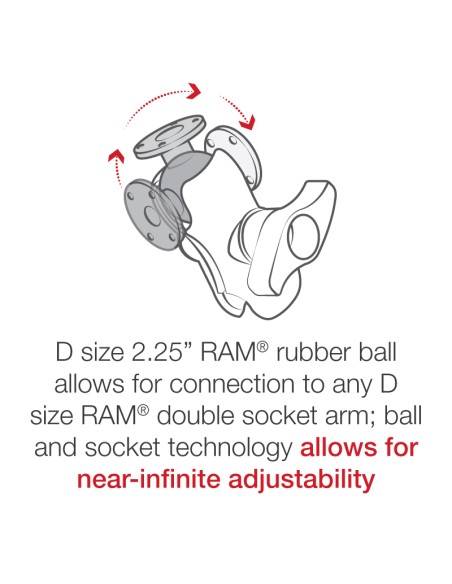

The RAM-D-254-WD1U consists of a 2.25" diameter rubber ball, connected to a 2.5" diameter plate containing 7 holes total: the industry standard 4-hole AMPS hole pattern and a 3-hole 120-degree hole pattern. This component can drill down to any flat surface or connect to any RAM holder or cradle. The D Size ball is compatible with any other RAM D Size ball & socket components.
- Product Type
- Components
- Ball Size
- D Size (2.25")
- Hole Pattern
- 3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496" - Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Plate Size
- 2.5" Diameter
- Product Weight
- 0.50 lb
- Weight Capacity
- Heavy-Duty Use: 5 lbs
Standard Use: 6 lbs
793442225413
