RAM-D-111-C-KNOB9H

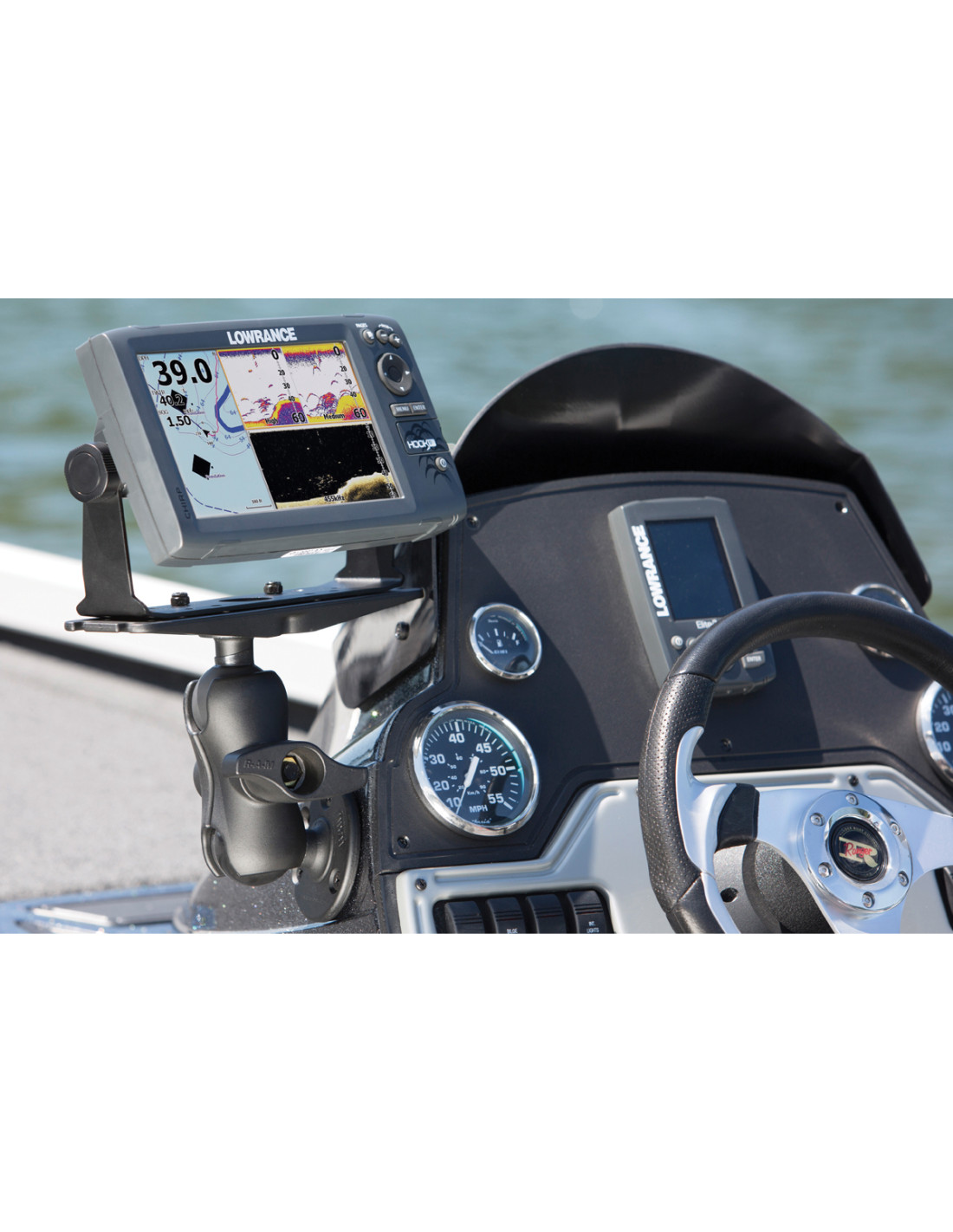

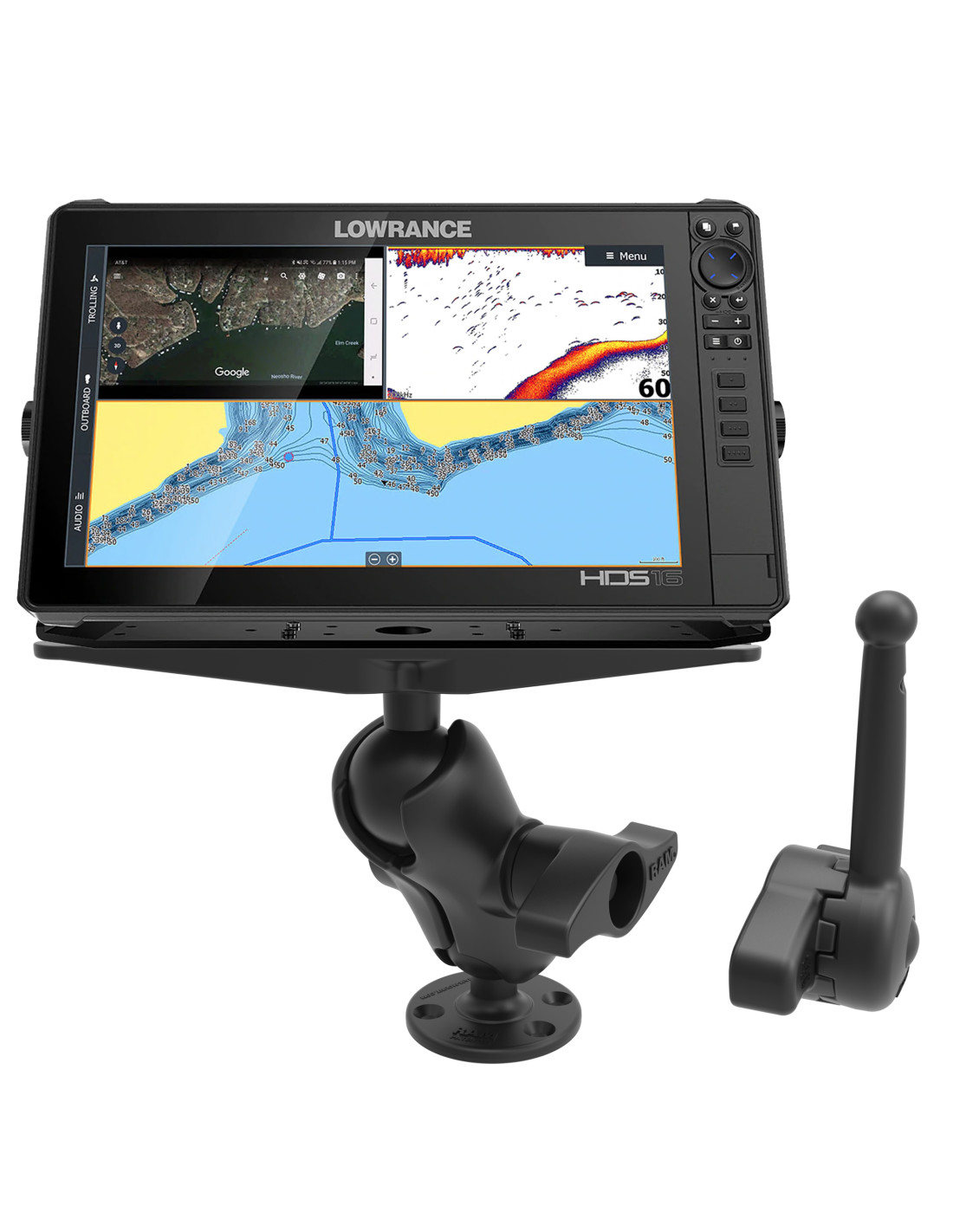

The RAM Large Marine Electronics Mount with RAM Hi-Torq Wrench (RAM-D-111-C-KNOB9H) is a complete, drill-down mounting solution for fish finders, chartplotters, and other large electronic devices. This kit consists of D size components, including a 3.68" diameter round base, short-length double socket arm, and 11" x 3" rectangular adapter plate. The base is pre-drilled with two holes at 180 and three holes at 120. The plate has different combinations of pre-drilled holes which will match up to electronic devices and mounts such as marine GPSes, CB radios, ham radios, gimbal brackets, and more. This kit includes the RAM Hi-Torq Wrench, designed to provide added leverage when tightening D size arms. This allows for a more secure hold and is especially helpful in cold weather when extra clamping force helps prevent ball slippage

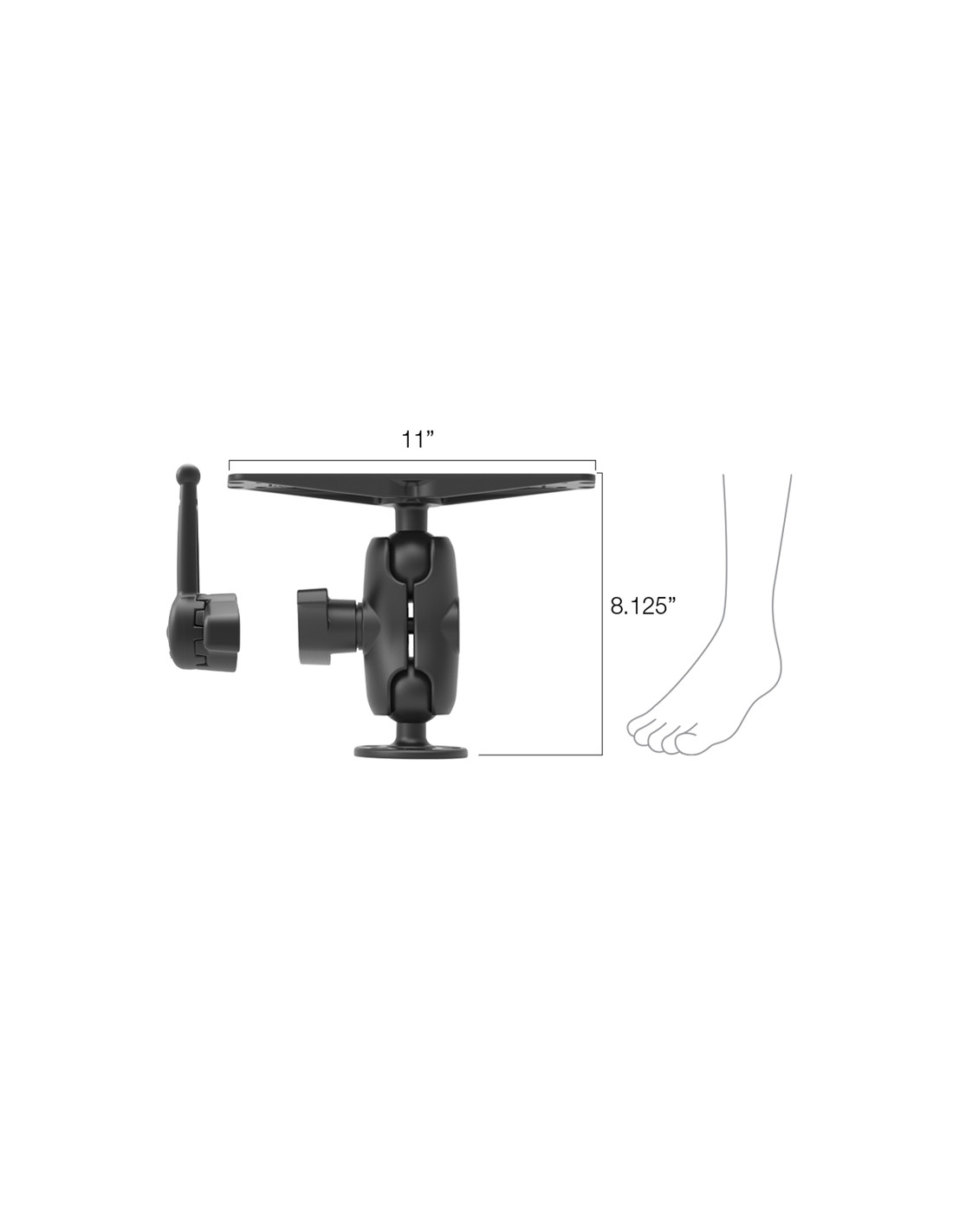

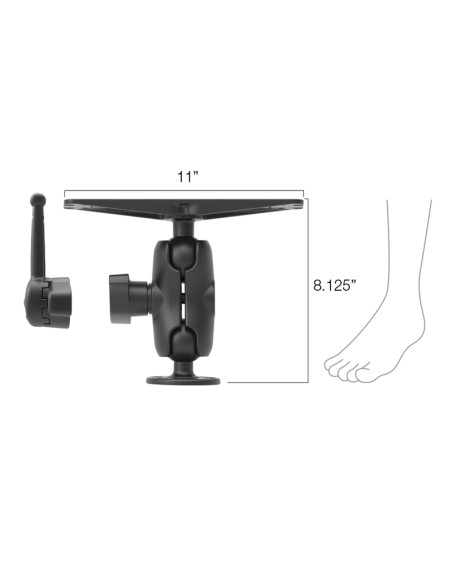

  • Drill-down mounting solution for large marine electronics with an overall height of 8.125"

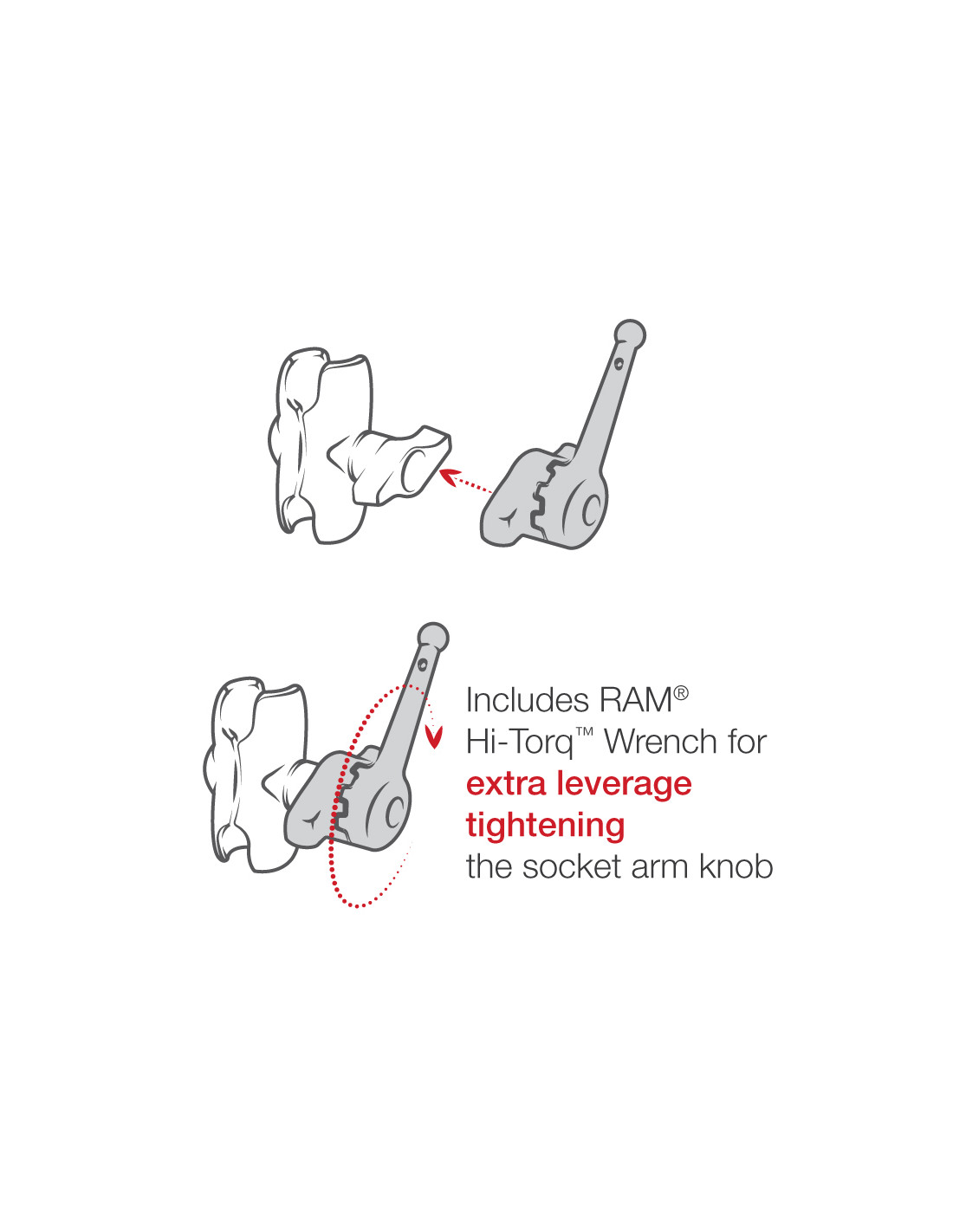

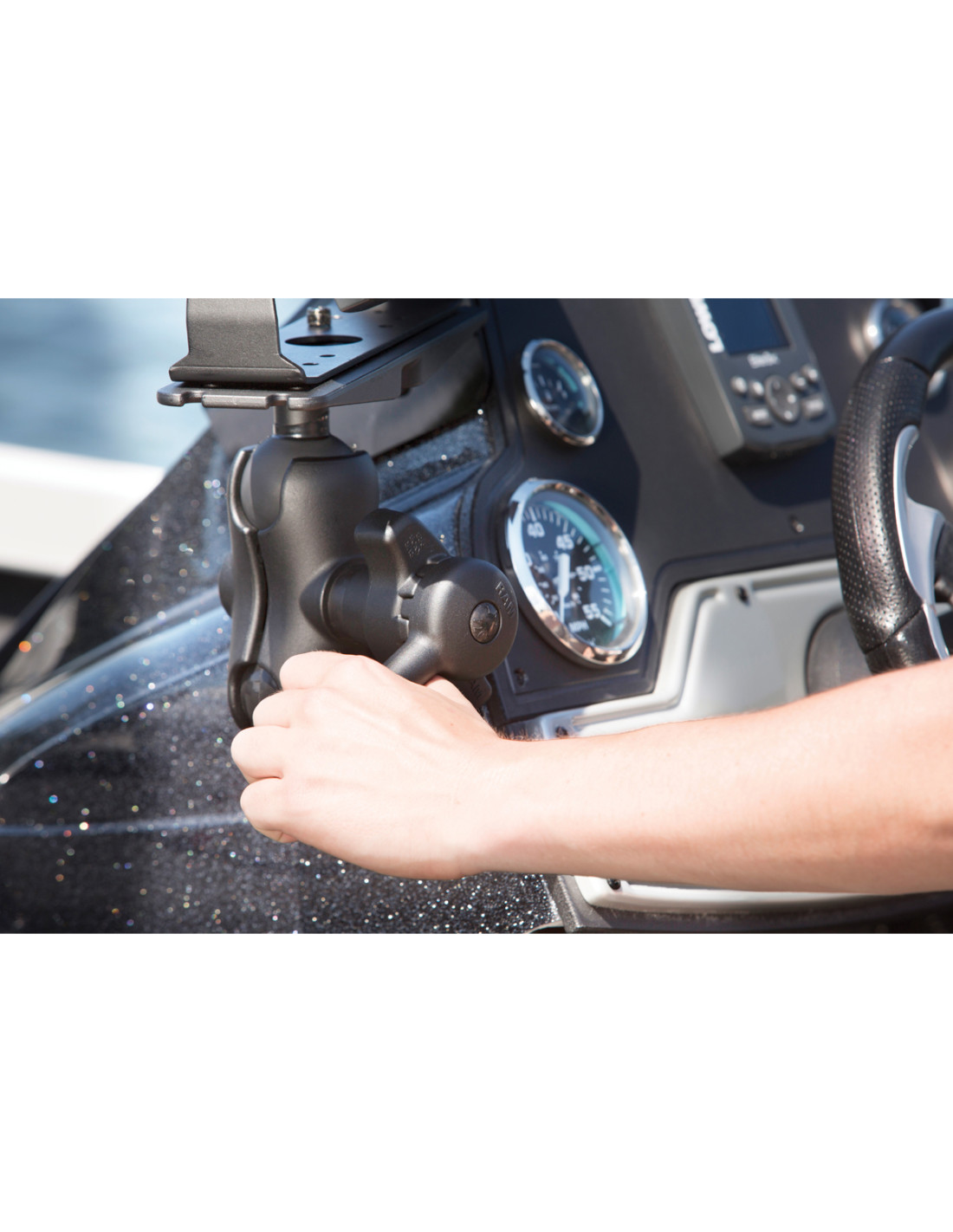

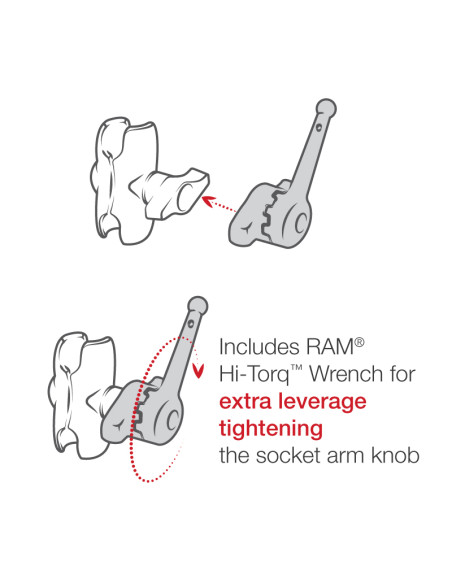

  • Includes RAM® Hi-Torq Wrench for additional leverages when tightening arm
  • Backed by a lifetime warranty

Components
RAM-D-111BU
RAM-D-201U-C
RAM-D-202U
RAM-KNOB9HU
Device Type
Chartplotter
Fishfinder
Product Line
Hi-TorqT
Product Type
Fish Finder Mounts
Vehicle Type
Power Boat
Ball Size
D Size (2.25")
Hardware Included
(4) .312" x .187" Shoulder Washers
Hole Pattern
See Drawings
Materials
Marine-grade aluminum
Packaging Type
Retail Box
Plate Size
Bottom Plate: 3.68" Diameter
Top Plate: 3" x 11"
Product Dimensions
Overall Length: 8.125"
Product Weight
4.55 lb
Socket To Socket Length
3.6"
Weight Capacity
Heavy-Duty Use: 5 lbs
Standard Use: 6 lbs
Device Compatibility
Garmin ECHOMAP Ultra 122sv
Garmin ECHOMAP Ultra 126sv
Garmin Fishfinders and GPS Chartplotters
Garmin GPSMAP 740s
Garmin GPSMAP 1020xs
Garmin GPSMAP 1040xs
Garmin GPSMAP 1222/xsv Touch
Garmin GPSMAP 1242xsv/Touch
Garmin echoMAP 70DV
Humminbird 800 & 900 Series
Lowrance Elite-9 CHIRP
Lowrance Elite-9 Ti
Lowrance Elite-9 Ti²
Lowrance Elite-12 Ti
Lowrance Elite-12 Ti²
Lowrance Fishfinders and GPS Chartplotters
Lowrance HDS Carbon 9
Lowrance HDS Carbon 12
Lowrance Hook²-12
Raymarine Axiom 7
Raymarine Axiom 9
Raymarine C120
Raymarine Fishfinders and GPS Chartplotters
