RAM® Double Ball Mount with Two Large Round Plates - D Size Long
  • Nuevo
RAM® Double Ball Mount with Two Large Round Plates - D Size Long

RAM® Double Ball Mount with Two Large Round Plates - D Size Long

RAM-D-101U-E

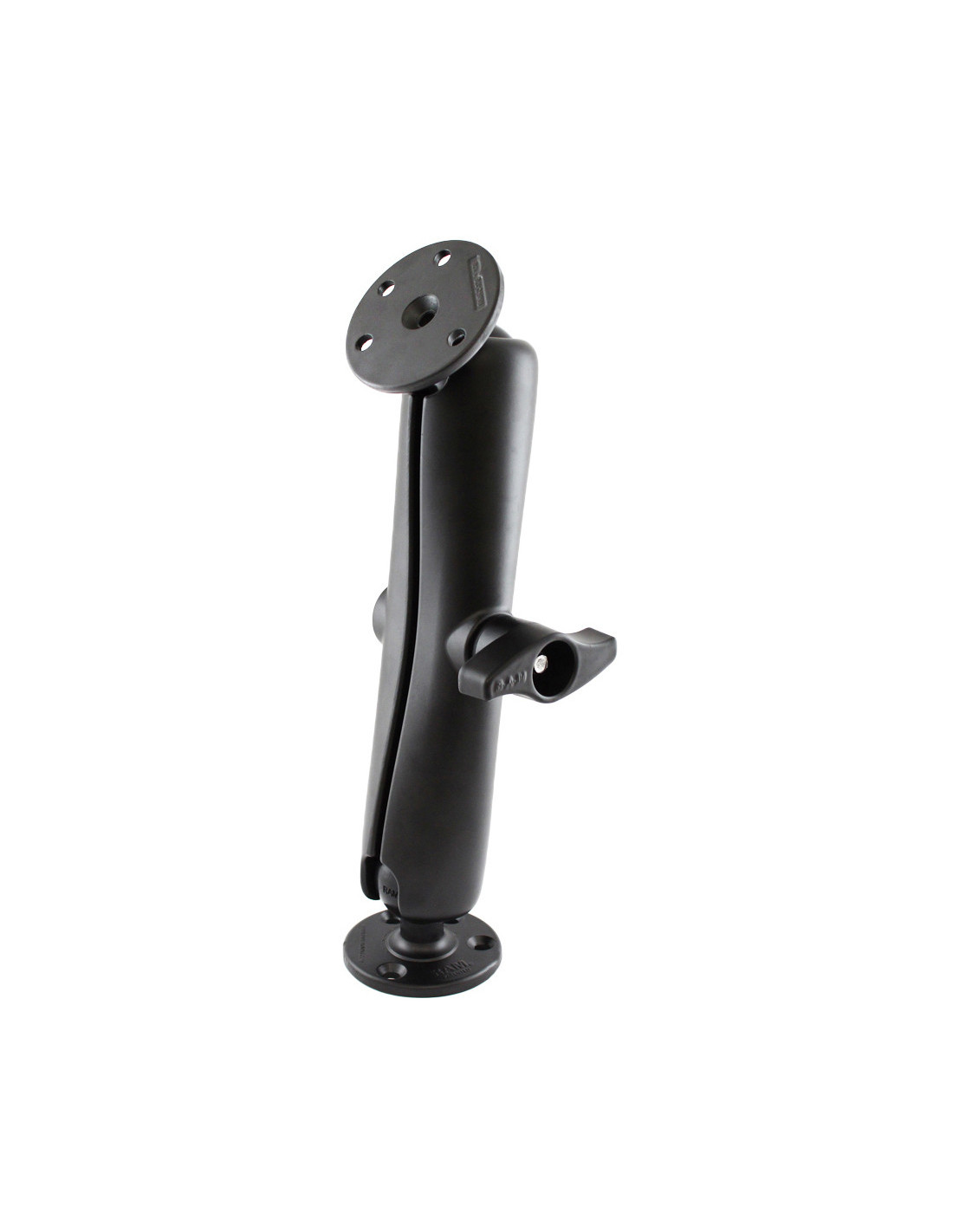

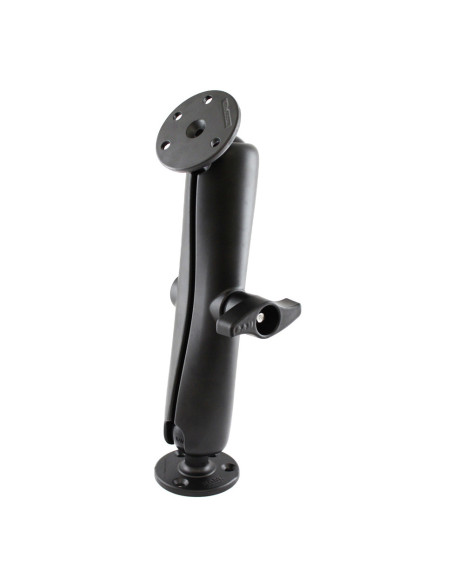

The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and LONG length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

Components
RAM-D-201U-E
RAM-D-202U
Product Type
Universal Mounts
Ball Size
D Size (2.25")
Hole Pattern
See Drawing
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Product Dimensions
Overall Height: 15.5"
Product Weight
5.20 lb
Socket To Socket Length
11.41"
Weight Capacity
Heavy-Duty Use: 5 lbs
Standard Use: 6 lbs
793442310157
