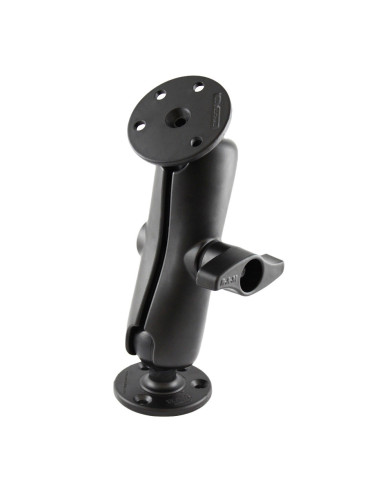

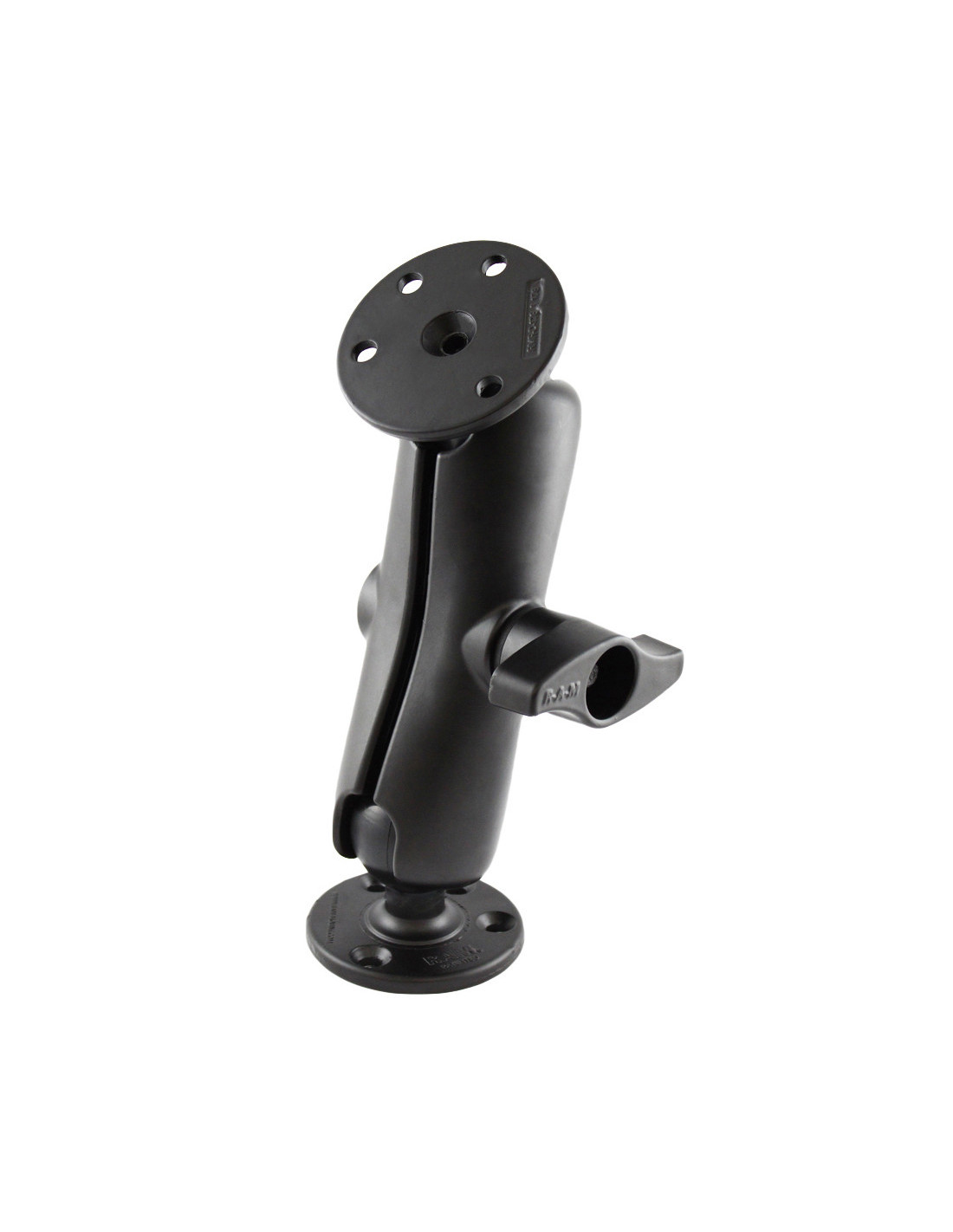

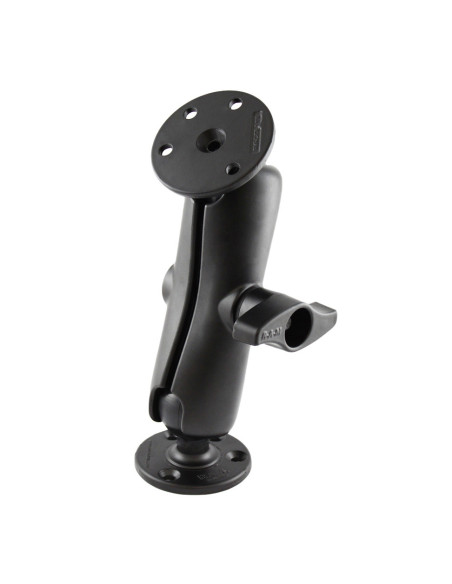

RAM® Double Ball Mount with Two Large Round Plates - D Size Medium
RAM-D-101U
The RAM-D-101U consists of (2 qty) 3.68" diameter round bases and STANDARD length double socket arm. The 3.68" diameter round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
- Components
- RAM-D-201U
RAM-D-202U - Product Type
- Universal Mounts
- Ball Size
- D Size (2.25")
- Hole Pattern
- See Drawing
- Materials
- Marine-grade aluminum
- Packaging Type
- Poly Bag
- Plate Size
- 3.68" Diameter
- Product Dimensions
- Overall Height: 11.125"
- Product Weight
- 3.95 lb
- Socket To Socket Length
- 6.88"
- Weight Capacity
- Heavy-Duty Use: 5 lbs
Standard Use: 6 lbs
793442201011
