RAM-B-400-A-UN12W-V7M-1

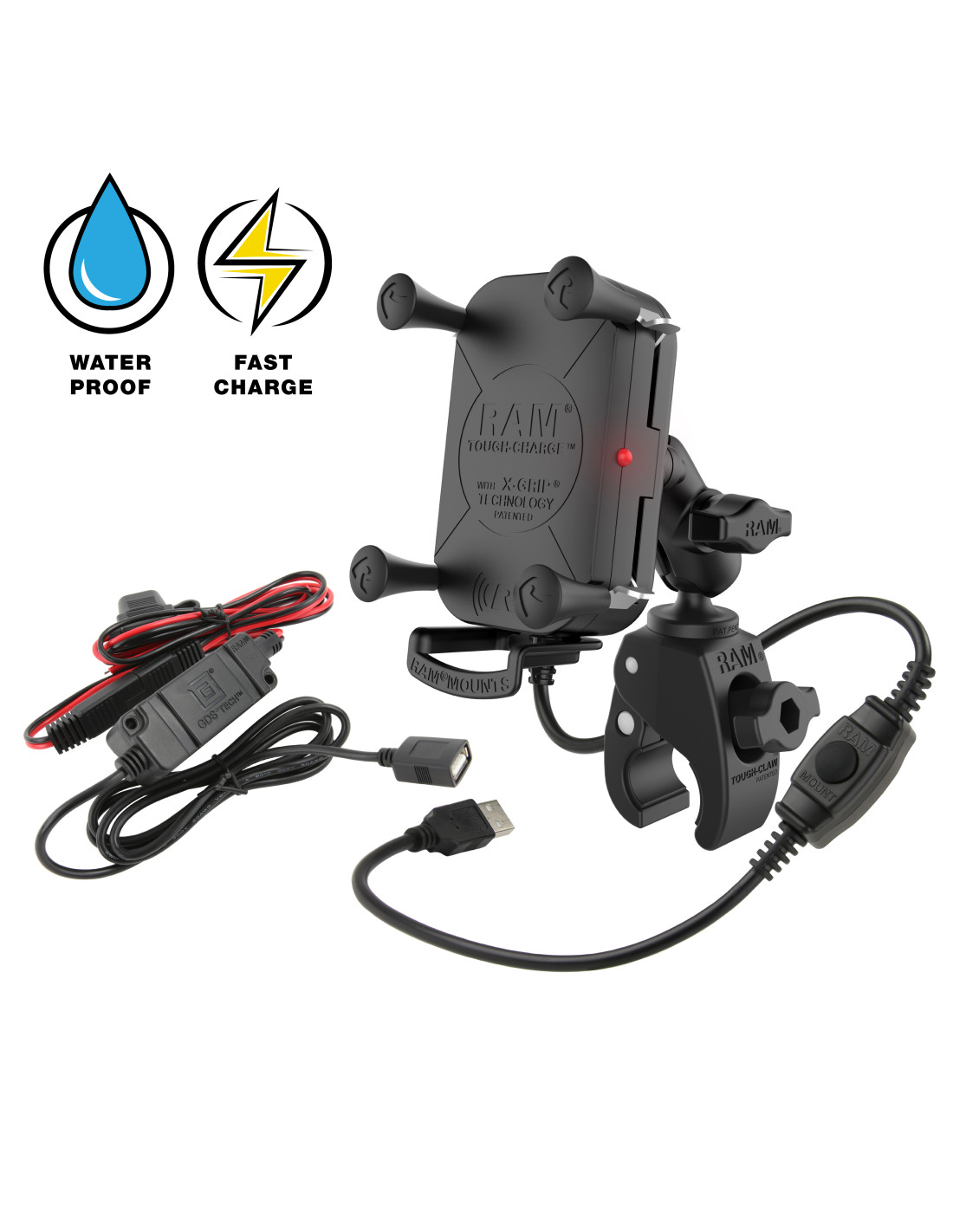

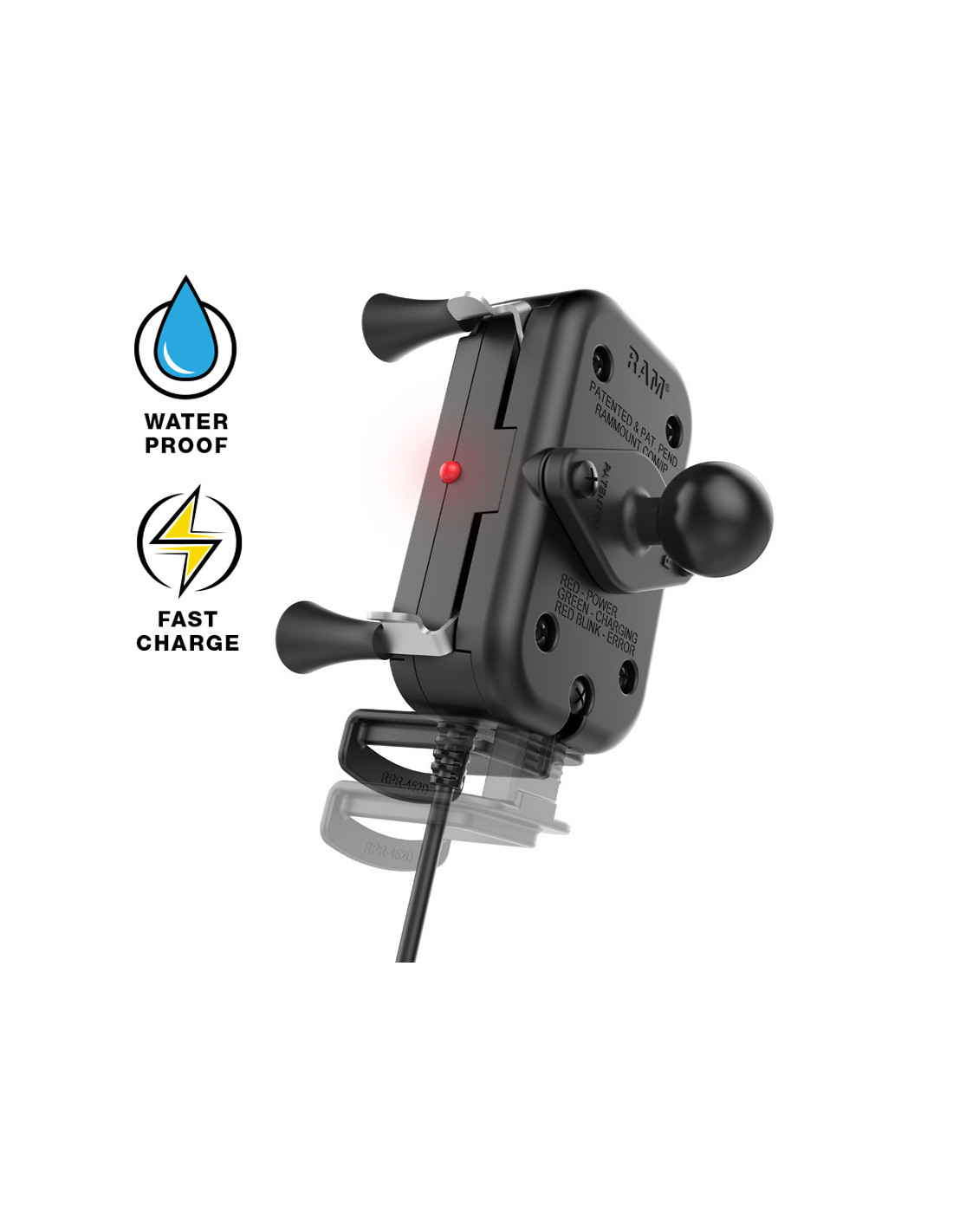

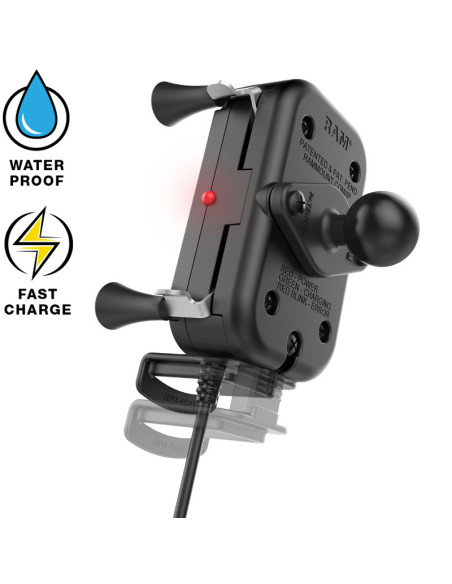

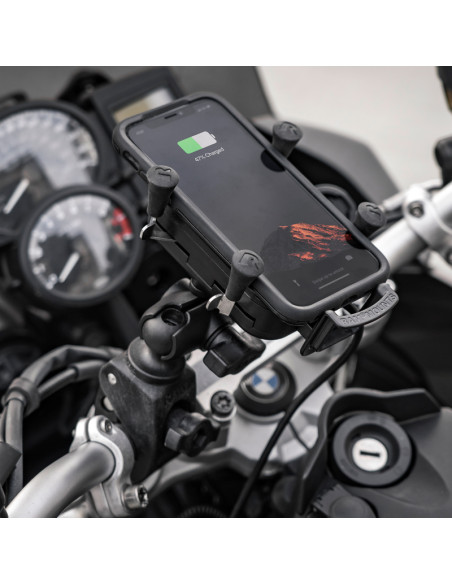

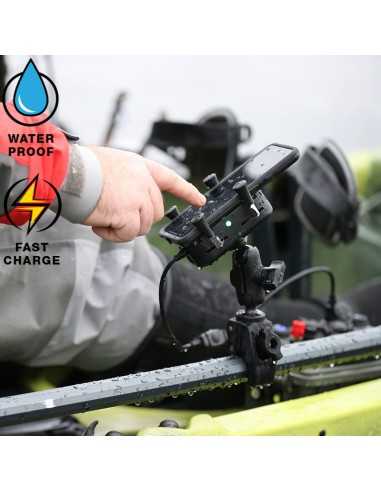

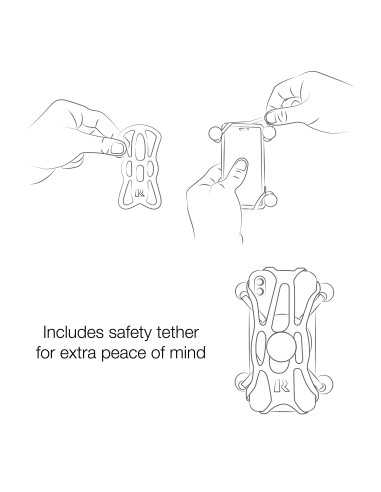

The RAM Tough-Charge 15W Wireless Charging Mount with Tough-Claw (RAM-B-400-A-UN12W-V7M-1) is the worlds first patented, waterproof, universal wireless charging cradle for phonesbuilt to handle rugged environments while keeping your device powered and accessible.Featuring the spring-loaded RAM X-Grip design, the cradles signature X arms expand and contract to securely hold nearly any smartphone while delivering reliable Qi wireless charging. Rubber-coated end caps on all four arms grip your device firmly, and the open-frame design keeps side buttons and ports unobstructed. To insert your phone, simply squeeze one side of the cradle, set your device in place, and release. This waterproof Qi charging cradle delivers consistent charging at virtually any orientation. For added confidence during aggressive riding or outdoor use, a device tether is included. A removable and adjustable support leg provides additional stability. With the Tough-Claw, you can quickly mount the charger to round, square, or irregular rails and bars ranging from 0.625 to 1.14 in diameter. The connected Type-A male pigtail includes an in-line power switch for turning the charging module on or off as needed. For in-vehicle setups, simply connect the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit also includes a hardwire charger for direct power integration. For open cockpit applications (i.e. motorcycles, ATVs, boats, etc.) apply silicone grease to the USB Type-A male & female connector to protect the connections and prevent corrosion. Failure to do so will void warranty.

  • Waterproof Qi compatible wireless phone charging cradle features spring-loaded RAM® X-Grip® technology and 15W maximum output

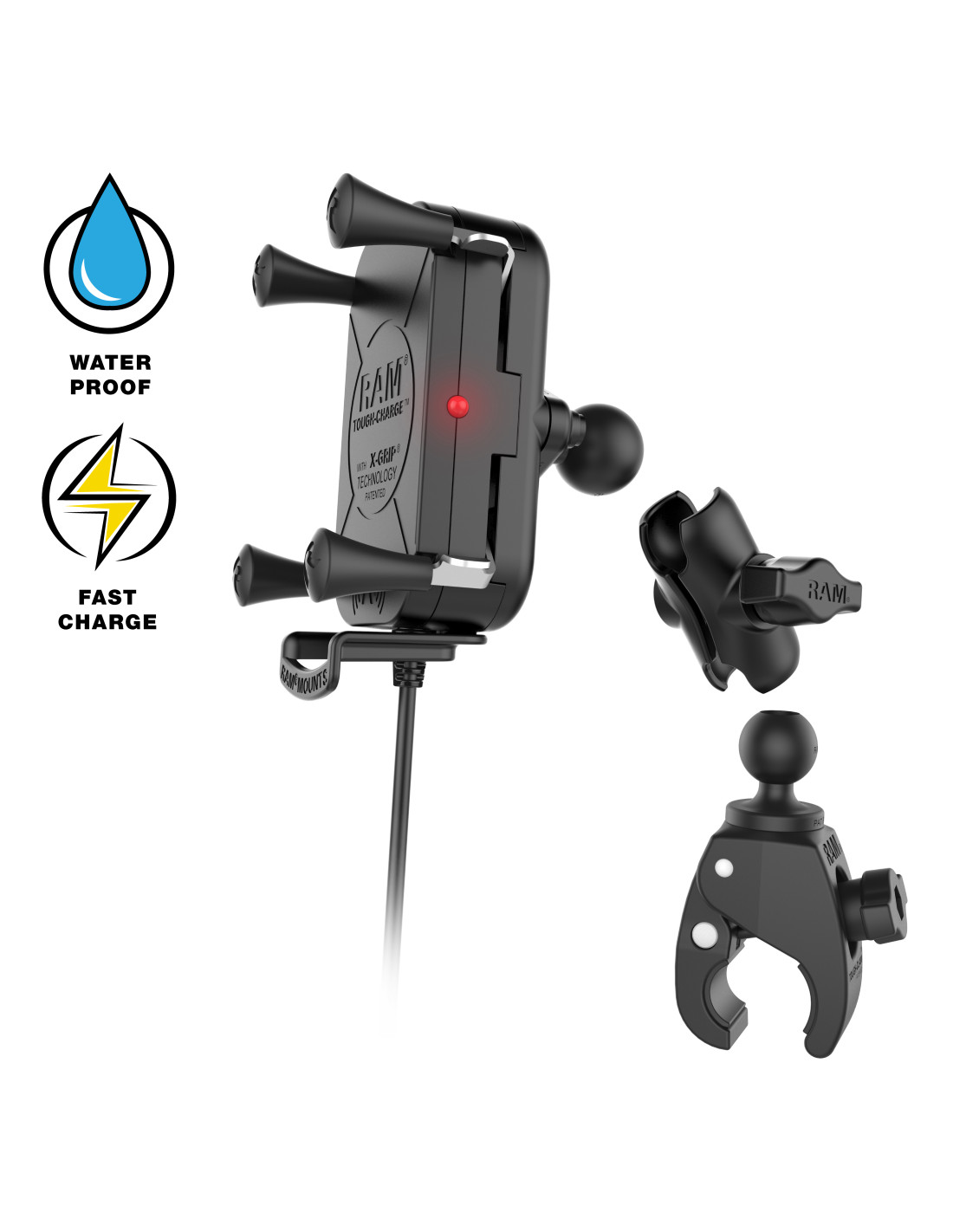

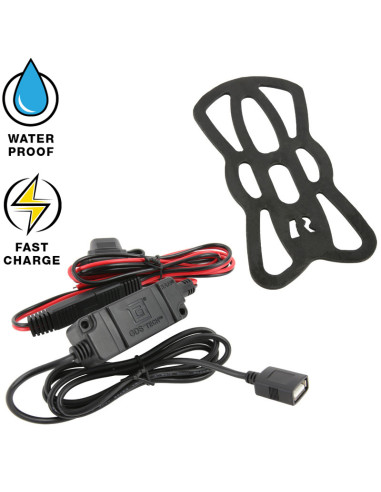

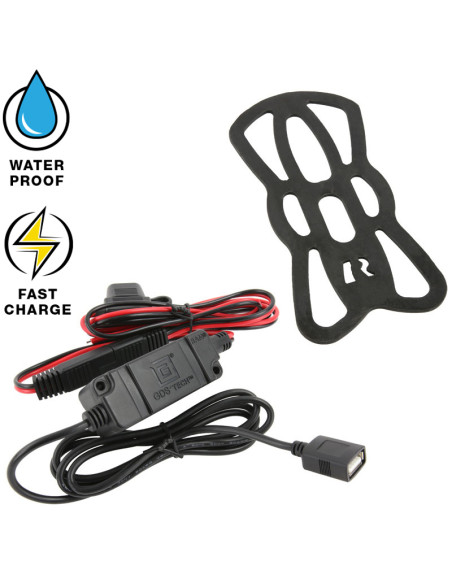

  • Kit includes wireless charging cradle, B size diamond ball base, short double socket arm, RAM® Tough-ClawT clamping base, and hardwire charger
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • RAM® Mounts backed by lifetime warranty, RAM® electronics backed by 1-year warranty with proof of purchase required

Components
RAM-B-201U-A
RAM-HOL-UN12WB-V7M-1
RAP-B-400U
Product Line
RAM® X-Grip® Tough-ClawT
Product Type
Phone Mounts
Ball Size
B Size (1")
Certifications
CE Certification
E-Mark Certification
FCC Certification
RCM Certification
Clamp Range
.625" - 1.14" diameter
Hardware Included
(1) Cradle Leg
(1) Cradle Leg Cover
(1) Glue Tube for Rubber Caps

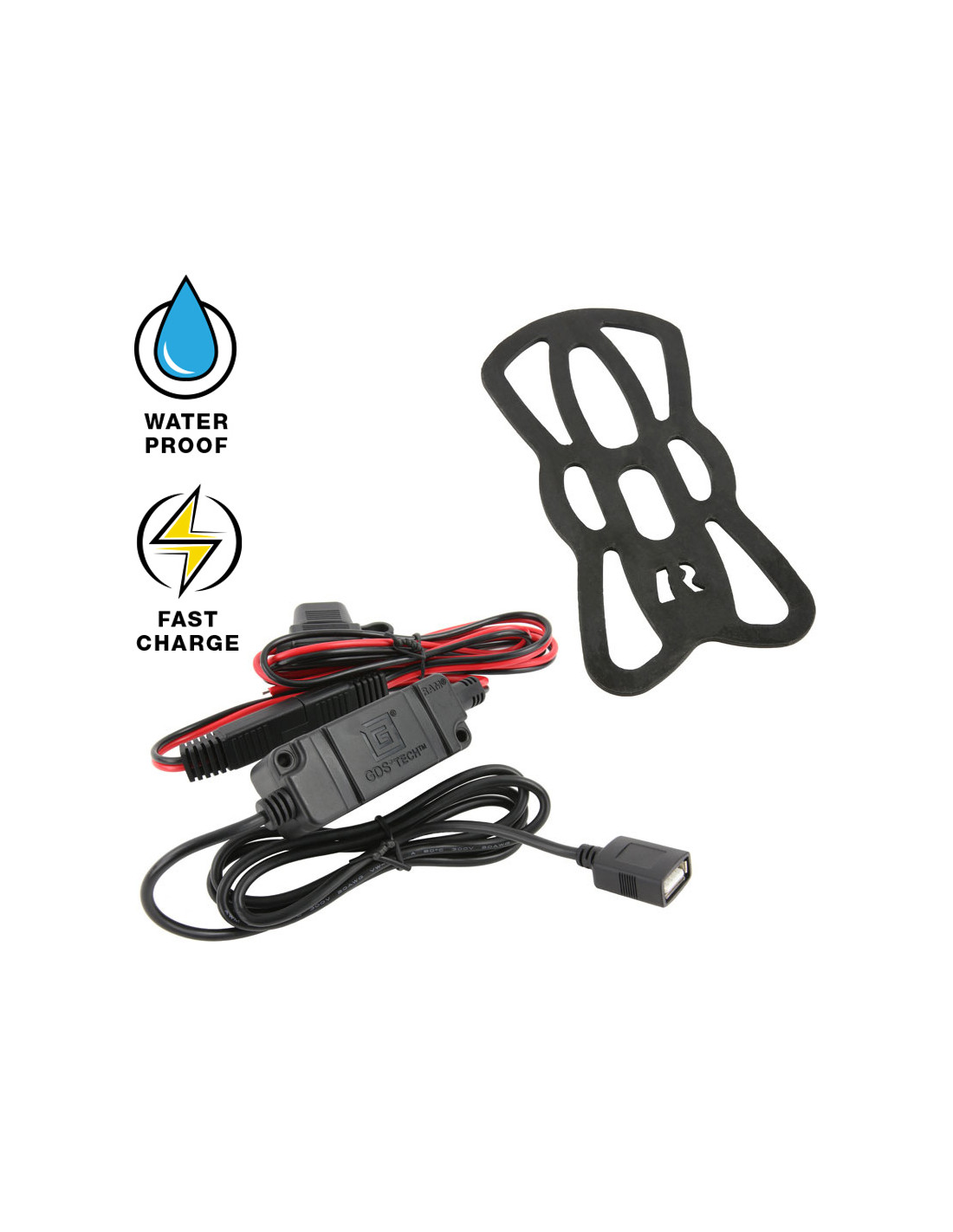

(1) Hardwire Charger with Cable

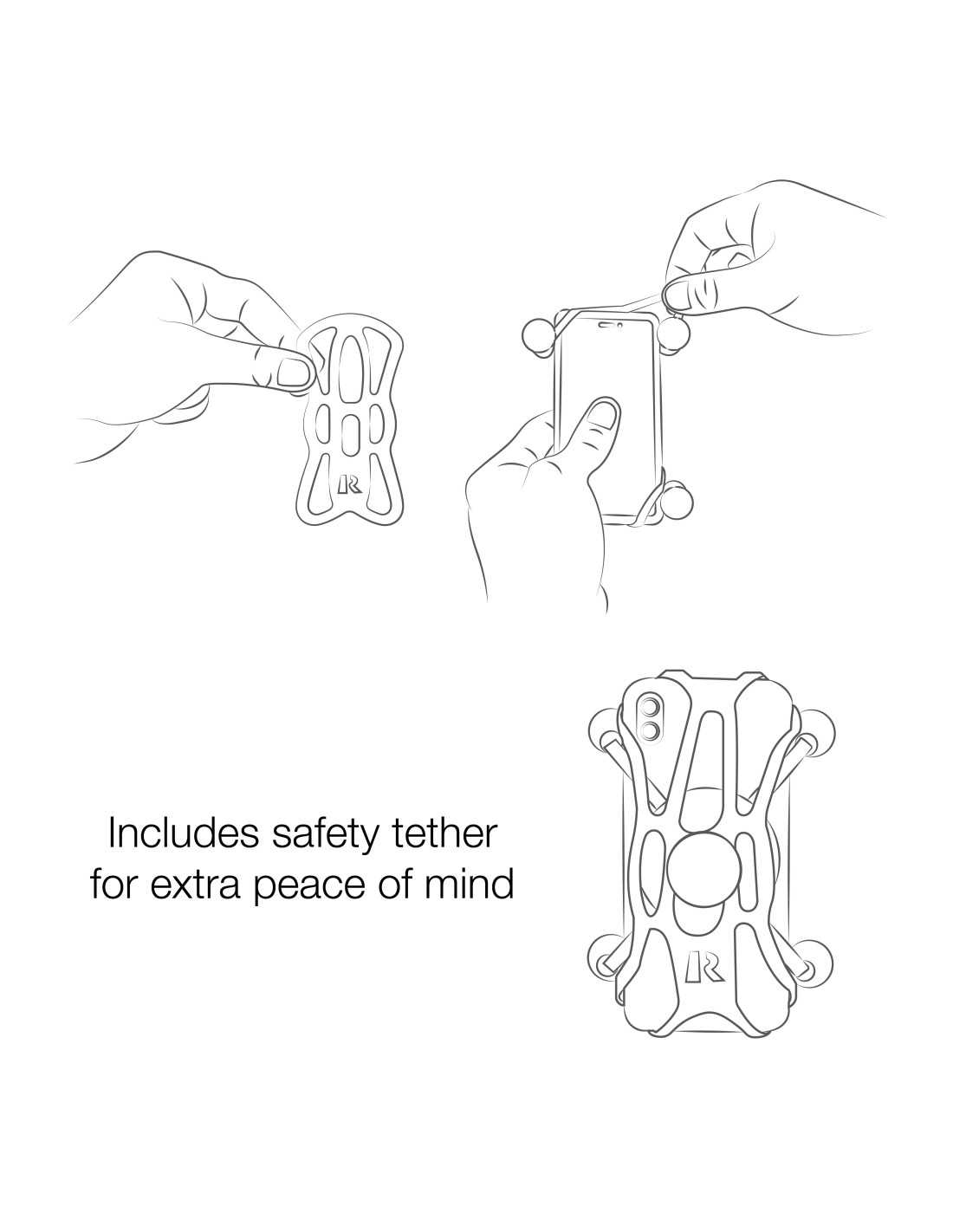

(1) Safety Tether

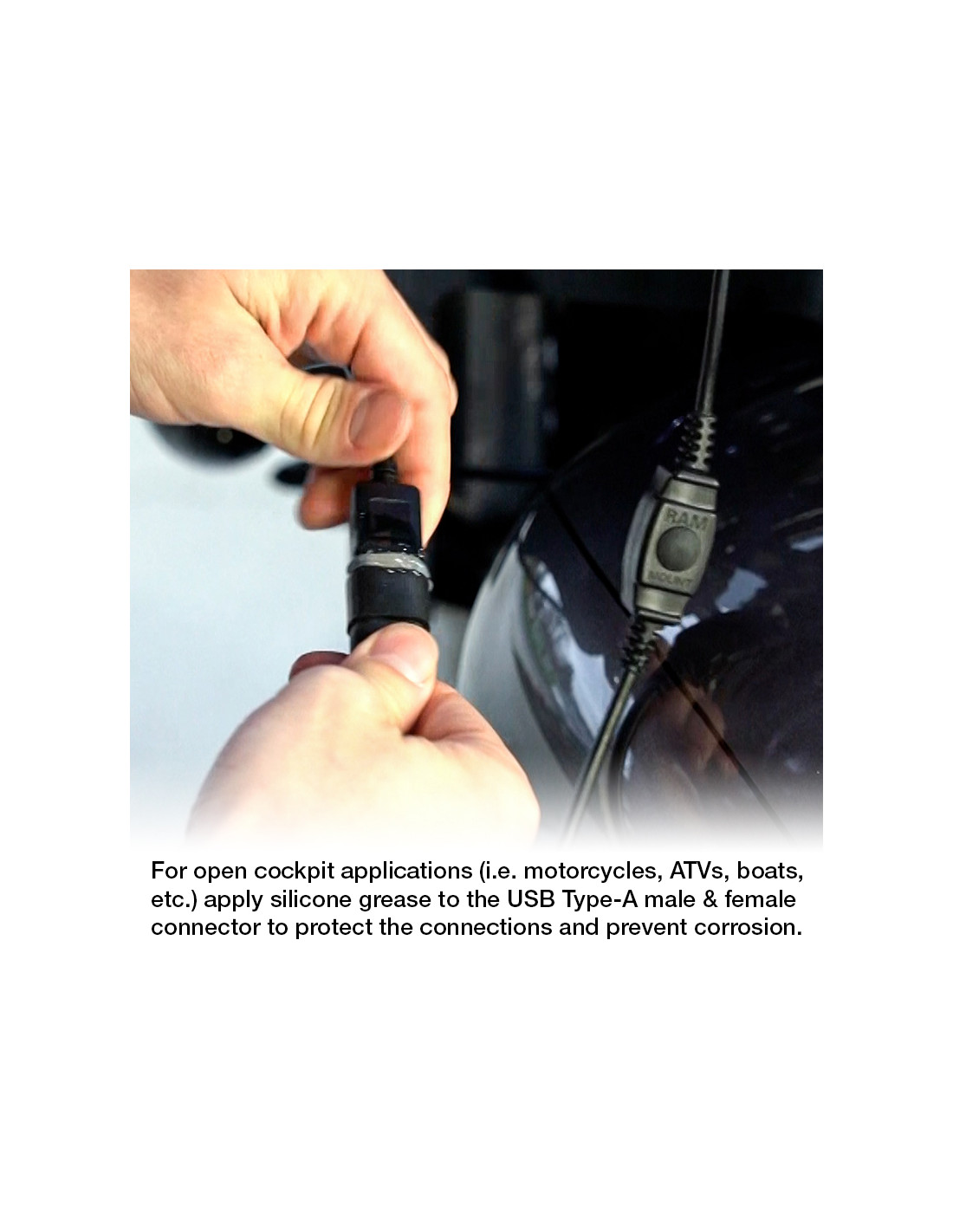

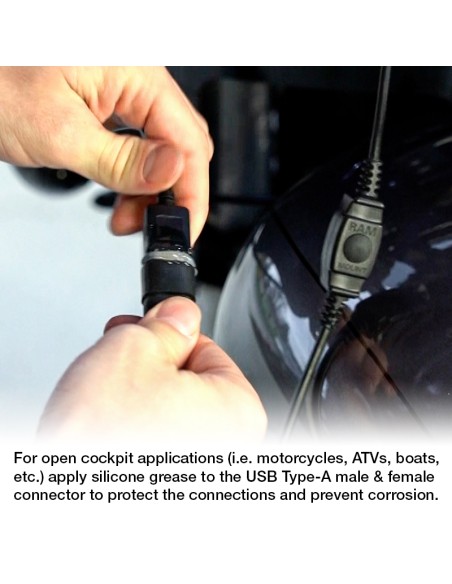

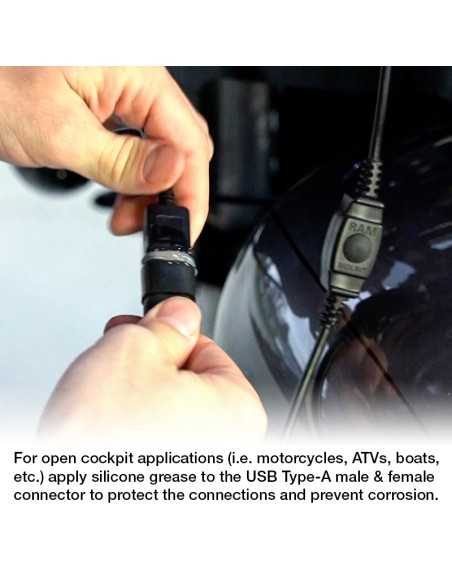

(1) Silicon sleeve for USB waterproof connection
(4) Large zip ties
(4) Small zip ties
Holder Dimensions
Depth Range: .875" max
Width Range: 2.375" - 3.25"
Materials
High strength composite
Stainless steel
Operating Temperature
0°C to +37.7°C
Packaging Type
Retail Box
Power Specifications
Compatible with QC2.0/QC3.0 power supplies
Conversion Efficiency: 85% Max
Input Power:5V-2A; 9V-1.67A
Maximum Case Thickness: 6mm
Output: 15W
Product Standard: WPC v.1.2.4
QI Compatible
Working Frequency: 110-205KHZ
Product Weight
1.81 lb
Regulatory
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Socket To Socket Length
1.75"
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
Device Compatibility
Apple iPhone 8
Apple iPhone 8 Plus
Apple iPhone 11
Apple iPhone 11 Pro
Apple iPhone 11 Pro Max
Apple iPhone SE
Apple iPhone X
Apple iPhone Xr
Apple iPhone Xs
Apple iPhone Xs Max
Blackberry Evolve X
Blackview BV9900
Blackview BV9900 Pro
Google Pixel 3
Google Pixel 3 XL
Google Pixel 4
Google Pixel 4 XL
Google Pixel 5
Google Pixel 6
Google Pixel 6 Pro
Google Pixel 7
Google Pixel 7 Pro
Google Pixel 8
Google Pixel 8 Pro
Google Pixel 9
Google Pixel 9 Pro
Google Pixel 9 Pro XL
Google Pixel 9a
Huawei Mate 20 Pro
Huawei P30 Pro
LG G6
LG G6+
LG G7 ThinQ
LG G8 ThinQ
LG G8S ThinQ
LG V30
LG V35 ThinQ
LG V40 ThinQ
LG V50 ThinQ
Nokia 8 Sirocco
Nokia 9 PureView
Razer Phone 2
Samsung Galaxy Note 5
Samsung Galaxy Note 8
Samsung Galaxy Note 9
Samsung Galaxy Note 10
Samsung Galaxy Note 10 Plus
Samsung Galaxy S6
Samsung Galaxy S6 Edge
Samsung Galaxy S6 Edge+
Samsung Galaxy S7
Samsung Galaxy S7 Active
Samsung Galaxy S7 Edge
Samsung Galaxy S8
Samsung Galaxy S8 Active
Samsung Galaxy S8+
Samsung Galaxy S9
Samsung Galaxy S9+
Samsung Galaxy S10
Samsung Galaxy S10 5G
Samsung Galaxy S10+
Samsung Galaxy S10e
Samsung Galaxy S20
Samsung Galaxy S20 Ultra 5G
Samsung Galaxy S20+
Samsung Galaxy S21 5G
Samsung Galaxy S21 Ultra 5G
Samsung Galaxy S21+ 5G
Samsung Galaxy S22 5G
Samsung Galaxy S22 Ultra 5G
Samsung Galaxy S22+ 5G
Samsung Galaxy S23
Samsung Galaxy S23 Ultra
Samsung Galaxy S23+
Samsung Galaxy S24
Samsung Galaxy S24 Ultra
Samsung Galaxy S24+
Samsung Galaxy S25
Samsung Galaxy S25 Ultra
Samsung Galaxy S25+
Sony Xperia XZ2
Sony Xperia XZ2 Compact
Sony Xperia XZ3
Xiaomi Mi 9
Xiaomi Mi 9 Explorer
Xiaomi Mi Mix 2S
Xiaomi Mi Mix 3
ZTE Axon 9 Pro
ZTE Axon 10 Pro
793442900105
