RAM-B-231U

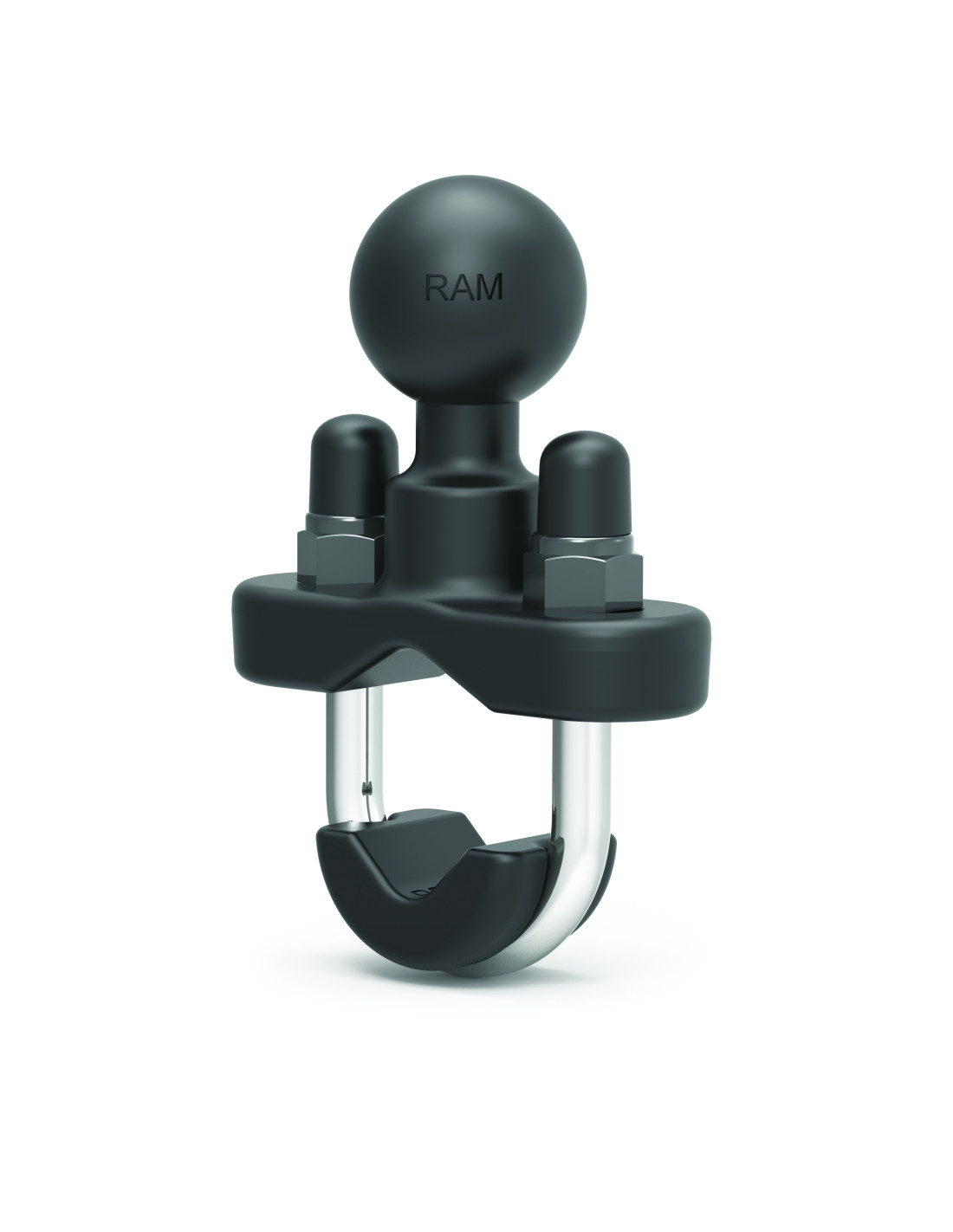

The RAM Handlebar U-Bolt Base (RAM-B-231U) is a rugged mounting base designed for rails 0.5" to 1" in diameter, with an integrated B size rubber ball. This base is compatible with all B size socket arms. The stainless steel u-bolt is secured to rails or handlebars by two nylock nuts and comes with an optional composite adapter that narrows the attachment to the minimum compatible rail width of .5". Cover the end of the u-bolt with the included two rubber caps, ensuring no clothing or equipment get snagged.

  • Zinc-coated metal U-bolt base with 1" rubber ball is designed to sit at right angles to mounting rail; includes black cover caps for exposed ends of the U-bolt
  • Compatible with any B size RAM® Mounts component; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Components
RAM-B-231NHU
RAM-HAR-SU251
Product Type
Components
Vehicle Type
Dirt Bike
Motorcycle
Ball Size
B Size (1")
Clamp Range
.5" - 1" diameter
Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) U-Bolt Spacer
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Product Weight
0.22 lb
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
793442002229
