RAM-B-231-2

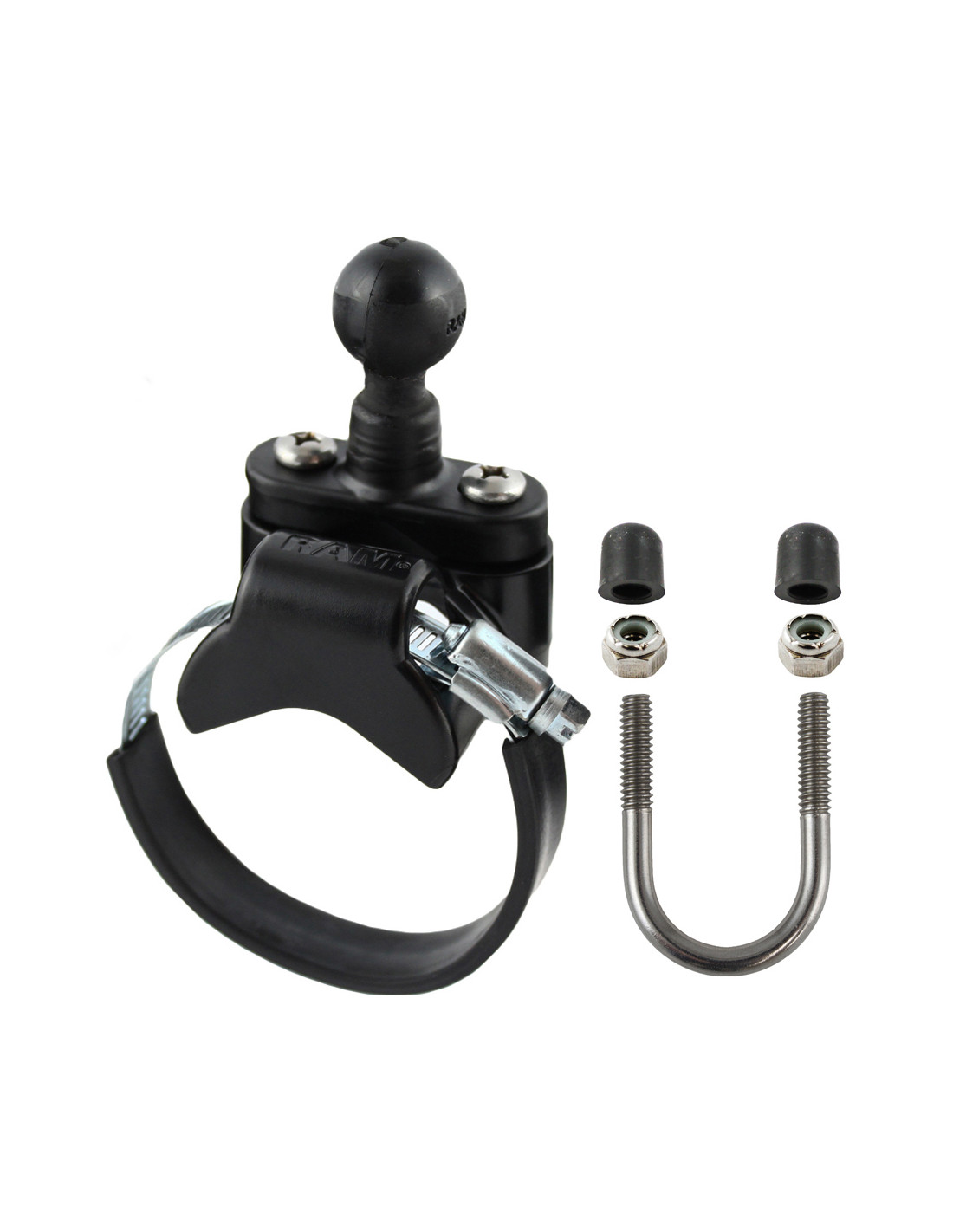

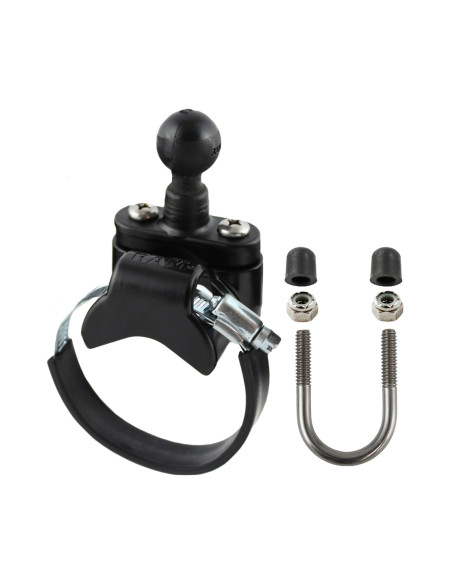

The RAM-B-231-2 consists of a 1" diameter rubber ball connected at right angles to a base that contains a flexible metal strap. The strap base tightening screw is encased in a compact housing for a clean, safe finish. The strap is long enough to wrap around handle bar posts found on most ATV, Side By Side, Snowmobiles, Motorcycles and any other applications you can think of.

Components
RAM-B-231NHU
RAM-HAR-SU251
Product Type
Components
Vehicle Type
ATV
Motorcycle
UTV
Ball Size
B Size (1")
Clamp Range

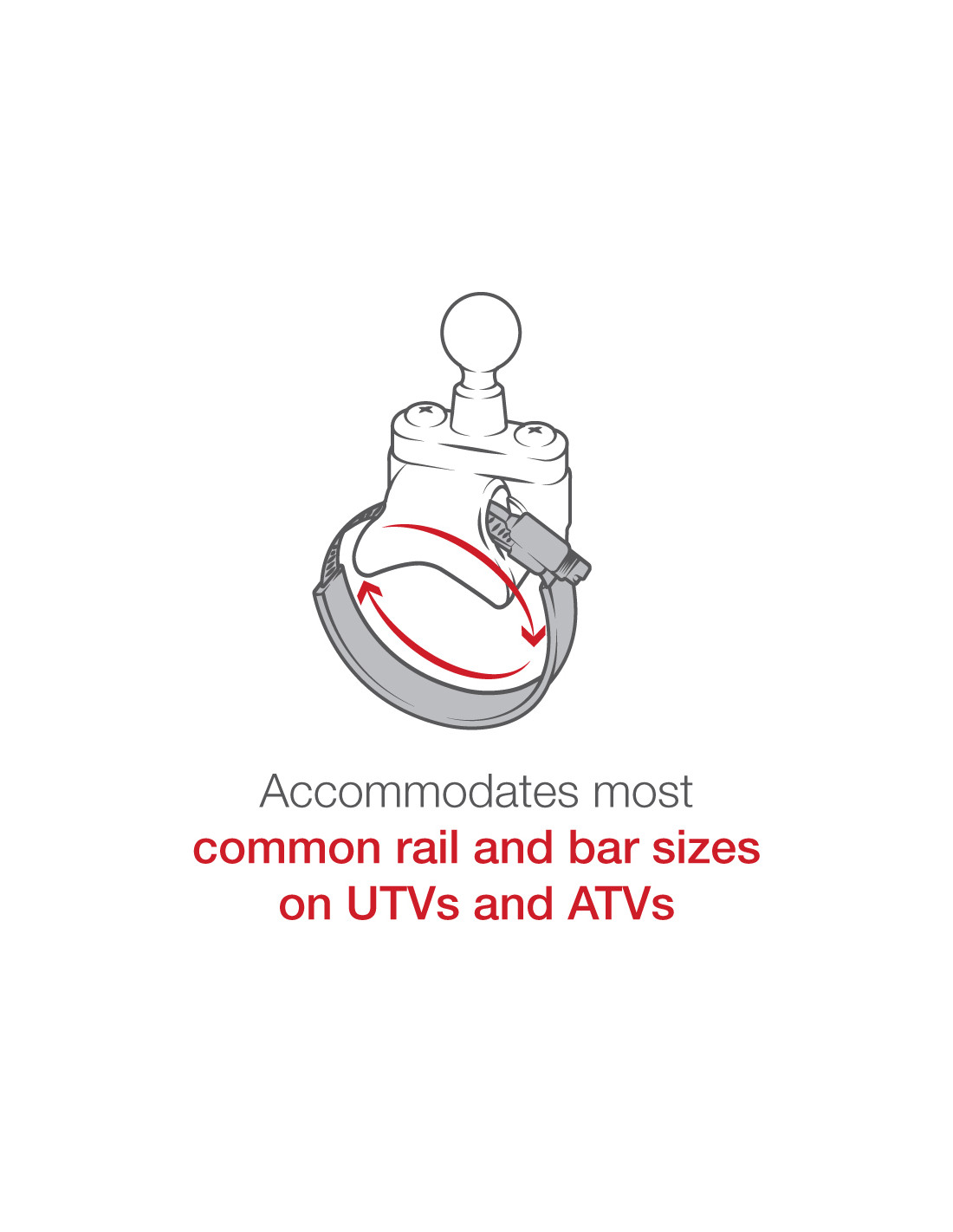

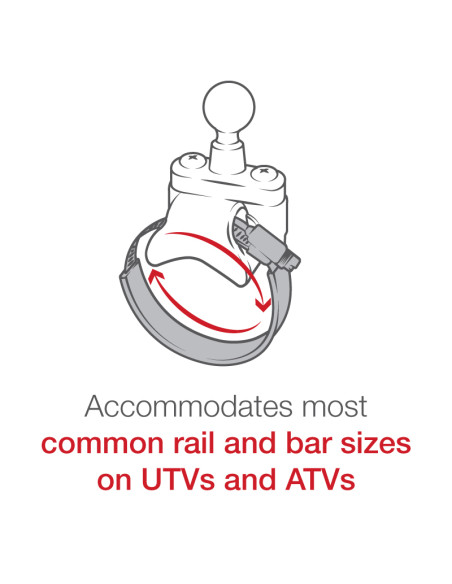

Strap Clamp: 1.57" - 3.15" diameter
U-Bolt: .5" - 1" diameter
Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 6" Rubber Strip
(1) Strap Clamp Adapter
(1) U-Bolt Spacer
(1) Zinc Worm Drive Strap Clamp
(2) 1/4"-20 Nylock Nuts
(2) 1/4"-20 x 1" Machine Screws
(2) Rubber Caps
Materials
Marine-grade aluminum
High strength composite
Packaging Type
Retail Bag
Product Weight
0.42 lb
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
793442905650
